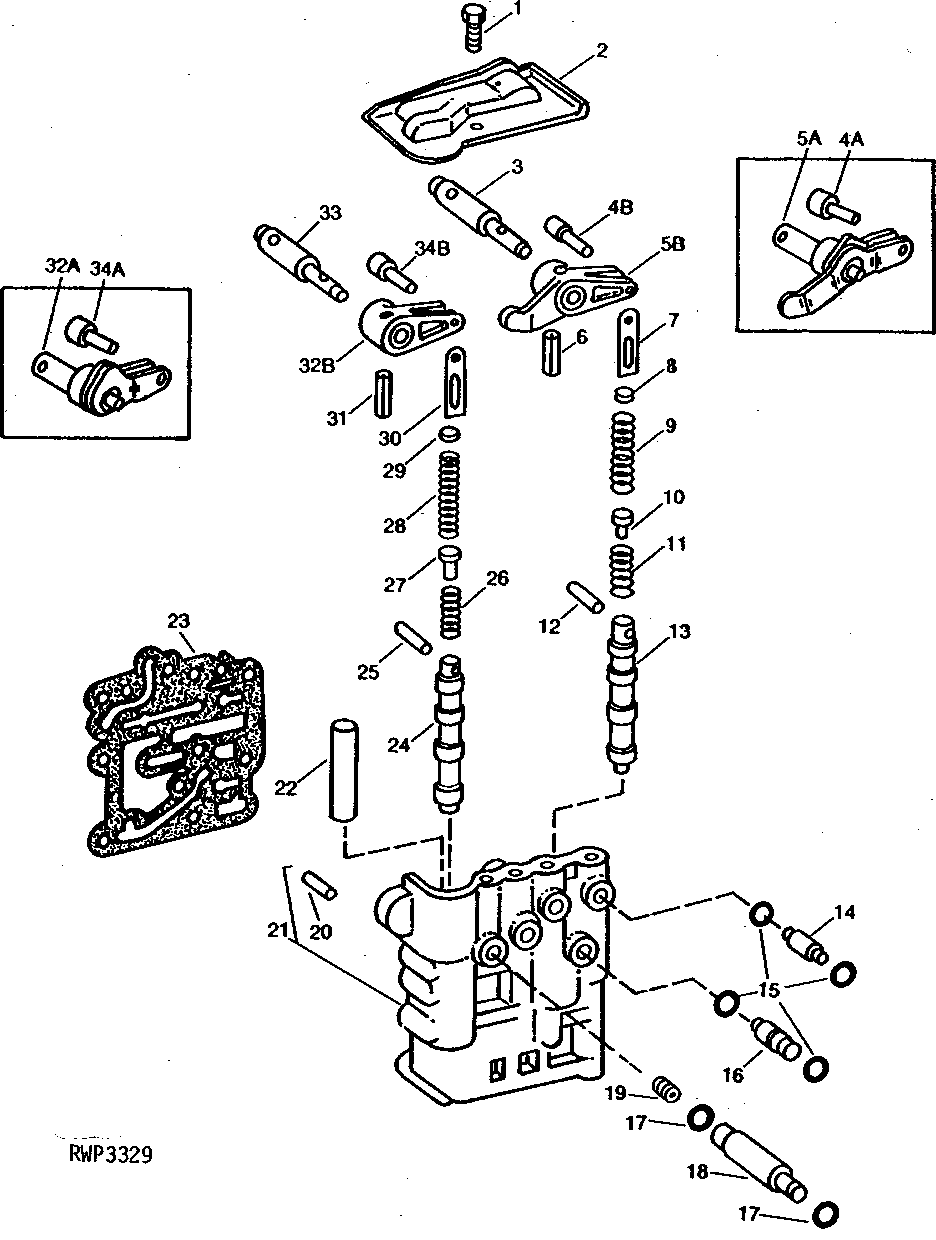

CLUTCH VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30165	1	Cap Screw	-
2	R53268	1	Guard	-
3	R63052	1	Shaft	(A) (ALSO ORDER R62042, R58941 AND 34H313) (SUB FOR R61939 OR R62041)
6	34H313	1	Spring Pin	(A) 1/4" X 1-1/8"
6	34H328	1	Spring Pin	(A) 5/16" X 1-1/8"
7	R52666	1	Link	(A)
8	R52665	1	Disk	(A)
9	R52446	1	Spring	(A)
10	R52448	1	Pin	(A)
11	R52447	1	SPRING	(A)
12	R53076	1	Needle Roller	(A)
12	34H268	1	Spring Pin	5/32" X 1-1/4"
13	R51856	1	Valve	(A)
13	R54383	1	Plug	(LESS PTO)
14	R50883	4	Adapter Fitting	(2 USED LESS PTO)
14	R52329	3	Adapter Fitting	(2 USED LESS PTO)
15	R26286	8	O-Ring	(4 USED LESS PTO)
16	R50883	1	Adapter Fitting	-
17	R26286	2	O-Ring	(QUAD-RANGE)
18	R54588	1	Adapter Fitting	(QUAD-RANGE)
19	15H558	1	Pipe Plug	1/8", (SYNCRO-RANGE) (SUB FOR R21630)
20	R38295	2	Needle Roller	-
21	AR71960	1	HOUSING	(MARKED R51855 OR R59597) (ALSO ORDER R99386) (SUB FOR AR61572) (SUB AR102797)
21	R54383	1	Plug	(LESS PTO)
21	34H268	1	Spring Pin	5/32" X 1-1/4"
22	R52900	1	Quick Lock Pin	(A)
23	R99386	1	GASKET	(SUB FOR R51857 OR R59598)
24	R51856	1	Valve	-
24	R62724	1	Valve	-
25	R53076	1	Needle Roller	-
26	R52447	1	SPRING	-
26	R63849	1	Spring	(SUB FOR R62727)
27	R52448	1	Pin	-
28	R62726	1	Spring	-
28	R52446	1	Spring	-
29	R52665	1	Disk	-
30	R52666	1	Link	-
30	R62725	1	Link	-
31	34H328	1	Spring Pin	5/16" X 1-1/8"
31	34H313	1	Spring Pin	1/4" X 1-1/8"
33	R63052	1	Shaft	(ALSO ORDER R62043, R58941 AND 34H313) (SUB FOR R58940 OR R62041)
4A	R33145	1	PIN	(A)
4B	R58941	1	Pin Fastener	(A)
5A	AR54527	1	SHAFT	(A) (SUB R63052, R67981, R58941 AND 34H313)
5B	R67981	1	Arm	(A) (ALSO ORDER R63052, R58941 AND 34H313) (SUB FOR R58942 OR R62042)
32A	AR54526	1	SHAFT	(SUB R62043, R63052, R58941 AND 34H313)
32B	R62043	1	Arm	(ALSO ORDER R63052, R58941 AND 34H313) (SUB FOR R58939)
34A	R33145	1	PIN	-
34B	R58941	1	Pin Fastener	-

CLUTCH VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B20]
