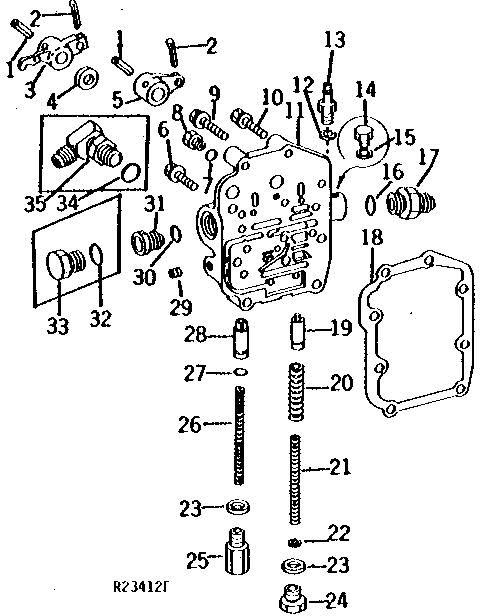

CLUTCH OIL PRESSURE REGULATING VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H331	2	Spring Pin	5/16" X 1-1/2"
2	11M7081	2	Cotter Pin	0.098" X 0.787"
2	T12808	1	SNAP RING	(SUB R72655)
2	34H247	2	Spring Pin	1/8" X 3/4"
2	24H1302	2	Washer	13/32" X 11/16" X 0.035"
3	R50333	1	ARM	-
3	R55391	1	Arm	-
4	AF2907R	2	Seal	-
5	R50334	1	Arm	-
5	R55392	1	Arm	-
5	R50334	1	Arm	-
6	19H3779	6	Screw	(SUB FOR R52904)
7	R26286	4	O-Ring	-
8	R27094	4	Drain Plug	-
9	R52907	2	SCREW	-
9	19H3779	2	Screw	(SUB FOR R52904)
10	19H3727	8	Screw	(SUB FOR R52906)
10	19H3727	5	Screw	(SUB FOR R52906)
10	19H1731	3	Cap Screw	3/8" X 1"
10	24H1298	3	Washer	3/8" X 5/8" X 0.032"
11	R51858	1	HOUSING	(SUB R73679, 19H3779, (3) 19H1731 AND (3) 24H1298)
11	R35286	1	PLUG	(LESS PTO)
11	R56257	1	HOUSING	(SUB R27003, R27094, 19H3779, R66623, (3) 19H1731 AND (3) 24H1298)
11	R66623	1	HOUSING	(ALSO ORDER R27094 AND R27003) (SUB FOR R57092 OR R57743)
12	R27003	1	Washer	-
13	R65684	1	FITTING	(SUB FOR R55525)
14	R27094	1	Drain Plug	-
15	R27003	1	Washer	-
16	F3171R	3	O-Ring	-
16	F3171R	1	O-Ring	-
17	R27267	1	Fitting	-
18	R94286	1	Gasket	(SUB FOR R52905)
19	R57559	1	VALVE	(SUB FOR R33162)
20	R52903	1	SPRING	-
21	R52902	1	SPRING	(SUB R71867)
22	R56351	1	SOLID SHIM	-
23	R1742R	2	WASHER	-
24	R52589	1	FITTING PLUG	-
25	R51577	1	FITTING PLUG	-
26	R57585	1	SPRING	-
27	R33259	1	O-Ring	(VALVE) (USE WITH R57560)
28	R57560	1	VALVE	(ALSO ORDER R33259) (SUB FOR R54042)
29	15H558	1	Pipe Plug	1/8", (SUB FOR R21630)
30	B2762R	1	O-Ring	-
31	R76493	1	FITTING	(SUB FOR R56258)
32	F3171R	1	O-Ring	-
33	R27175	1	Drain Plug	-
34	F3171R	1	O-Ring	-
35	AT32331	1	Elbow Fitting	90°, (SUB FOR AR26723)

CLUTCH OIL PRESSURE REGULATING VALVE HOUSING AND VALVES (QUAD-RANGE AND SYNCRO-RANGE) [03B18]
