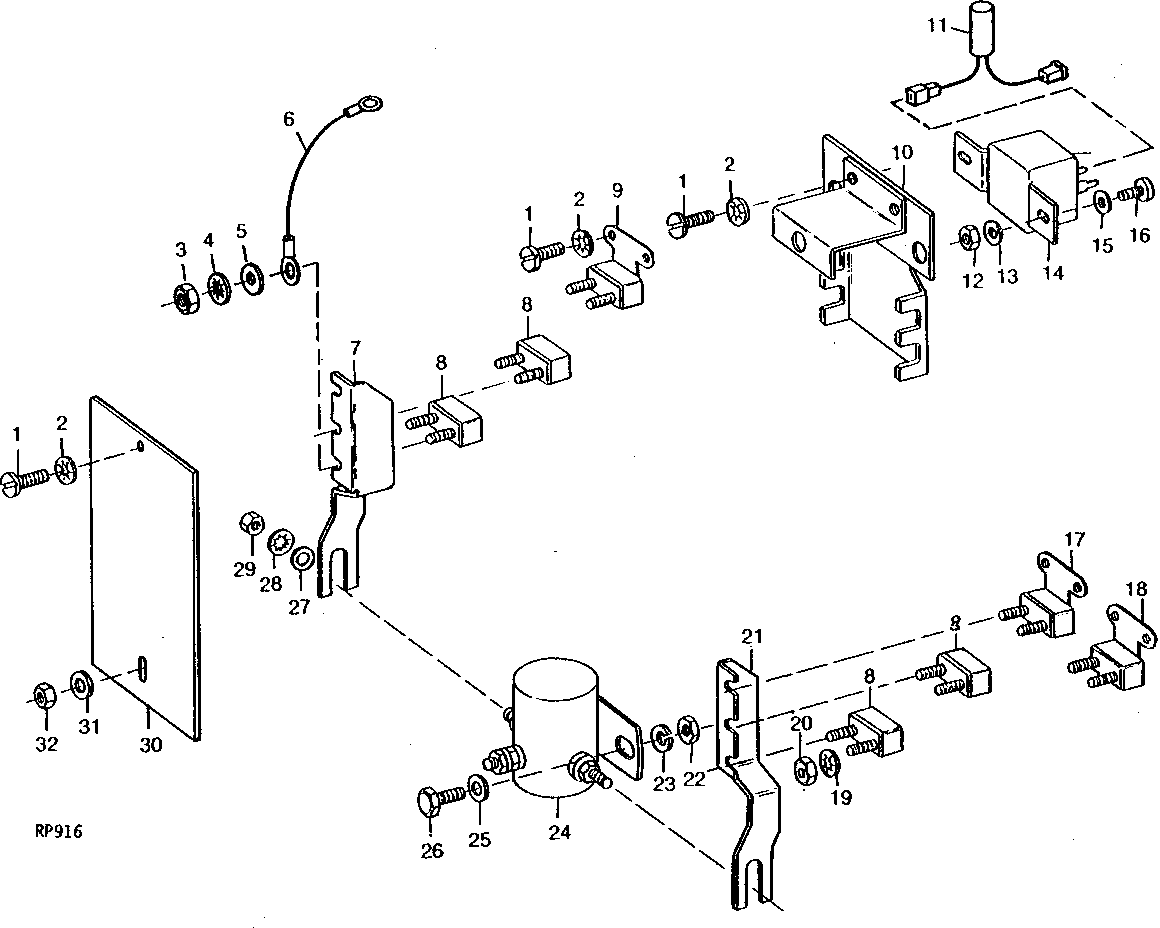

CIRCUIT BREAKERS, RELAY AND WARNING LAMP FLASHER (TRACTOR SERIAL NO. -027226) [02B24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1301	5	SCREW	0.190" X 1/2"
2	12M7060	5	Washer	0.209"
3	14H631	6	Nut	0.190"
4	12M7060	6	Washer	0.209"
5	24H1283	6	Washer	7/32" X 1/2" X 0.049"
6	AR56213	1	WIRING LEAD	BUSSBAR TO CHARGING CIRCUIT HARNESS
6	AR72391	1	WIRING LEAD	STARTER RELAY TO BUSSBAR
7	R50044	1	FUSE HOLDER	-
8	AR56671	4	CIRCUIT BREAKER	20 AMP
9	AR55649	1	CIRCUIT BREAKER	10 AMP
10	AR58170	1	RETAINER	-
11	AR61861	1	CAPACITOR	(LESS TURN SIGNALS)
12	14H631	2	Nut	0.190"
13	12M7060	2	Washer	0.209"
14	AR48594	1	Flasher	(LESS TURN SIGNALS)
14	AR41694	1	WIRING LEAD	(FOR NO FLASHER OPERATION) (NO LONGER AVAILABLE)
15	24H1283	2	Washer	7/32" X 1/2" X 0.049"
16	21H1295	2	Screw	0.190" X 5/8"
17	AR28403	1	CIRCUIT BREAKER	20 AMP
18	AR55649	1	CIRCUIT BREAKER	10 AMP (POWER FRONT WHEEL DRIVE)
19	12M7060	6	Washer	0.209"
20	14H631	6	Nut	0.190"
21	R50046	1	FUSE HOLDER	-
22	14H786	2	Nut	1/4"
23	12H302	2	Lock Washer	1/4"
24	AR46334	1	RELAY	(SUB FOR AR54484) (SUB AR91166, THIS APPLICATION)
25	24H1287	2	Washer	9/32" X 5/8" X 0.065"
26	19H1919	1	Cap Screw	1/4" X 5/8"
27	24H1136	2	Washer	11/32" X 11/16" X 0.065"
28	12H303	2	Lock Washer	5/16"
29	14H650	2	Nut	5/16"
30	R52756	1	COVER	-
31	T11651	1	SHIM	-
32	14H631	1	Nut	0.190"

CIRCUIT BREAKERS, RELAY AND WARNING LAMP FLASHER (TRACTOR SERIAL NO. -027226) [02B24]
