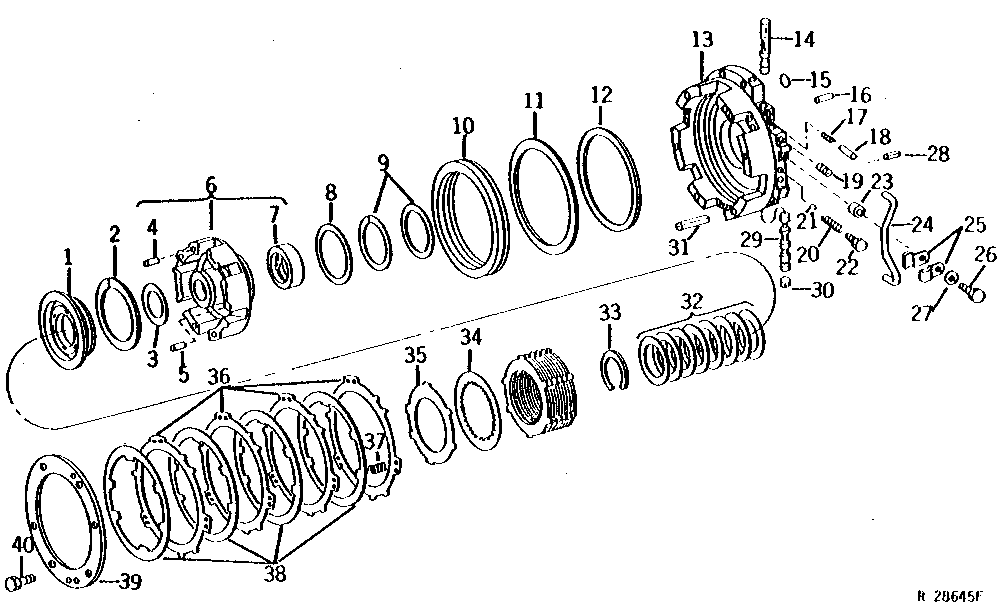

BRAKE PISTON HOUSING AND CLUTCH DRUM (QUAD-RANGE) (TRACTOR SERIAL NO. 025361- ) [03C11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R59746	1	Piston	-
2	R39280	1	Piston Ring	-
3	R39304	1	Washer	-
4	R38295	2	Needle Roller	-
5	R38295	1	Needle Roller	-
6	AR80119	1	DRUM	(MARKED R64384) (SUB AR78256) (ALSO ORDER AR78252, (6) R47074 AND (6) R57115)
7	R50222	1	Bushing	-
8	R50349	1	Washer	-
9	R39322	2	Ring	-
10	R59745	1	PISTON	(SUB R79525)
11	R59137	1	Washer	-
12	R57558	1	Packing	-
13	AR77523	1	HOUSING	(MARKED R62837) (SUB AR82373, R65230 AND R65231) (INCLUDES PLUGS AND PINS)
13	AR82373	1	Housing	(MARKED R65225) (INCLUDES PLUGS AND PINS)
14	R62840	1	VALVE	(SUB R65229)
14	R65229	1	Control Valve	-
15	R60038	1	Packing	-
16	R26650	1	Dowel Pin	-
17	R62842	1	Spring	-
18	R67315	1	Pin	(SUB FOR R62843)
19	R21629	1	PIPE PLUG	(SUB 15H560) (6 USED WITH R62837) (5 USED WITH R62839 OR R65225)
19	15H558	1	Pipe Plug	1/8", (SUB FOR R21630) (3 USED WITH R62837 OR R65225) (2 USED WITH R62839)
20	R65230	1	Spring	(SUB R67306, THIS APPLICATION)
21	400R	1	Ball	6MM (1/4")
22	R65231	1	Screw	-
23	28H1519	1	Washer	0.493" X 0.675" X 3/8"
24	R55234	1	TUBE	(SUB R78265, R60524, R112876 AND 28H1518)
25	R42357	2	CLAMP	-
26	R41041	1	CAP SCREW	-
27	24H1051	1	Washer	13/32" X 13/16" X 0.065"
28	34H249	1	Spring Pin	1/8" X 7/8"
29	R62841	1	Valve	-
30	R53050	1	PIN FASTENER	-
31	34H188	6	Spring Pin	5/16" X 1-3/4"
32	R50348	6	Disk Spring	-
33	R39299	1	Snap Ring	-
34	RE29816	4	Disk	(SUB FOR AR71561 OR AR83798)
35	R39259	5	CLUTCH PLATE	-
36	R50152	4	Plate	-
37	R59744	6	Spring	-
38	AR71560	3	DISK WITH INNER SPLINE	(SUB RE29815)
39	R50153	1	PLATE	-
40	R30165	6	Cap Screw	-

BRAKE PISTON HOUSING AND CLUTCH DRUM (QUAD-RANGE) (TRACTOR SERIAL NO. 025361- ) [03C11]
