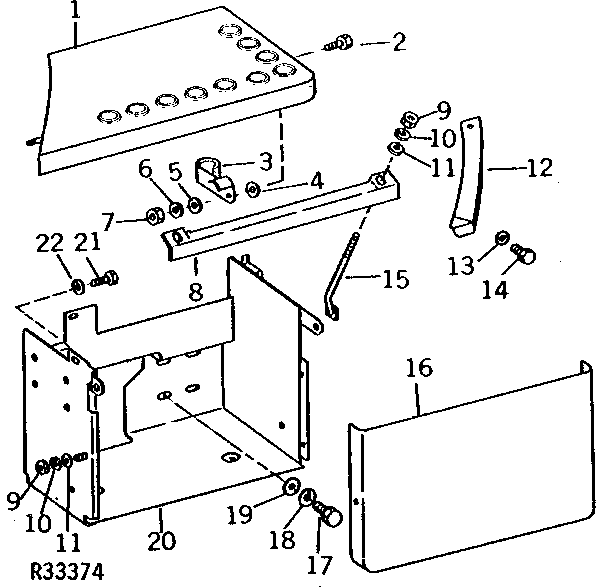

BATTERY BOX (ROLL-GARD AND SOUND-GARD BODY) [04H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR65025	1	COVER	L.H. (SUB FOR AR64347) (SUB AR85336, R54697, R65925, R40685, 24H1822, T16464 AND R50725)
1	AR85335	1	Cover	R.H.
1	AR85336	1	Cover	L.H.
1	AR65024	1	COVER	R.H. (SUB FOR AR64346) (SUB AR85335, R54697, R65925, R40685, 24H1822, T16464 AND R50724)
2	R54697	2	Gang Bolt	-
3	R50724	1	Latch	R.H.
3	R50725	1	Latch	L.H.
4	AR82256	2	SHIELD	(SUB FOR AR59703)
4	R27345	2	RIVET	-
5	24H1822	2	Washer	11/32" X 7/8" X 1/16"
6	R40685	2	Shim	-
7	BP12232	2	LOCK NUT	-
8	R63572	2	CLAMP	(SUB FOR AR78504)
9	14H786	6	Nut	1/4"
10	12H302	6	Lock Washer	1/4"
11	24H1287	6	Washer	9/32" X 5/8" X 0.065"
12	AR88961	1	RISER	R.H. (ALSO ORDER (2) R87345) (SUB FOR AR54876)
12	AR88962	1	RISER	L.H. (ALSO ORDER (2) R87345) (SUB FOR AR54877)
13	12H303	4	Lock Washer	5/16"
14	19H1900	4	Cap Screw	5/16" X 3/4"
14	R87345	4	Lock Nut	(SUB FOR R44454 OR R72380)
15	R59069	1	Hook Bolt	-
16	R57970	1	Cover	R.H. (SUB FOR AR56011)
16	R57971	1	Cover	L.H. (SUB FOR AR56012)
17	19H1731	4	Cap Screw	3/8" X 1"
18	12H304	4	Lock Washer	3/8"
19	24H1305	4	Washer	13/32" X 13/16" X 0.065"
20	AR71163	1	BOX	R.H. (ALSO ORDER (2) R59069) (SUB FOR AR65043, AR64348 AND AR65022) (SUB AR73982)
20	AR71164	1	BOX	L.H. (ALSO ORDER (2) R59069) (SUB FOR AR65044, AR64349 AND AR65023) (SUB AR73983)
21	19H2284	4	Cap Screw	3/8" X 7/8"
22	12H304	4	Lock Washer	3/8"
