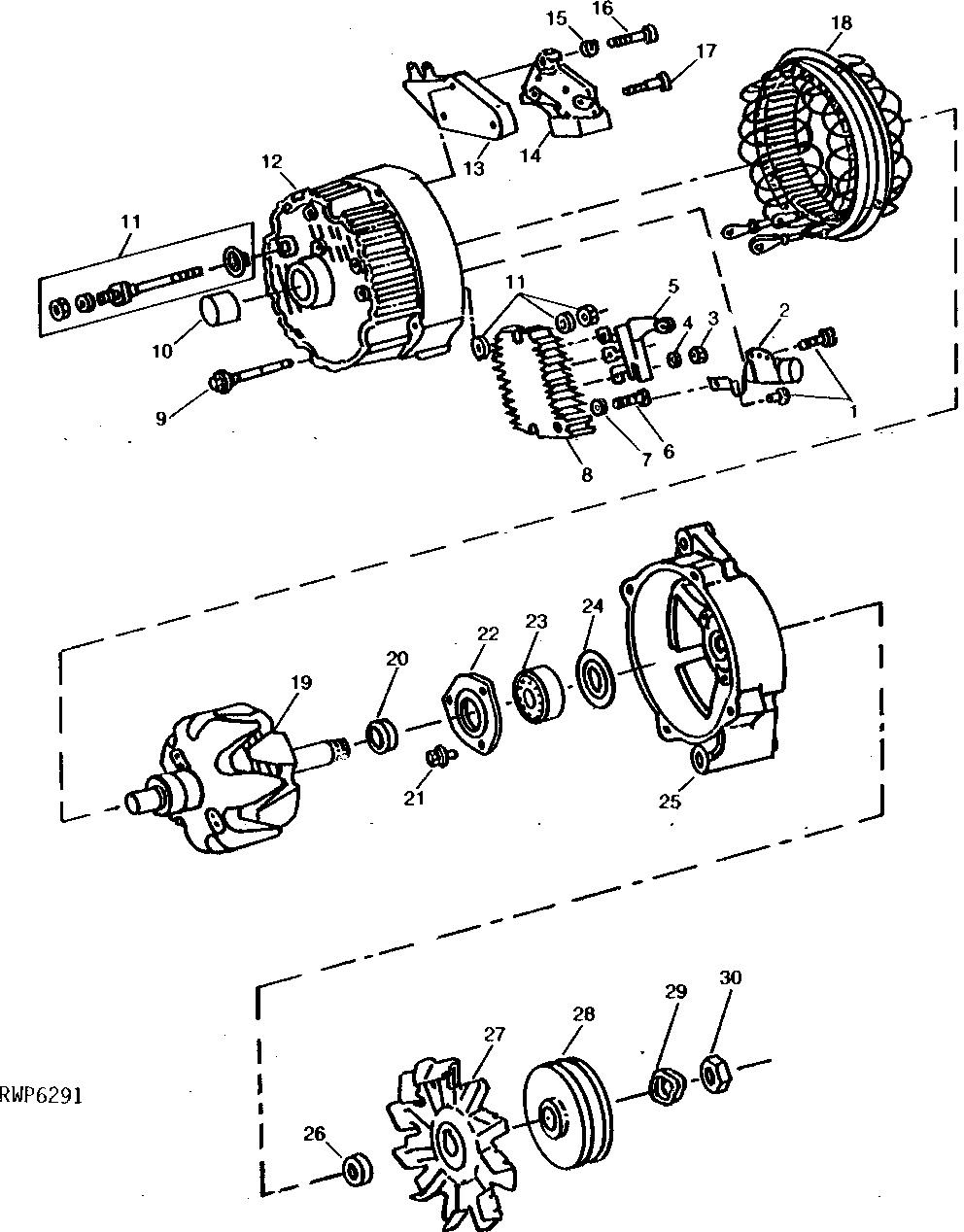

ALTERNATOR (TRACTOR SERIAL NO. -029611) [02C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H2	2	Screw	0.164" X 5/8"
2	AR55835	1	Capacitor	-
3	14H605	3	Nut	0.164"
4	12M7084	3	Lock Washer	0.169"
5	RE13798	1	Diode	(SUB FOR AR55831)
6	21H1319	1	Screw	0.164" X 7/8"
7	12M7084	1	Lock Washer	0.169"
8	AR55832	1	RECTIFIER	-
9	R51535	4	Cap Screw	-
10	AR77851	1	Cylindrical Roller Bearing	(SUB FOR AR55830)
11	AR55834	1	ELEC. CONNECTOR TERMINAL	(SUB AR93945 AND 14M7608)
12	R51529	1	HOUSING	-
13	AR55827	1	Voltage Regulator	-
14	AR69269	1	BRUSH	(SUB FOR AR55833)
15	12M7084	1	Lock Washer	0.169"
16	R51531	1	SCREW	-
17	R51530	1	Screw	-
18	AR55837	1	STATOR	(B) (55 AMP) (SUB FOR AR55829 OR AR85940) (NLA)
18	AR62395	1	STATOR	(A) (37 AMP)
19	RE13801	1	Rotor	(SUB FOR AR55828 OR AR78093) NLA
20	R51532	1	ECCENTRIC LOCKING COLLAR	-
21	21H1301	3	SCREW	0.190" X 1/2"
22	R11109	1	Plate	(SUB FOR AR55836 OR AR78755)
23	JD9449	1	Ball Bearing	(SUB FOR AT23188)
24	R51534	1	SHIM	-
25	R69644	1	HOUSING	(ALSO ORDER R69645) (SUB FOR R51528)
26	R51533	1	WASHER	-
27	R50659	1	Fan	-
28	R52189	1	PULLEY	(SINGLE)
28	R81507	1	Pulley	(DOUBLE) (SUB FOR R52161)
29	T10745	1	Washer	-
30	R11049	1	Nut	-
..	AR56728	1	ALTERNATOR	(A) (37 AMP) (SUB RE31694, 12M7006, 12M7065, 14M7608 AND 19M7163 OR TY6772)
..	AR54796	1	ALTERNATOR	(B) (55 AMP) (SUB RE31694, 12M7006, 12M7065, 14M7608 AND 19M7163 OR TY6772)
..	TY6772	1	ALTERNATOR	(72 AMP) (SUB FOR TY6600)
..	RE31694	1	Alternator	(78 AMP) (SUB FOR AR56728, AR54796, AR84306, AR93446, RE13797 OR RE27109) (ALSO FURNISH 14M7608, 12M7006 12M7065 AND 19M7163)
..	TY6686	1	Alternator	(78 AMP)
