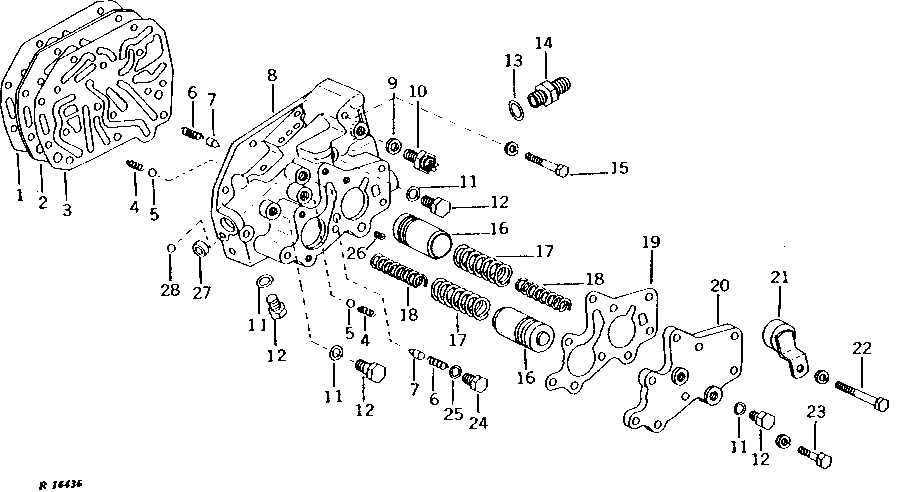

TRANSMISSION CONTROL VALVE (POWER SHIFT) [02D04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R94321	1	GASKET	(SUB FOR R46817, R50567 OR R68817)
2	R50566	1	PLATE	(SUB FOR R33304)
3	R100308	1	GASKET	(SUB FOR R46818, R47073, R50568 OR R68818) (USE WITH R46042, R53604 OR R57382)
3	R68819	1	GASKET	(SUB R94322) (USE WITH R67037, R72408 OR R78742)
4	R47816	2	Spring	-
5	D2361R	2	Ball	13MM (1/2")
6	R33277	2	SPRING	-
7	R42697	2	DETENT	-
8	RE20832	1	HOUSING	(SUB RE46459) (ALSO ORDER (2) R33277 AND (2) R42697)
8	R26286	5	O-Ring	(USE WITH R57382)
8	R27094	5	Drain Plug	(USE WITH R57382)
8	AR95903	1	HOUSING	TRANSMISSION CONTROL VALVE, (MARKED R72408 OR R78742) (SUB RE46459)
8	AR87115	1	HOUSING	TRANSMISSION CONTROL VALVE, (MARKED R46042, R53604, R57382 OR R67037) (SUB FOR R50171 OR AR60519) (SUB RE46459)
9	T16911	1	SHIM	-
10	RE38390	1	SWITCH	(SUB FOR R36265, AR85323 OR AT85153)
11	R26286	9	O-Ring	-
12	R27094	9	Drain Plug	-
13	R26906	1	O-Ring	-
14	R27270	1	Fitting	-
15	19H2023	1	CAP SCREW	3/8" X 3-1/4"
15	12H304	4	Lock Washer	3/8"
15	19H2128	1	CAP SCREW	3/8" X 3"
15	19H1732	2	Cap Screw	3/8" X 1-1/4"
16	R47319	2	PISTON	-
17	R47449	2	Compression Spring	-
18	R47450	2	SPRING	-
19	R98929	1	GASKET	(SUB FOR R47445, R52971 OR R68820)
20	R47321	1	COVER	(SUB R79852, (4) 19H1731 AND (4) 19H2205)
21	AR50180	1	COVER	-
22	19H3180	4	CAP SCREW	3/8" X 6-1/4"
22	12H304	4	Lock Washer	3/8"
23	19H988	4	CAP SCREW	3/8" X 1-1/4"
23	12H304	4	Lock Washer	3/8"
24	R27218	2	Fitting Plug	-
25	R26448	2	O-Ring	-
26	R47448	2	ORIFICE	(SUB FOR R48765)
27	A3910R	1	PLUG	(SUB N102039)
28	R42849	1	Ball	10MM (3/8")

TRANSMISSION CONTROL VALVE (POWER SHIFT) [02D04]
