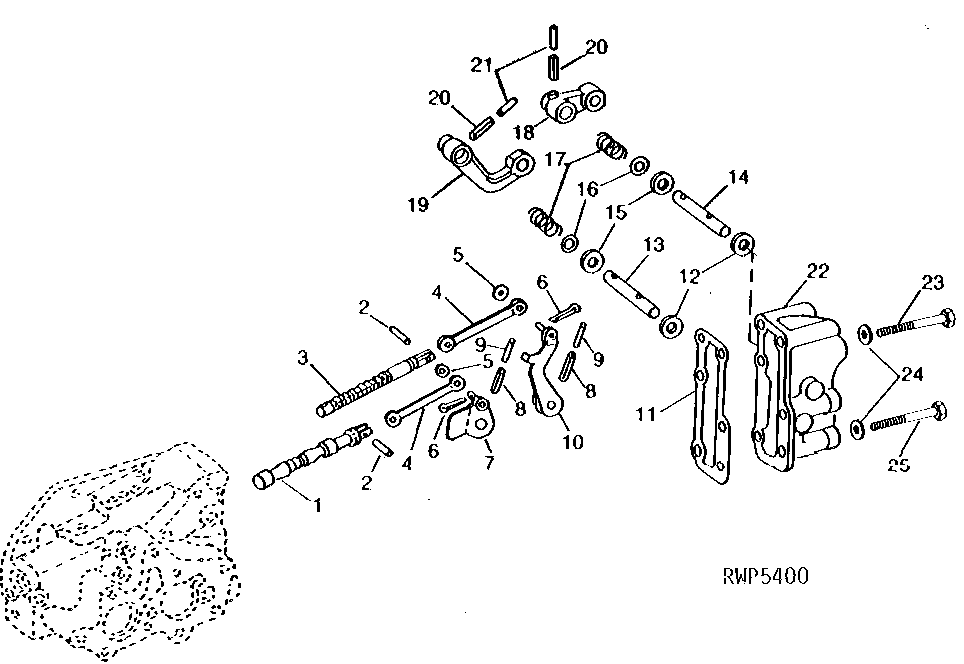

TRANSMISSION CONTROL VALVE COVER, CONTROL VALVES AND ARMS (POWER SHIFT) [02D08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82024	1	VALVE	(SUB FOR R33291 OR R72411)
2	34H309	2	Spring Pin	1/4" X 5/8"
3	R48370	1	VALVE	(SUB FOR R33292)
4	R33290	2	LINK	-
5	24H753	2	Washer	9/32" X 5/8" X 0.049"
6	11M7077	2	Cotter Pin	0.063" X 0.984"
7	AR32154	1	ARM	(SUB RE22320, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
7	RE22320	1	ARM	(SUB FOR AR53841)
7	AR45314	1	ARM	(A) (SUB RE22321, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
7	AR53843	1	ARM	(A)
8	-	2	Part 11	-
8	34H297	2	Spring Pin	7/32" X 1"
9	34H251	2	Spring Pin	1/8" X 1"
10	AR32155	1	ARM	(SUB RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 24H299)
10	RE21304	1	ARM	(SUB FOR AR53844)
10	AR45315	1	ARM	(A) (SUB RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 34H299)
10	AR53844	1	ARM	(A) (SUB RE21304)
11	R33275	1	GASKET	-
12	R33587	2	SEAL	-
13	R49819	1	PIN	(A)
13	R33287	1	SHAFT	(A) (ORDER RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 34H299)
13	R33287	1	SHAFT	(ORDER RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 34H299)
13	R49819	1	PIN	-
14	R33287	1	SHAFT	(ORDER RE22320, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
14	R49819	1	PIN	-
14	R33287	1	SHAFT	(A) (ORDER RE22321, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
14	R49819	1	PIN	(A)
15	R36364	2	WASHER	FELT
16	24H1359	2	Washer	5/8" X 7/8" X 0.060"
17	F3221R	2	SPRING	-
18	R49817	1	LEVER	(A)
18	R33272	1	ARM	(A) (ORDER RE22321, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
18	R49817	1	LEVER	-
18	R33272	1	ARM	(ORDER RE22320, R49817, R49819, 34H251, 34H252, 34H297 AND 34H299)
19	R33271	1	ARM	(ORDER RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 34H299)
19	R49816	1	LEVER	-
19	R33271	1	ARM	(A) (ORDER RE21304, R49816, R49819, 34H251, 34H252, 34H297 AND 34H299)
19	R49816	1	LEVER	(A)
20	34H299	2	Spring Pin	7/32" X 1-1/4"
21	34H252	2	SPRING PIN	1/8" X 1-1/4"
22	AR45255	1	COVER	(MARKED R33268 OR R44030)
22	R82331	1	COVER	(A) (SUB FOR AR52180, AR95904 OR RE21305) (ALSO FURNISH R26287, (5) R26448, R27216 AND R27218)
23	19H2023	5	CAP SCREW	3/8" X 3-1/4"
24	24M7096	6	Washer	10.500 X 18 X 1.600 MM
25	19H1854	1	Cap Screw	3/8" X 3-3/4"
