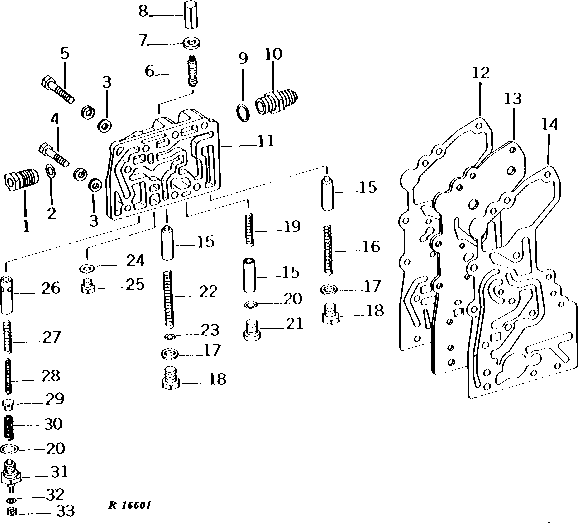

TRANSMISSION CLUTCH REGULATING VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [02C14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33610	1	FITTING	(SUB R76494)
2	B2762R	1	O-Ring	-
3	24H1325	7	Washer	15/32" X 59/64" X 0.065"
4	19H2055	5	CAP SCREW	7/16" X 2-1/4"
4	12H293	5	Lock Washer	7/16"
5	19H1828	2	CAP SCREW	7/16" X 4"
5	12H293	2	Lock Washer	7/16"
6	R39587	1	SET SCREW	-
7	F2846R	1	WASHER	ALUMINUM
8	F2847R	1	NUT	-
9	F3171R	1	O-Ring	-
10	R27267	1	Fitting	-
11	R41405	1	HOUSING	-
12	R98926	1	GASKET	(SUB FOR R46816 OR R51573)
13	R33164	1	PLATE	-
14	R46815	1	GASKET	(SUB R94331)
15	R57559	3	VALVE	(SUB FOR R33162) (ALSO ORDER R33259)
16	R39808	1	SPRING	-
17	R1742R	2	WASHER	ALUMINUM
18	R52589	2	FITTING PLUG	(SUB FOR R33163)
19	R28914	1	SPRING	-
20	R26375	2	O-Ring	-
21	R33138	1	Fitting	-
22	R41850	1	SPRING	-
23	R33521	1	Shim	0.76MM (.030")
24	R26286	1	O-Ring	-
25	R27094	1	Drain Plug	-
26	R49198	1	VALVE	FILTER BYPASS, (SUB R33259 AND R57560)
27	R42057	1	Spring	(OUTER)
28	R33173	1	Spring	(INNER)
29	R65652	1	GUIDE	(SUB FOR R41148)
30	R46426	1	SPRING	-
31	AR40795	1	TOUCH SWITCH	-
32	24H1283	1	Washer	7/32" X 1/2" X 0.049"
33	14H631	1	Nut	0.190"

TRANSMISSION CLUTCH REGULATING VALVE HOUSING, VALVES, AND GASKETS (POWER SHIFT) [02C14]
