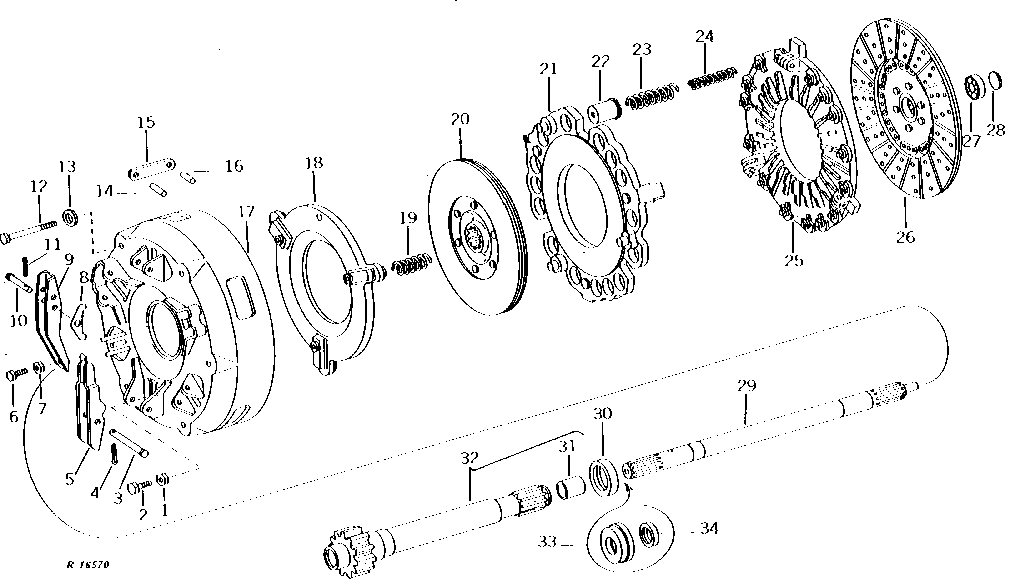

TRANSMISSION AND PTO CLUTCH (SYNCRO-RANGE) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H934	3	Nut	7/16"
2	R55184	3	SELF-LOCKING SCREW	(SUB FOR R43763)
3	R43418	3	Pin Fastener	-
4	11M7021	3	Cotter Pin	0.157" X 0.984"
5	R33550	3	LEVER	-
5	AR63609	3	LEVER	(USE ONLY IF AR63606 HAS BEEN INSTALLED)
6	R43446	3	BOLT	-
7	14H774	3	Nut	3/8"
8	R43625	6	PLATE	-
9	R43445	3	LEVER	-
10	R43388	3	Pin Fastener	-
11	11M7021	3	Cotter Pin	0.157" X 0.984"
12	R64523	6	BOLT	(SUB FOR R43866)
13	R1870R	6	Washer	(SUB R57696)
14	R43389	3	DOWEL PIN	-
15	R43387	3	STRAP	-
15	AR68421	1	KIT	LINK, SPECIAL, (SUB (3) R57133) (IF FLYWHEEL HAS BEEN MACHINED)
16	R35075	3	QUICK LOCK PIN	-
17	AR43069	1	COVER	-
18	R43334	1	PLATE	-
19	R26659	3	SPRING	-
20	RE29612	1	CLUTCH DISK	(SUB FOR AR43028)
21	R43386	1	PLATE	-
22	R43385	15	RETAINER	-
23	R47108	15	SPRING	-
24	R47109	15	Spring	-
25	R49044	1	CLUTCH PLATE	(SUB FOR R43944)
26	RE29776	1	CLUTCH DISK	(SUB FOR AR43117)
26	AR55663	1	CLUTCH DISK	(HEAVY DUTY)
27	JD9449	1	Ball Bearing	(SUB FOR JD9281)
28	R26656	1	WASHER	-
29	R43094	1	SHAFT	-
30	AR43085	1	SEAL	-
31	R43233	1	BUSHING	-
32	AR43052	1	SHAFT	-
33	R43235	1	BEARING HOUSING W/O BEARING	(LESS PTO)
34	AR70406	1	Seal	(LESS PTO) (SUB FOR R35642)
34	RE299173	1	SEAL	(SUB FOR AR70406)

TRANSMISSION AND PTO CLUTCH (SYNCRO-RANGE) [02B07]
