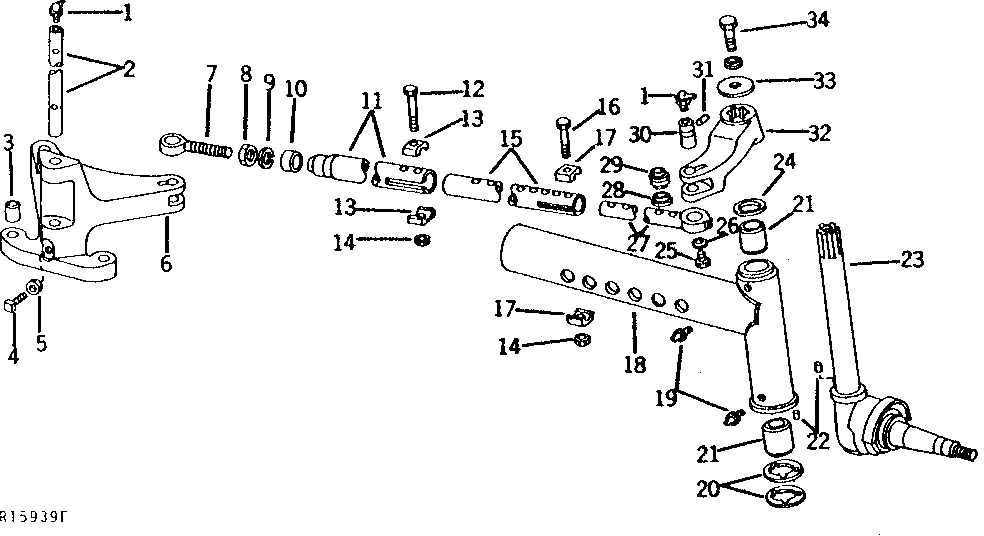

STEERING ARMS, BELL CRANK AND TIE RODS (ADJUSTABLE TREAD) [02E25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7781	5	Lubrication Fitting	-
2	R43203	1	PIN	-
3	R43199	2	BUSHING	-
4	22H952	1	SET SCREW	1/2" X 1-1/2"
5	14H971	1	NUT	1/2"
6	AR43269	1	LEVER	(MARKED R43157)
7	AR43265	2	TIE ROD END	-
8	14H876	2	Nut	1"
9	12H234	2	LOCK WASHER	1"
10	R43572	2	SPACER	-
11	R43956	2	TUBE	(EXTRA WIDE TREAD)
11	R43161	2	TUBE	-
12	19H2444	2	CAP SCREW	7/16" X 3-1/4"
13	R43571	4	CLAMP	-
14	N101346	4	Lock Nut	-
15	R43162	2	TUBE	-
16	19H2227	2	CAP SCREW	7/16" X 2-1/2"
17	R43570	4	CLAMP	(OUTER)
18	AR51603	1	AXLE	(B) L.H. (EXTRA WIDE TREAD) (SUB FOR AR43802)
18	AR51602	1	AXLE	(B) R.H. (EXTRA WIDE TREAD) (SUB FOR AR43802)
18	AR51604	1	AXLE	(A) R.H. (SUB FOR AR43032)
18	AR51605	1	AXLE	(A) L.H. (SUB FOR AR43032)
19	JD7759	4	Lubrication Fitting	-
20	R30398	4	Washer	-
21	R52188	4	Bushing	(SUB FOR R28471)
22	34H308	4	Spring Pin	1/4" X 1/2"
23	AR71631	2	KNUCKLE	(SUB FOR AR43176) (NLA)
24	R31251	2	Washer	-
25	R43569	4	Cap Screw	(SUB R72371)
26	R43696	4	Washer	-
27	AR43040	2	TIE ROD END	-
28	R43568	4	WASHER	-
29	R43206	4	Bushing	-
30	R43204	4	PIN	-
31	T16573	4	Pin	-
32	R48471	1	STEERING ARM	R.H. (SUB FOR R43195)
32	R48472	1	STEERING ARM	L.H. (SUB FOR R43196) (NLA)
33	F3607R	2	Washer	-
34	19H1798	2	Cap Screw	3/4" X 1-3/4"
34	12H236	2	Lock Washer	3/4"
