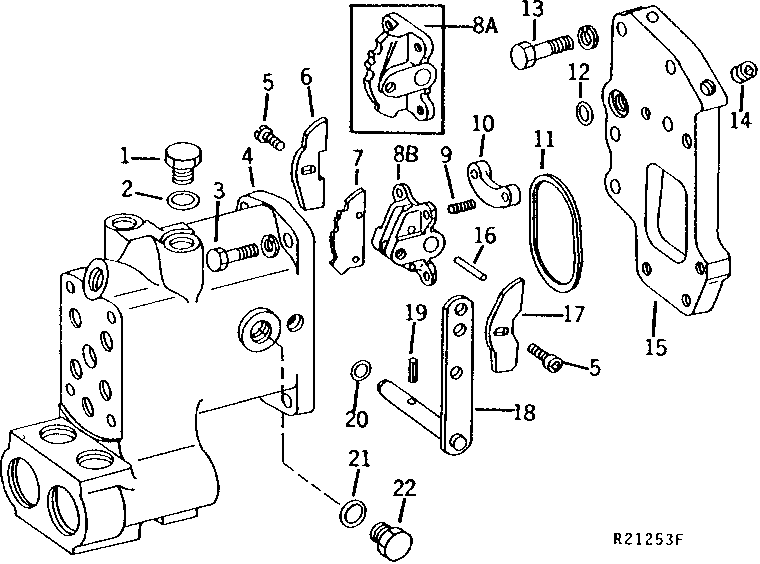

SELECTIVE CONTROL VALVE HOUSING, COVER, ROCKER, AND OPERATING CAMS [02J04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R39112	1	Fitting	-
2	R26375	1	O-Ring	-
3	19H2731	1	Cap Screw	7/16" X 1-3/8", (4 USED SINGLE) (7 USED DUAL) (11 USED TRIPLE)
3	19H2055	1	CAP SCREW	7/16" X 2-1/4", (DUAL OR TRIPLE)
3	12H293	4	Lock Washer	7/16", (SINGLE)
4	AR40827	1	HOUSING	(MARKED R40499) (SUB AR82572, R27166, R41057, R59629, R65501, R65502, R66916, R74695 AND R65289)
4	AR82572	1	HOUSING	(MARKED R65284)
5	R27233	2	SCREW	-
6	R41931	1	CAM	(SUB R51414)
6	R51414	1	CAM	(SUB AR253731)
7	R51413	1	CAM	(SUB AR253730)
9	22H1025	4	Set Screw	1/4" X 7/8"
10	R49221	2	RETAINER	-
11	R40922	1	Back-Up Ring	-
12	F2741R	1	Packing	-
13	19H1978	4	Cap Screw	7/16" X 1-1/2"
13	19H2731	4	Cap Screw	7/16" X 1-3/8"
13	12H293	5	Lock Washer	7/16"
14	15H559	1	Pipe Plug	1/4", (1 USED DUAL) (2 USED TRIPLE)
14	15H558	1	Pipe Plug	1/8", (TRIPLE)
15	AR54331	1	COVER	(DUAL) (MARKED R41445 OR R50066) (SUB FOR AR41969) (SUB AR71188 AND (2) R59082)
15	AR54332	1	COVER	(TRIPLE) (MARKED R41448 OR R50067) (SUB FOR AR41970) (SUB AR71189 AND (2) R59082)
16	R28744	2	Pin	-
17	R41932	1	CAM	(SUB R51415)
17	R51415	1	CAM	(SUB AR253733)
18	AR48734	1	ARM	(SUB FOR AR40684)
19	34H297	1	Spring Pin	7/32" X 1"
20	R65287	2	O-RING	-
21	R26375	2	O-Ring	-
22	R41155	2	Fitting Plug	-
8A	R40898	1	ROCKER	(SUB R51412, R51413, R51414, R51415 AND (2) R28744)
8B	R51412	1	ROCKER	-

SELECTIVE CONTROL VALVE HOUSING, COVER, ROCKER, AND OPERATING CAMS [02J04]
