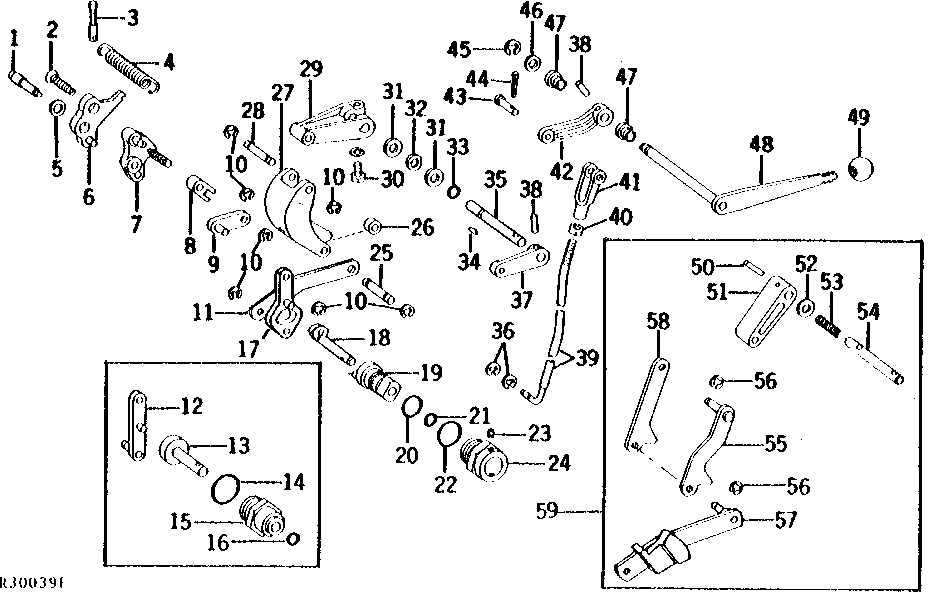

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [02I01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R64296	1	SHAFT	(SUB FOR R40949)
2	T22228	1	SCREW	-
3	R66894	1	PIN	-
3	R41108	1	PIN FASTENER	-
4	R60730	1	Extension Spring	(SUB FOR R44300 OR R53033)
5	24H1321	1	Shim	0.018"
6	AR40676	1	LEVER	CONTROL VALVE ADJUSTING
7	AR40754	1	LINK	CONTROL VALVE ADJUSTING, (SUB AR81783, R64845 AND R64843)
8	R40885	1	NUT	CONTROL ADJUSTING LINK SCREW (NLA)
9	AR40675	1	PIN FASTENER	-
10	R72653	7	Snap Ring	(SUB FOR M2396T)
11	R51025	1	LINK	VALVE OPERATING, (SUB FOR R41079)
12	AR40753	1	LINK	(SUB AR72292 AND AR79505)
13	R41077	1	SHAFT	(SUB AR79505 AND AR72292)
14	U13639	1	O-Ring	-
15	R41115	1	BEARING HOUSING W/O BEARING	-
16	R394R	1	O-Ring	-
17	AR52797	1	LINK	-
18	R49333	1	SHAFT	-
19	AR52796	1	BUSHING	-
20	R27928	1	O-Ring	-
21	R394R	1	O-Ring	-
22	U13639	1	O-Ring	-
23	22H1033	1	Set Screw	5/16" X 3/8"
24	R49332	1	BEARING HOUSING W/O BEARING	-
25	R41118	1	PIN FASTENER	-
26	R41661	1	BUSHING	ROCKSHAFT SERVO CAM
27	R40886	1	LINK	LOAD SELECTOR CONTROL, (SUB AR86775)
28	R41119	1	PIN FASTENER	-
29	R40944	1	ARM	LOAD SELECTOR CONTROL, (SUB AR86775)
30	12H303	1	Lock Washer	5/16"
30	19H1905	1	Cap Screw	5/16" X 1"
31	R47301	2	Washer	-
32	T519T	2	Washer	-
33	R394R	1	O-Ring	-
34	26H67	1	Shaft Key	1/8" X 3/8"
35	R41117	1	SHAFT	LOAD SELECTOR CONTROL
36	R27507	4	Snap Ring	(SUB R72654)
37	R40892	1	LEVER	-
38	34H297	2	Spring Pin	7/32" X 1"
39	R43926	1	ROD	LOAD SELECTOR CONTROL
40	14H882	1	Nut	5/16"
41	R42282	1	Yoke	(SUB R82766 AND T54033)
42	R40915	1	Lever	-
43	R72660	1	Pin Fastener	(SUB FOR R662R)
44	11M7079	1	Cotter Pin	0.098" X 0.472"
45	R26871	1	Snap Ring	-
46	24H1227	1	Washer	17/32" X 13/16" X 0.060"
47	R41076	2	Grommet	-
48	AR40683	1	LEVER	-
49	R40948	1	KNOB	-
50	R56504	1	Spring Pin	-
51	R56821	1	ARM	(SUB FOR R52824)
52	24H1341	1	Washer	17/32" X 15/16" X 0.060"
53	B423R	1	EXTENSION SPRING	LOAD SELECTOR CONTROL
54	R52823	1	SHAFT	-
55	AR72294	1	LINK	(SUB FOR AR58236) (ALSO ORDER AR72293)
56	R72653	3	Snap Ring	(SUB FOR M2396T)
57	AR72293	1	LINK	VALVE OPERATING
58	R52828	1	LINK	-
59	AR86775	1	STARTER MOTOR KIT	LOAD SELECTOR CONTROL LINKAGE, (SUB FOR AR58474)
..	AR55210	1	PUMP	REVERSE SIGNAL LOCKOUT

ROCKSHAFT CONTROL LINKAGE AND LOAD SELECTOR CONTROL [02I01]
