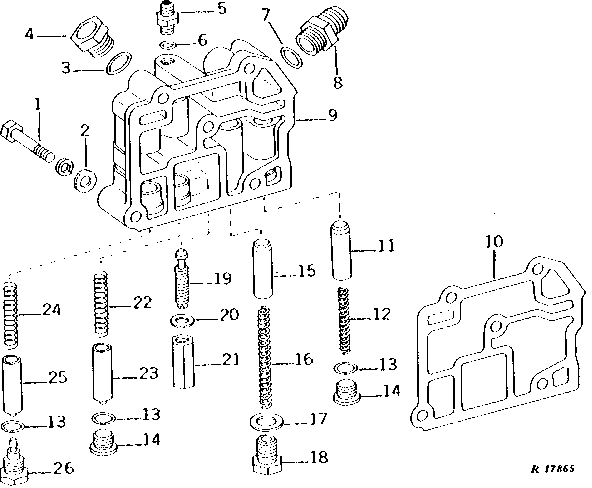

OIL FILTER RELIEF VALVE HOUSING (SYNCRO-RANGE) [02H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1828	1	CAP SCREW	7/16" X 4"
1	19H2731	1	Cap Screw	7/16" X 1-3/8"
1	12H293	5	Lock Washer	7/16"
1	19H1227	1	Cap Screw	1/4" X 1/2"
1	19H2055	2	CAP SCREW	7/16" X 2-1/4"
2	24H1325	5	Washer	15/32" X 59/64" X 0.065"
3	B2762R	1	O-Ring	-
4	R76494	1	FITTING	-
5	R27272	1	Fitting	-
6	R26286	1	O-Ring	-
7	F3171R	1	O-Ring	-
8	R27267	1	Fitting	-
9	AR52630	1	HOUSING	(MARKED R49199, R40664, R44006 OR R49200) (ALSO ORDER (2) R57561 AND R33259 WHEN SUB FOR AR45542)
9	R39112	1	Fitting	(USE WITH R44006 OR R49200)
9	R26375	1	O-Ring	(USE WITH R44006 OR R49200)
9	400R	2	Ball	6MM (1/4") (USE WITH R44006 OR R49200)
10	R49758	1	GASKET	(SUB FOR R41463)
11	R49198	1	VALVE	(SUB R57560 AND R33259) (USE WITH R40664 OR R44006)
11	R49197	1	VALVE	(SUB R57561 AND R33259) (USE WITH R49199 OR R49200)
12	R26686	1	SPRING	-
13	R26375	3	O-Ring	-
14	R33138	2	Fitting	-
15	R49198	1	VALVE	(SUB R57560 AND R33259) (USE WITH R40664 OR R44006)
15	R49197	1	VALVE	(SUB R57561 AND R33259) (USE WITH R49199 OR R49200)
16	R39808	1	SPRING	-
17	R1742R	1	WASHER	-
18	R52589	1	FITTING PLUG	(SUB FOR R33163)
19	R39587	1	SET SCREW	-
20	F2846R	1	WASHER	ALUMINUM
21	F2847R	1	NUT	-
22	R28914	1	SPRING	-
23	R57559	1	VALVE	(SUB FOR R33162) (ALSO ORDER R33259)
24	R42057	1	Spring	-
25	R57559	1	VALVE	(SUB FOR R33162) (ALSO ORDER R33259)
26	R36943	1	Fitting	-

OIL FILTER RELIEF VALVE HOUSING (SYNCRO-RANGE) [02H05]
