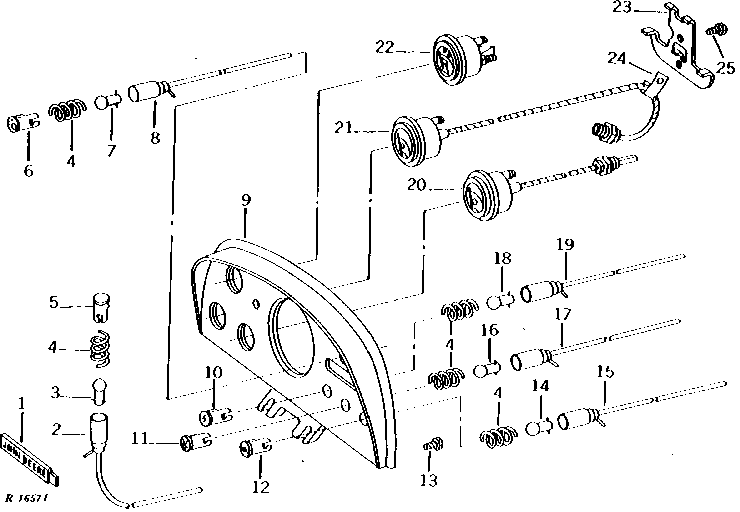

INSTRUMENT PANEL, INSTRUMENTS, AND INDICATOR LAMPS [01G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR45440	1	IDENTIFICATION PLATE	-
2	AR48032	1	INDICATOR LIGHT	(SUB AT44165, AR55694, AR45446 AND R30378) HYDRAULIC FILTER RESTRICTION (POWER SHIFT)
3	AR55694	1	BULB	(SUB FOR R30379)
4	R30378	1	Spring	(4 USED, SYNCRO-RANGE) (5 USED, POWER SHIFT)
5	AR45446	1	LENS	HYDRAULIC FILTER RESTRICTION, (POWER SHIFT)
6	AR47916	1	LENS	HIGH BEAM INDICATOR
7	AR50440	1	LAMP	-
8	AR50508	1	INDICATOR LAMP	HIGH-BEAM LIGHT INDICATOR
9	R56320	1	INSTRUMENT PANEL	(SUB FOR AR51160 OR AR68199 OR AR66761) (ALSO ORDER T16738 PLUG)
9	R49025	1	LABEL	-
10	AT48673	1	LENS	ALTERNATOR, (SUB AT48673)
11	AR45439	1	LENS	AIR CLEANER FILTER RESTRICTION
12	AT48674	1	LENS	ENGINE OIL PRESSURE, (SUB AT48674)
13	37M7245	2	SCREW	NO. 10 X 3/8"
14	AR55694	1	BULB	(SUB FOR R30379)
15	AR48035	1	INDICATOR LIGHT	ENGINE OIL PRESSURE, (SUB AR55694, AT48674, AT44165 AND R30378)
16	AR50439	1	LAMP	-
17	AR48033	1	INDICATOR LIGHT	AIR CLEANER FILTER RESTRICTION, (SUB AR45439, AR55694, R30378 AND AT44165)
18	AR50439	1	LAMP	-
19	AR48034	1	INDICATOR LIGHT	ALTERNATOR, (SUB AT48673, R30378, AR55694 AND AT44165)
20	AR48640	1	TEMPERATURE GAUGE	WATER TEMPERATURE
21	AR46979	1	PYROMETER	TRANSMISSION OIL TEMPERATURE
22	AR45436	1	GAUGE	FUEL
23	R44198	1	CLAMP	-
24	R45211	1	Clamp	-
25	37M7210	1	Screw	(2 USED SYNCRO-RANGE) (1 USED POWER SHIFT)
25	37M7191	2	SCREW	(POWER SHIFT)

INSTRUMENT PANEL, INSTRUMENTS, AND INDICATOR LAMPS [01G21]
