FRONT HYDRAULIC OIL LINES (POWER FRONT WHEEL DRIVE) [02H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

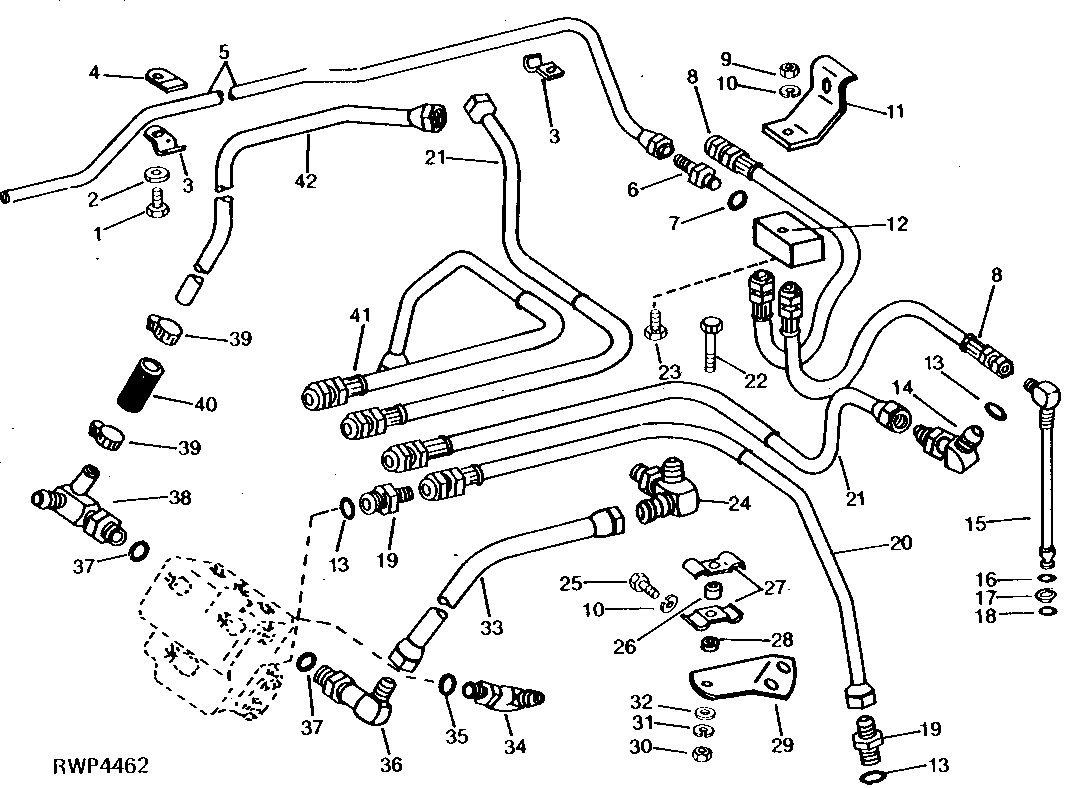

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2021	1	Cap Screw	3/8" X 5/8"
2	24H1652	1	Washer	13/32" X 11/16" X 7/64"
3	R28538	2	CLAMP	-
4	R28539	1	CLAMP	-
5	AR49131	1	LINE	-
6	R39249	1	Adapter Fitting	-
7	R26448	1	O-Ring	-
8	AR82265	2	HYDRAULIC HOSE	DRAIN, (SUB FOR AR49311 OR AR64634)
9	14H1076	1	Nut	3/8"
10	12H304	5	Lock Washer	3/8"
11	R46962	1	BRACKET	-
12	AR45234	1	FITTING	-
13	F3171R	8	O-Ring	-
14	AR47803	2	ELBOW FITTING	-
15	AR53447	2	ELBOW FITTING	(SUB FOR AR45198)
16	R10093	2	O-Ring	(SUB R61462 AND R61463)
17	R44778	2	BACK-UP RING	(SUB R61462 AND R61463)
18	R26448	2	O-Ring	-
19	R27267	6	Fitting	-
20	AR49217	1	HYDRAULIC HOSE	LOWER, R.H.
21	AR49216	2	HYDRAULIC HOSE	UPPER
22	19H1899	2	Cap Screw	7/16" X 2"
23	19H246	1	CAP SCREW	3/8" X 1-3/4"
24	AR49116	1	TEE FITTING	-
25	19H2284	4	Cap Screw	3/8" X 7/8"
26	28H2482	2	Bushing	1/2" X 1/2"
27	R46919	4	Half Clamp	-
28	28H1863	1	Washer	0.622" X 0.840" X 7/32"
29	R46917	1	SUPPORT	R.H.
29	R46918	1	SUPPORT	L.H.
30	14H1047	2	Nut	7/16"
31	12H293	2	Lock Washer	7/16"
32	24H1325	2	Washer	15/32" X 59/64" X 0.065"
33	AR49129	1	OIL LINE	HYDRAULIC PRESSURE
34	AT32332	1	Elbow Fitting	(SUB FOR AR26763)
35	R26375	1	O-Ring	-
36	AR44384	1	Elbow Fitting	-
36	AR53562	1	TEE FITTING	-
37	U17409	2	O-Ring	-
38	AR49132	1	TEE FITTING	L.H. (SUB AR54694, R39112 AND R26375)
38	AR54694	1	TEE FITTING	L.H.
39	AR21839	2	Clamp	(SUB TY22467)
40	-	1	Part 44	(MAKE FROM TY22563)
41	AR49218	1	HYDRAULIC HOSE	LOWER, L.H.
42	AR49130	1	OIL LINE	RETURN, CONTROL VALVE TO HYDRAULIC PUMP
..	AR63929	1	Cylinder	POWER FRONT WHEEL DRIVE MANIFOLD AND PIVOT PIN SEAL
-	24H1325	2	Washer	15/32" X 59/64" X 0.065"
