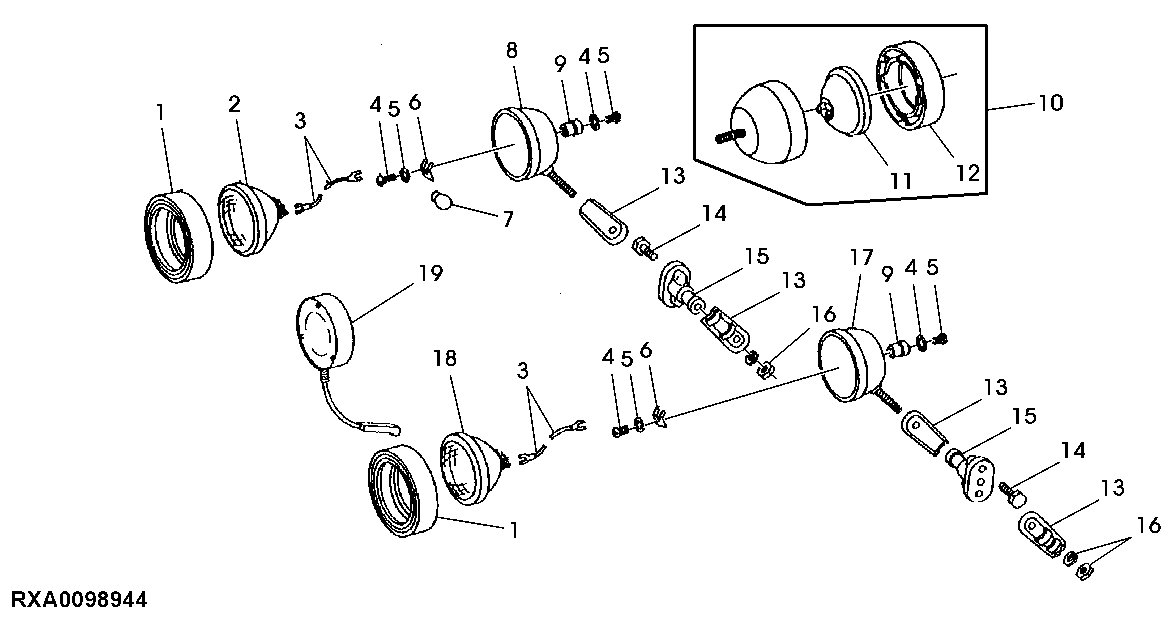

FRONT AND REAR LAMPS AND WARNING LAMPS [01G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R31250	2	BEZEL	(REAR LAMPS) (GUIDE)
1	R30182	2	BEZEL	(REAR LAMPS) (HOBBS)
2	AR77324	1	LAMP	(USE WITH AR77326)
2	AR21737	1	BULB	(REAR, L.H.) (12-VOLT) (SUB AR77324, AD2062R AND AR77325)
3	-	6	Part 5	165MM (6-1/2") SEALED UNIT TO TERMINAL PLATE, (MAKE FROM R66319 AND (2) R32016)
4	21H1293	12	SCREW	0.164" X 5/16"
5	12M7084	12	Lock Washer	0.169"
6	A2899R	2	SPRING	(REAR LAMPS) (GUIDE)
7	AR86969	1	BULB	15 C.P., 12-VOLT (REAR LAMP, L.H.) (USE WITH AT16288) (SUB FOR AR21739)
7	AD2062R	1	Bulb	(12-VOLT) (USE WITH AR77326)
8	AR77326	1	FLOODLAMP	(SUB FOR AR34990 OR AT16288)
8	AR77325	1	SOCKET	(USE WITH AR77326)
8	AR55888	1	SOCKET	(USE WITH AT16288)
9	R30181	4	PLATE	(REAR LAMPS) (HOBBS)
9	AA3495R	4	SUPPORT	(REAR LAMPS) (GUIDE)
10	AR48721	2	HEADLIGHT	(12-VOLT DUAL BEAM) (SUB RE25126 AND RE25127)
10	RE19080	2	Floodlamp	(INNER) (12-VOLT FLOOD) (SUB FOR AR48722)
11	RE285629	2	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
11	AR21059	2	HEADLIGHT	(12-VOLT FLOOD) (FRONT LAMP, INNER)
11	RE25125	2	Dual Beam Headlamp	(FRONT LAMP, OUTER) (SUB FOR AR48723)
11	RE285628	2	FLOODLAMP	LED LAMP, FLOOD PATTERN.
12	R30182	4	BEZEL	(FRONT LAMPS) (HOBBS)
12	R31250	4	BEZEL	(FRONT LAMPS) (GUIDE)
13	R27460	4	ELEC. CONNECTOR ACCESSORY	-
14	37H106	4	SCREW	3/8" X 5/8"
15	R43662	2	BRACKET	-
16	14H1040	2	Nut	1/2"
16	12H301	2	Lock Washer	1/2"
17	RE27099	1	HEADLIGHT	(SUB FOR AR28167)
18	AR21059	1	HEADLIGHT	(12-VOLT) (REAR, R.H.)
18	RE285628	1	FLOODLAMP	LED LAMP, FLOOD PATTERN.
18	RE285629	1	FLOODLAMP	LED LAMP, TRAPEZOID FLOOD PATTERN.
19	AR50580	2	LAMP	WARNING
19	AD2062R	1	Bulb	(12-16-VOLT)
19	R48664	1	Lens	(WITH RED REFLECTOR)
19	R48665	1	Lens	-
19	R49296	3	Screw	(SUB 37H210)

FRONT AND REAR LAMPS AND WARNING LAMPS [01G11]
