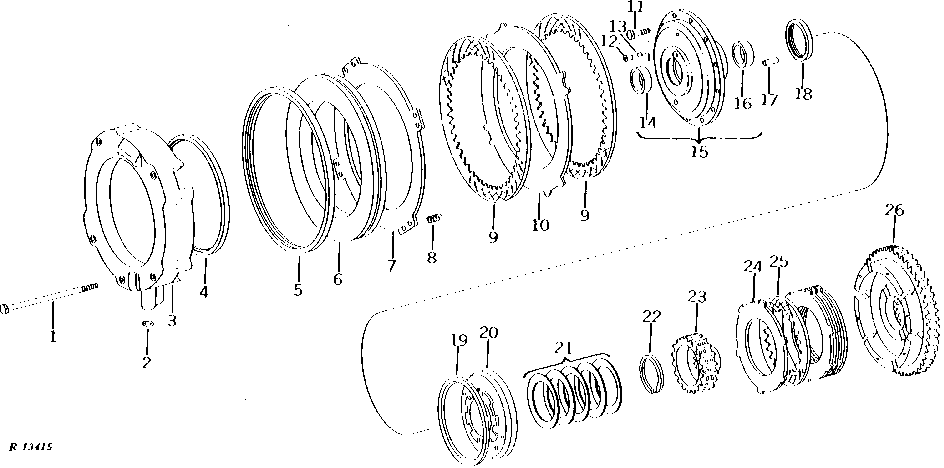

FOURTH PLANETARY BRAKE (POWER SHIFT) [02C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4318	5	CAP SCREW	3/8" X 9"
2	R459R	2	O-Ring	-
3	R43013	1	HOUSING	BRAKE PISTON
4	R43379	1	Seal	SECOND AND FOURTH PLANET
5	R43378	1	Seal	-
6	R65589	1	PISTON	BRAKE, SECOND AND FOURTH PLANET, (SUB FOR R43220)
7	R46417	1	Plate	-
8	R33054	8	SPRING	(SUB R74852)
9	AR48096	2	DISK	(SUB RE62897)
9	RE234259	2	Disk With Inner Spline	(SUB FOR AR68345, RE62897 OR AR94515)
10	R46416	1	Plate	-
11	R41168	6	Cap Screw	-
12	R43053	1	Seat	-
13	400R	1	Ball	6MM (1/4")
14	R43052	1	Bushing	-
15	AR43005	1	HOUSING	PLANETARY CLUTCH PISTON, (MARKED R43051)
16	R43050	1	BUSHING	(SUB R78662)
17	R28671	1	Dowel Pin	-
18	R43381	1	Washer	-
19	R43380	1	WASHER	(SUB R120841)
20	R43304	1	PISTON	PLANETARY CLUTCH
21	R70027	5	Disk Spring	(SUB FOR R43382)
22	R43383	1	Snap Ring	-
23	R43140	1	HUB	PLANETARY CLUTCH
24	R46418	4	CLUTCH PLATE	-
24	R81922	3	Clutch Plate	-
25	RE238331	4	CLUTCH DISK	(SUB FOR AR43057, AR68352, AR87484, RE20133 OR RE28023, THIS APPLICATION)
26	R43036	1	DRUM	-

FOURTH PLANETARY BRAKE (POWER SHIFT) [02C17]

Нет текстового описания
