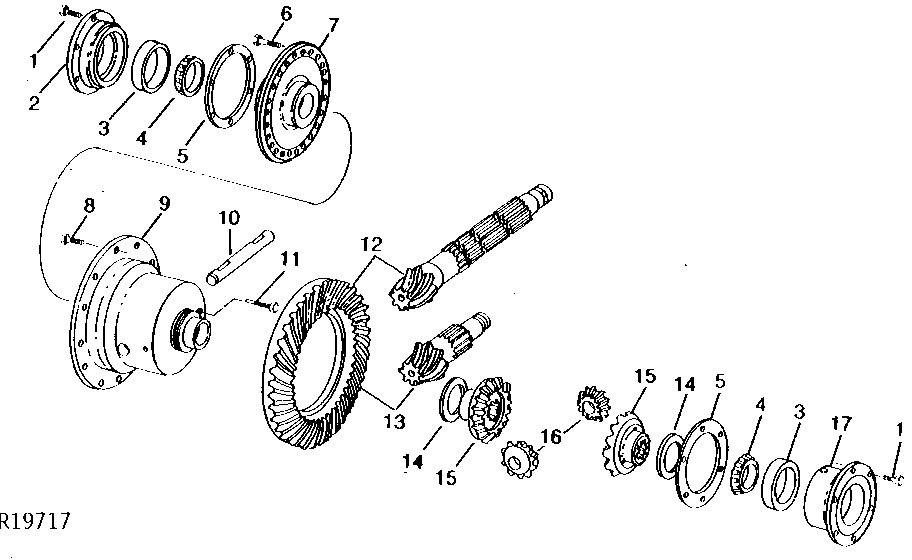

DIFFERENTIAL (LESS DIFFERENTIAL LOCK) [02D15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41049	12	Cap Screw	(SUB R52634)
2	R43186	1	Bearing Housing W/O Bearing	(A)
3	JD8214	1	Bearing Cup	(A) L.H.
3	JD8214	1	Bearing Cup	R.H.
4	JD9019	1	BEARING CONE	(A) L.H.
4	JD9019	1	BEARING CONE	R.H.
5	R35501	1	Shim	0.08MM (.003")
5	R35502	1	Shim	0.13MM (.005")
5	R35503	1	Shim	0.25MM (0.10")
6	R43369	12	Self-Locking Screw	(SUB FOR R42407)
7	34H311	3	Spring Pin	1/4" X 7/8"
7	AR88242	1	Cover	(A) (MARKED R43184 OR R46636) (SUB FOR AR43243)
8	R43368	12	Cap Screw	-
9	AR43114	1	Housing	(MARKED R43002 OR R43003) (SUB AR111163 AND R113732 OR R113733) (ALSO ORDER JD8298, JD8962, R73274, R94631 AND (3) 34H311)
10	R58424	1	Pinion Shaft	(SUB FOR R43344 OR R52154)
11	R70236	1	CAP SCREW	(SUB FOR R41050)
12	AR43006	1	GEAR	(MATCHED SET) (SYNCRO-RANGE) (MARKED R43032 AND R43024)
13	AR63373	1	BEVEL GEAR DRIVE	(MATCHED SET) (POWER SHIFT) (MARKED R43023 AND R43031) (SUB FOR AR43007)
14	R72586	1	Thrust Washer	(SUB FOR R52157 OR R66788) (USE WITH R52155 OR R64257)
15	R64257	2	Bevel Gear	(SUB FOR R48251 OR R52155) (SUB R109489 AND R113732 OR R113733) (ALSO ORDER (2) R72586)
16	R48253	2	PINION	(SUB FOR R35498)
17	R35500	1	BEARING HOUSING W/O BEARING	-
