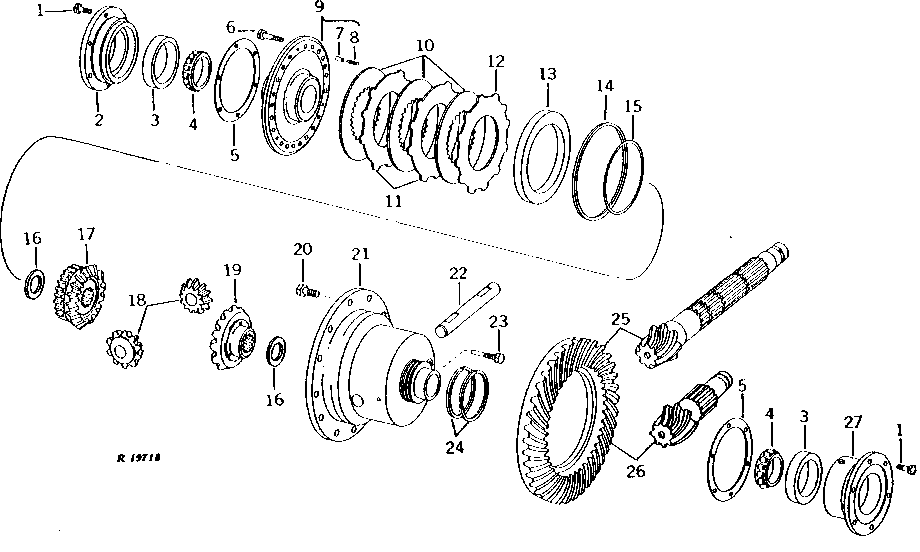

DIFFERENTIAL (DIFFERENTIAL LOCK) [02D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R41049	12	Cap Screw	(SUB FOR R43459) (SUB R52634)
2	R43186	1	Bearing Housing W/O Bearing	-
3	JD8214	1	Bearing Cup	(A) L.H.
3	JD8214	1	Bearing Cup	R.H.
4	JD9019	1	BEARING CONE	(A) L.H.
4	JD9019	1	BEARING CONE	R.H.
5	R35501	1	Shim	0.08MM (.003")
5	R35502	1	Shim	0.13MM (.005")
5	R35503	1	Shim	0.25MM (.010")
6	R43369	12	Self-Locking Screw	(SUB FOR R42407)
7	34H311	3	Spring Pin	1/4" X 7/8"
8	R34863	3	SPRING	-
9	AR88242	1	Cover	(A) (MARKED R43184) (SUB FOR AR43243)
10	AR88550	3	Disk	(SUB FOR AR43086) (SUB RE29429, R43340 AND (2) R43343)
11	R43343	2	Clutch Plate	-
12	R43340	1	Plate	-
13	R43337	1	Piston	-
14	R43339	1	Washer	-
15	R46004	1	Packing	-
16	R72586	1	Thrust Washer	(SUB FOR R52157 OR R66788)
17	R90869	1	Bevel Gear	(SUB FOR R48252, R52156 OR R66317) (SUB R112169 AND R113732 OR R113733) (ALSO ORDER (2) R72586)
18	R48253	2	PINION	-
19	R64257	1	Bevel Gear	(SUB FOR R48251 OR R52155) (SUB R109489 AND R113732 OR R113733) (ALSO ORDER (2) R72586)
20	R43368	12	Cap Screw	-
21	AR43114	1	Housing	(MARKED R43002 OR R43003) (SUB AR111163 AND R113732 OR R113733) (ALSO ORDER JD8298, JD8962, R73274, R94631 AND (3) 34H311)
22	R58424	1	Pinion Shaft	(SUB FOR R43344 OR R52154)
23	R70236	1	CAP SCREW	(SUB FOR R41050)
24	R36881	2	Ring	-
25	AR43006	1	GEAR	(MATCHED SET) (SYNCRO-RANGE) (MARKED R43023 AND R43024)
26	AR63373	1	BEVEL GEAR DRIVE	(MATCHED SET) (POWER SHIFT) (MARKED R43023 AND R43031) (SUB FOR AR43007)
27	R43345	1	Bearing Housing W/O Bearing	-

DIFFERENTIAL (DIFFERENTIAL LOCK) [02D16]

Нет текстового описания
