COWL PANEL, PLATFORMS AND SEALING BAFFLES [03C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

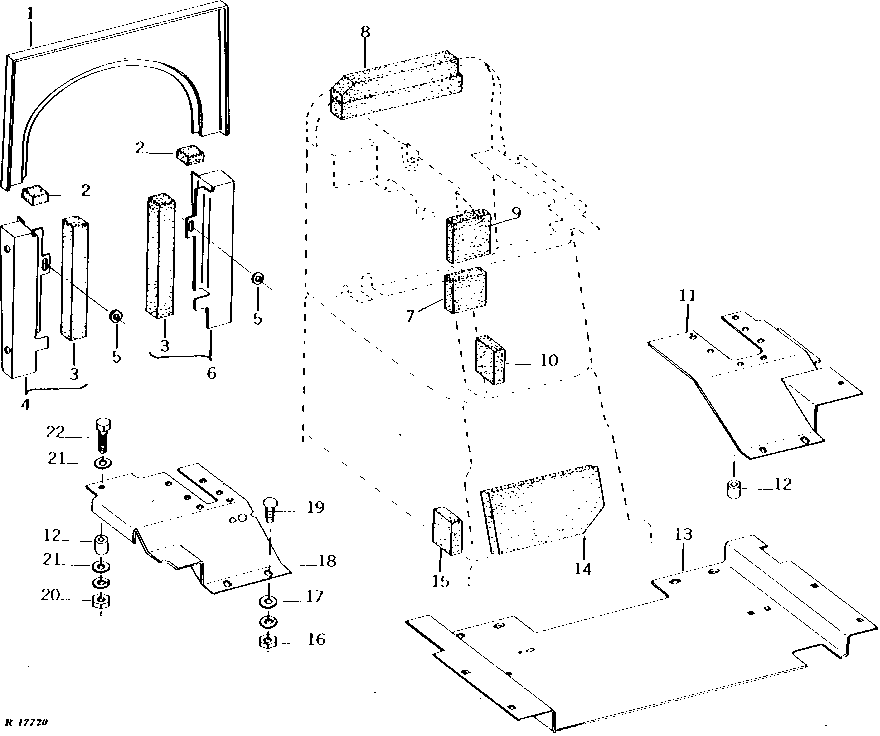

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR51589	1	Panel	COWL
2	-	2	Part 2	25 X 25 X 60MM (1" X 1" X 2-3/8") (MAKE FROM R30937)
3	-	2	Part 3	38 X 38 X 262MM (1-1/2" X 1-1/2" X 10-5/16") (MAKE FROM R47941)
4	AR51210	1	Panel	UPPER FRONT, L.H.
5	R48378	2	Washer	-
6	AR51209	1	Panel	UPPER FRONT, R.H.
7	R45397	1	Insulator	HOLE IN CLUTCH HOUSING
8	R45395	1	FOAM PAD	CONTROL SUPPORT, UPPER FRONT
8	R45396	1	FOAM PAD	CONTROL SUPPORT, LOWER FRONT
9	R48737	1	FOAM PAD	THROTTLE ROD IN CONTROL SUPPORT
10	R46904	1	Isolator	BRAKE PRESSURE PIPE HOLE
11	AR53144	1	EXTENSION	PLATFORM, R.H. (SUB FOR AR50820) (SUB AR63181, 12H303, 19H1900 AND 24H1136)
12	28H1525	2	BUSHING	3/8" X 1.06"
13	R47899	1	PLATFORM	(NLA)
14	R36415	1	ISOLATOR	CLUTCH HOUSING REAR
15	R46904	1	Isolator	STEERING RETURN PIPE HOLE
16	14H1076	10	Nut	3/8"
16	12H304	10	Lock Washer	3/8"
17	24H1305	10	Washer	13/32" X 13/16" X 0.065"
18	AR64281	1	Extension	PLATFORM, L.H. (SUB FOR AR50821) (SUB AR64281, 12H303, 19H1900 AND 24H1136)
19	03H1519	10	Bolt	3/8" X 1"
20	14H1076	2	Nut	3/8"
20	12H304	2	Lock Washer	3/8"
21	24H1305	4	Washer	13/32" X 13/16" X 0.065"
22	19H1726	2	Cap Screw	3/8" X 2-1/4"
