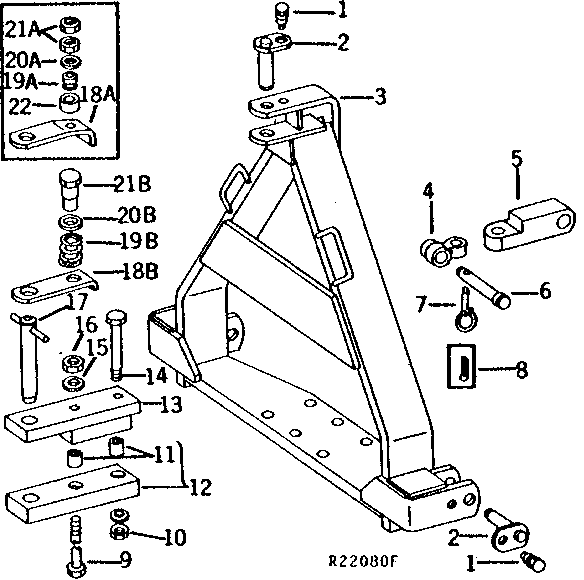

COUPLER (POWER WEIGHT TRANSFER HITCH) [02I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR48110	3	CAP SCREW	(SUB R45997 AND 19H2898) (USE WITH PIN WITH 3/8" THICK HANDLE)
1	AR40865	3	CAP SCREW	(SUB R45997 AND 19H2898) (USE WITH PIN WITH 1/4" THICK HANDLE)
2	AR48111	3	PIN	(SUB FOR AR39783) (ALSO ORDER R45997 AND 19H2898)
3	AR99336	1	COUPLING	(SUB FOR AR46828) (NLA)
4	R44848	1	PIVOT	-
5	R44847	1	PIVOT	-
6	R58261	1	Pin	(SUB FOR R40516 OR R53562) (ALSO ORDER AR60372)
7	AR60372	1	Quick Lock Pin	-
8	11M7038	1	Cotter Pin	0.248" X 1.575"
9	19H3234	1	Cap Screw	3/4" X 8-1/2"
9	19H1988	1	Cap Screw	3/4" X 6"
10	14H794	1	Nut	3/4"
10	12H236	1	Lock Washer	3/4"
11	R35479	2	Bushing	-
12	AR47567	1	DRAWBAR	-
13	AR46256	1	STRAP	-
14	19H1988	1	Cap Screw	3/4" X 6"
15	12H236	1	Lock Washer	3/4"
16	14H794	1	Nut	3/4"
17	AR69988	1	Pin Fastener	(SUB FOR AR937R)
22	R47044	1	BUSHING	-
18A	R36609	1	RETAINER	(SUB R54064, F304R, 19H1988 AND 24H1513)
18A	R54064	1	Retainer	-
19A	A350R	1	SPRING	-
19B	F304R	1	Compression Spring	-
20A	24H1395	1	Washer	25/32" X 1-7/16" X 0.060"
20B	24H1513	1	Washer	1-13/32" X 2" X 0.060"
21A	R40121	2	Lock Nut	-
21B	R54065	1	NUT	(SUB R72433)

COUPLER (POWER WEIGHT TRANSFER HITCH) [02I23]
