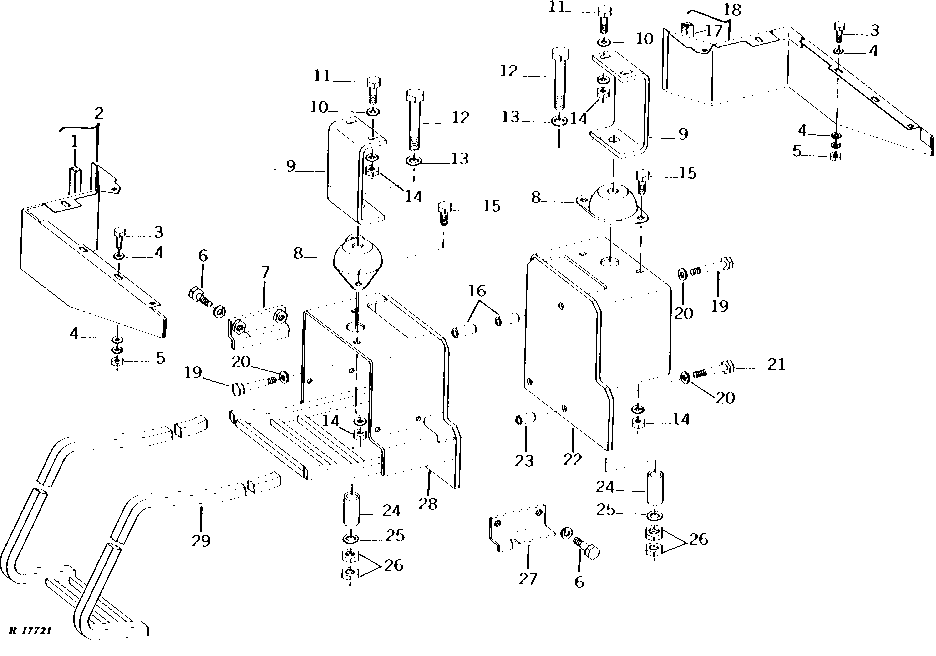

CAB FRONT SUPPORT AND STEP (HINSON) [03C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	13 X 13 X 111MM (1/2" X 1/2" X 4-3/8") (MAKE FROM R47941)
2	AR53138	1	KIT	(INCLUDES AR53141, R42045 AND ATTACHING HARDWARE)
2	AR53140	1	PANEL	(SUB FOR AR50856)
3	19H1936	6	Cap Screw	3/8" X 3/4"
4	24H1305	12	Washer	13/32" X 13/16" X 0.065"
5	14H1076	6	Nut	3/8"
5	12H304	1	Lock Washer	3/8"
6	19H1731	4	Cap Screw	3/8" X 1"
6	12H304	4	Lock Washer	3/8"
7	AR51347	1	CLAMP	-
8	AR51810	2	SUPPORT	-
9	R47983	2	BRACKET	-
10	24H1227	4	Washer	17/32" X 13/16" X 0.060"
11	19H1815	4	Cap Screw	1/2" X 1-1/4"
12	19H2026	2	CAP SCREW	3/4" X 4"
13	24H1402	2	Washer	25/32" X 1-7/8" X 1/4"
14	14H1040	8	Nut	1/2"
14	12H301	8	Lock Washer	1/2"
15	19H1792	4	Cap Screw	1/2" X 1"
16	28H1787	3	Spacer	1/2" X 1.55"
17	-	1	Part 21	13 X 13 X 111MM (1/2" X 1/2" X 4-3/8") (MAKE FROM R47941)
18	AR53137	1	KIT	(INCLUDES AR53141, R42045 AND ATTACHING HARDWARE)
18	AR53139	1	PANEL	(SUB FOR AR50855) (INCLUDES AR53141, R42045 AND ATTACHING HARDWARE)
19	19H1974	3	Cap Screw	1/2" X 2-3/4"
20	24H1211	6	Washer	9/16" X 1-3/8" X 0.105"
20	19H1974	6	Cap Screw	1/2" X 2-3/4"
21	19H2644	2	Cap Screw	1/2" X 2-1/2"
22	AR50868	1	SUPPORT	-
23	28H3395	3	Bushing	1/2" X .19"
24	R44221	2	BUSHING	(NLA)
25	24H1396	2	Washer	25/32" X 1-1/2" X 0.105"
26	14H794	2	Nut	3/4"
27	AR51346	1	CLAMP	-
28	AR50869	1	SUPPORT	-
29	AR50870	1	STEP	-
..	AR53141	2	CLIP	(NLA)
..	R42045	1	Clamp	HEATER HOSE
