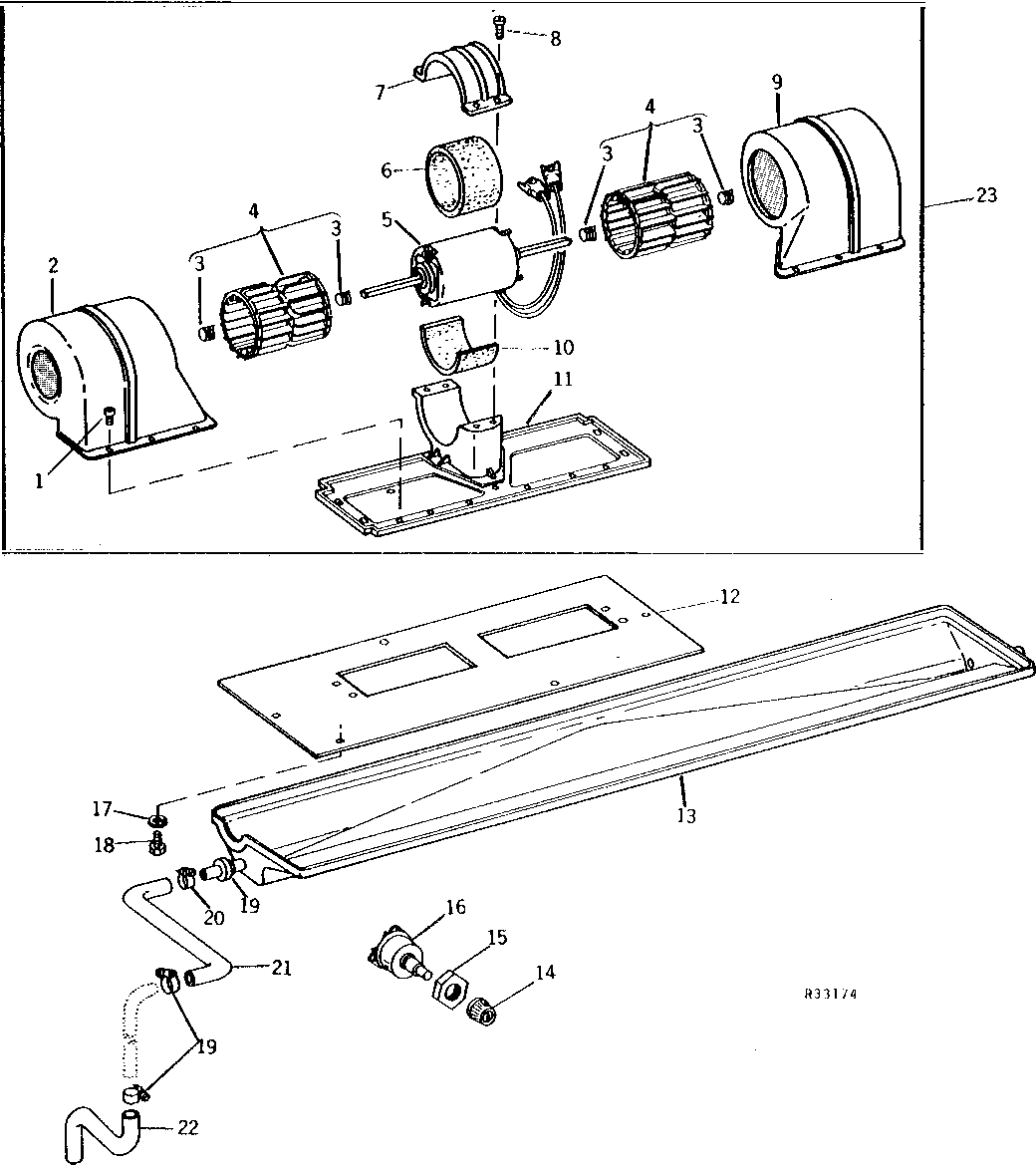

BLOWER AND CONDENSATE TRAY (HINSON) [03B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H315	8	Lock Washer	0.164"
1	21H1158	8	Screw	0.164" X 1/2"
1	37H32	8	SCREW	0.190" X 3/8"
1	14H605	8	Nut	0.164"
2	AR69012	2	HOUSING	-
3	-	4	Part 6	(INCLUDED IN AR66028)
4	AR66028	2	IMPELLER	(SUB FOR AR66034)
5	RE223623	2	MOTOR	(SUB FOR AR62497)
6	R57606	1	CUSHION	-
7	R59450	1	RETAINER	-
8	37H80	4	Screw	0.190" X 1/2"
9	AR69011	2	HOUSING	-
10	-	1	Part 13	102MM (4") (MAKE FROM R57606)
11	AR74020	2	BASE	(SUB FOR AR68974) (INCLUDES R59450 AND 37H80)
12	R48885	2	PANEL	-
13	AR52323	1	CONTAINER	-
13	R49858	1	ISOLATOR	-
13	-	2	Part 19	6 X 13 X 51MM (1/4" X 1/2" X 2") (MAKE FROM R48884)
13	-	1	Part 18	6 X 13 X 965MM (1/4 X 1/2" X 38") (MAKE FROM R48884)
13	-	1	Part 17	6 X 13 X 1016MM (1/4" X 1/2" X 40") (MAKE FROM R48884)
14	AR69370	1	KNOB	(SUB FOR AR49969)
15	R27296	1	Nut	-
16	AR53155	1	SWITCH	(SUB FOR AR49964 OR AR53154)
17	12H302	4	Lock Washer	1/4"
18	19H1227	4	Cap Screw	1/4" X 1/2"
19	R48902	2	GROMMET	-
20	AR21837	6	Clamp	(SUB TY22465)
21	R48913	2	HOSE	-
22	R49293	2	HOSE	-
23	AR74019	2	BLOWER	(SUB FOR AR49968, AR53156, AR62561, AR66027 OR AR68973)
..	R44302	1	Tie Band	-

BLOWER AND CONDENSATE TRAY (HINSON) [03B10]

Нет текстового описания
