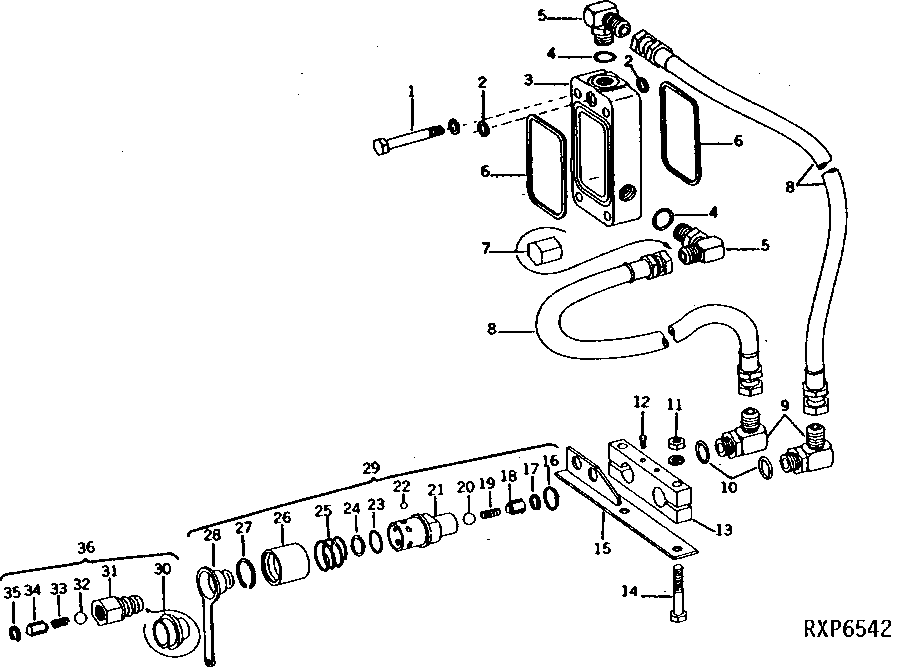

AUXILIARY OUTLET COUPLER (EARLY DESIGN) [02J16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H292	4	Lock Washer	1/2"
1	19H2106	4	Cap Screw	7/16" X 2-3/4"
2	F2741R	2	Packing	-
3	R54312	1	Manifold	(SUB FOR R47307)
4	R26375	2	O-Ring	-
5	AR27738	1	ELBOW FITTING	-
6	R40922	2	Back-Up Ring	-
7	R31736	2	Fitting	-
8	AN140274	2	HYDRAULIC HOSE	-
9	AT32332	2	Elbow Fitting	(SUB FOR AR26763)
10	R26375	2	O-Ring	-
11	14H1076	2	Nut	3/8"
11	12H304	2	Lock Washer	3/8"
12	A5748R	2	SCREW	(SUB 37H92)
13	N140340	1	BRACKET	-
14	19H1726	2	Cap Screw	3/8" X 2-1/4"
15	AN140262	1	SUPPORT	-
16	R36946	2	Snap Ring	-
17	R59633	2	WEAR RING	(SUB FOR R28204)
18	R28085	2	GUIDE	(SUB RE15361)
19	R28084	2	SPRING	-
20	D2361R	2	Ball	13MM (1/2")
21	R32353	1	SOCKET OUTLET	-
22	400R	12	Ball	6MM (1/4")
23	R495R	2	O-Ring	-
24	R26485	2	BACK-UP RING	-
25	R32354	2	SPRING	(SUB RE15361)
26	R32355	2	SLEEVE	-
27	R32356	2	SNAP RING	-
28	R32419	2	COVER	-
29	AR47331	2	HYDR.QUICK COUPLER SOCKET	(SUB RE15361)
30	R28006	2	CAP	-
31	R27430	1	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
31	R45630	1	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
32	D2361R	2	Ball	13MM (1/2")
33	R28084	2	SPRING	-
34	R28085	2	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
35	R59633	2	WEAR RING	(SUB FOR R28204)
36	AR30210	1	HYDR.QUICK COUPLER PLUG	PRESSURE, (SUB AR93819)
36	AR47643	1	BREAKAWAY COUPLER	RETURN, (SUB AR93820)
..	R47309	1	SHIFTER ROD	-
