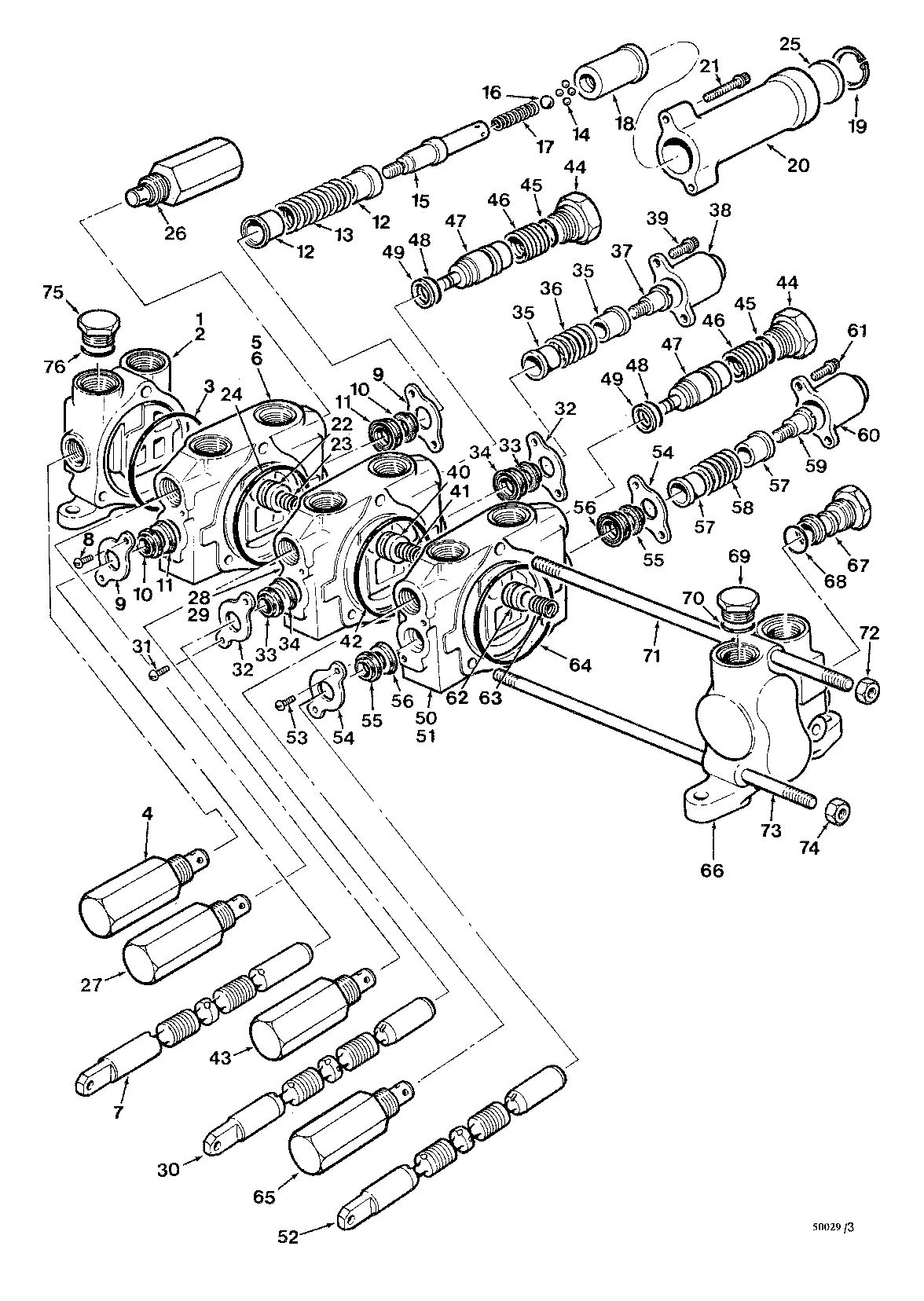

VALVE ASSEMBLY 3 SPOOL CONTROL MAIN W/DOZER CLAMP ( CE2001 - 974173) 2481-022/10 [2481-022/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	842850600	1	SECTION - INLET	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	843103500	1	VALVE-RELIEF - (3375 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
5	842945300	1	SECTION - CLAMP	-
6	-------	1	O-RING	-
7	-------	1	O-RING	-
8	840083800	2	SCREW -	-
9	840081600	2	PLATE -	-
10	-------	2	O-RING	-
11	-------	2	O-RING	-
12	840081700	2	SEAT - SPRING	-
13	842934900	1	SPRING -	-
14	842858600	4	BALL	-
15	842935100	1	DETENT PIN	-
16	842935200	1	BALL - SPRING	-
17	842935600	1	SPRING -	-
18	F432930	1	SLEEVE-SPRING	-
19	843107900	1	RETAINING RING -	-
20	F432931	1	CAP	-
21	790107200	2	SCREW -	-
22	842657600	1	POPPET - C.V	-
23	842656200	1	SPRING -	-
24	-------	1	O-RING	-
25	843108500	1	SPACER -	-
26	843103400	1	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
27	843108000	1	VALVE-RELIEF - (3600 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
28	842934600	1	SECTION - DOZER	-
29	-------	1	O-RING	-
30	-------	1	O-RING	-
31	840083800	2	SCREW -	-
32	840081600	2	PLATE -	-
33	-------	2	O-RING	-
34	-------	2	O-RING	-
35	840081700	2	SEAT - SPRING	-
36	842934900	1	SPRING -	-
37	840081800	1	BOLT - SPECIAL	-
38	840081500	1	CAP -	-
39	790107200	2	SCREW -	-
40	842657600	1	POPPET - C.V	-
41	842656200	1	SPRING -	-
42	-------	1	O-RING	-
43	843103400	1	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
44	790025100	1	CAP -	-
45	842658600	1	O-RING -	-
46	842700400	1	SPRING -	-
47	790011900	1	POPPET -	-
48	842657500	1	O-RING -	-
49	842654000	1	BACK-UP RING -	-
50	842934600	1	SECTION - DOZER	-
51	-------	1	O-RING	-
52	-------	1	O-RING	-
53	840083800	2	SCREW -	-
54	840081600	2	PLATE -	-
55	-------	2	O-RING	-
56	-------	2	O-RING	-
57	840081700	2	SEAT - SPRING	-
58	842934900	1	SPRING -	-
59	840081800	1	BOLT - SPECIAL	-
60	840081500	1	CAP -	-
61	790107200	2	SCREW -	-
62	842657600	1	POPPET - C.V	-
63	842656200	1	SPRING -	-
64	-------	1	O-RING	-
65	843103400	1	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\VALVE ASSEMBLY - CAB TILT SEE CAB MT & TILT\VALVE ASSEMBLY GRAPPLE MOTOR CONTROL ( 10EC1184 - ) 2481-058/10
66	842852000	1	SECTION - OUTLET	-
67	842851500	1	PLUG -	-
68	842851600	1	O-RING -	-
69	840083500	1	PLUG*1-1/16-12 -	-
70	-------	1	O-RING	-
71	790025600	1	TIE ROD -	-
72	810087800	2	NUT*1/2-20UNF	-
73	790025500	2	TIE ROD -	-
74	810114200	4	NUT*7/16-20UNF	-
75	F432158	1	Plug	-
76	-------	1	O-RING	-
-	842851900	2	ANTI-VOID - ASSY	-
-	843134300	1	KIT - SEAL	-
-	811868300	1	VALVE - CONTROL (3 SPOOL)	-
