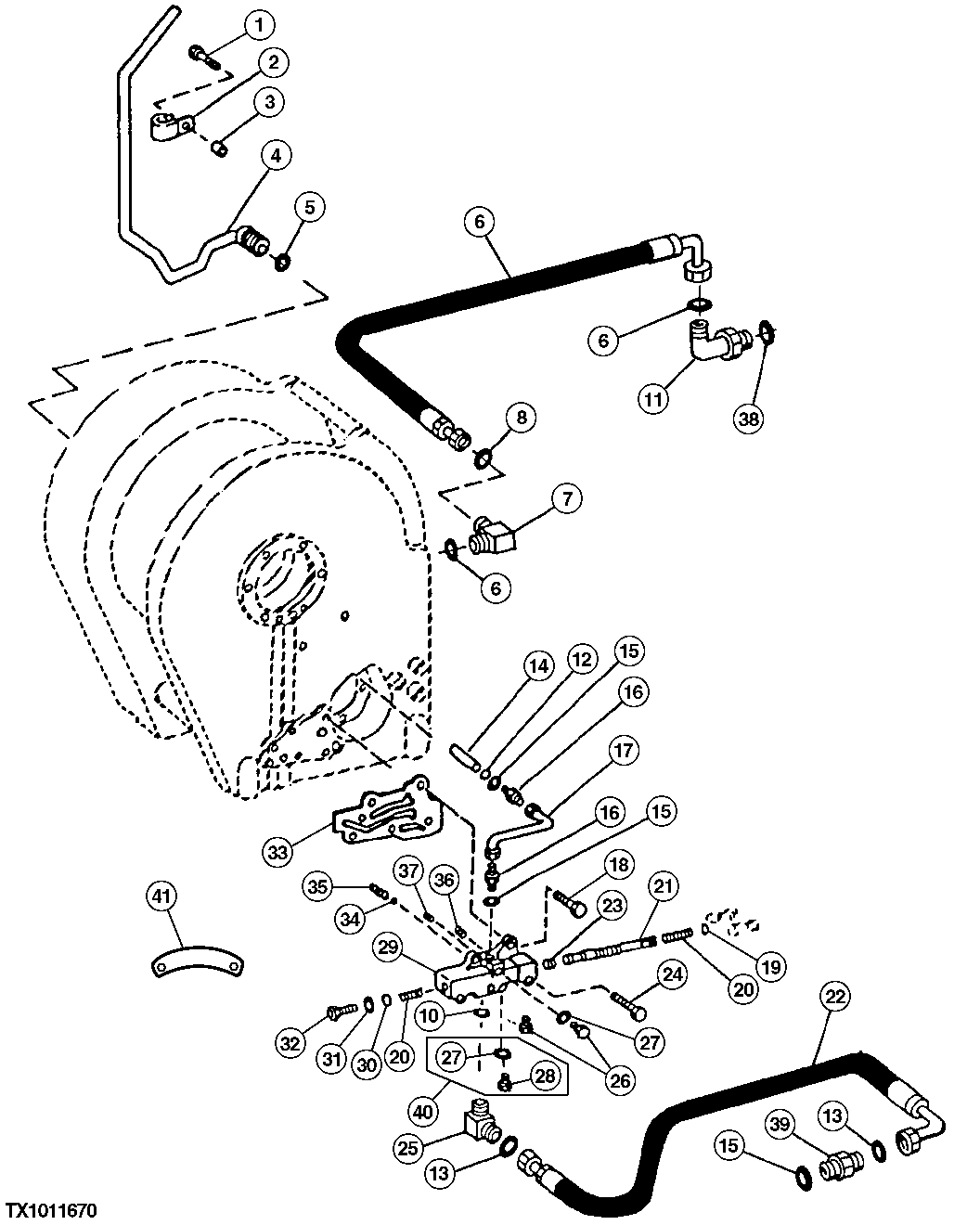

Winch Control Valve Hydraulic Oil Lines and Hoses (Model 6000 Winch)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2735	1	Cap Screw	1/2" X 2"
2	AH96317	1	Clip	-
3	28H2514	1	Bushing	0.546" X 0.840" X 3/4"
4	AT64412	1	Tube	AND FITTING
5	U10289	1	O-Ring	37.694 X 3.531 mm (1-31/64" X 0.139")
6	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070"), (NOT FOR OEM)
7	38H1404	1	Elbow Fitting	(NOT FOR OEM)
7	38H1148	1	Fitting Plug	(LESS WINCH)
8	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116"), (NOT FOR OEM)
9	AT372016	1	Hydraulic Hose	1" X 1193 mm (47") X 1", (NOT FOR OEM), (SUB FOR AT180477)
10	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
11	38H1162	1	Adapter Fitting	(SUB FOR 38H1006)
12	R394R	1	O-Ring	12.370 X 2.616 mm (0.487" X 0.103")
13	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (NOT FOR OEM)
14	T43646	1	Bushing	10.500 X 12.700 X 87.122 mm (0.413" X 1/2" X 3.430")
15	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	R39249	2	Adapter Fitting	-
17	AT42508	1	Oil Line	-
18	19H3239	2	Cap Screw	3/8" X 1-1/4"
19	R56464	1	O-Ring	13.945 X 2.616 mm (0.549" X 0.103"), (SUB FOR R459R)
20	T43645	2	Spring	-
21	T48805	1	Valve Spool	-
22	AT180616	1	Hydraulic Hose	13/16" X 2463 mm (97") X 13/16", (NOT FOR OEM)
23	15H558	1	Pipe Plug	1/8"
24	19H2732	3	Cap Screw	3/8" X 2-3/4"
25	38H1005	1	Elbow Fitting	(NOT FOR OEM)
25	38H1147	1	Fitting Plug	(LESS WINCH)
26	R27094	1	Drain Plug	-
27	R26286	2	O-Ring	10.516 X 1.829 mm (0.414" X 0.072")
28	R27094	1	Drain Plug	-
29	T120226	1	Housing	-
30	M3048T	1	Shim	0.61 MM (.024")
31	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097"), (FOR OEM) (CONTROL VALVE SPRING RETAINING PLUG)
31	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
32	T58477	1	Fitting	-
33	T212118	1	Gasket	(SUB FOR T52973)
34	R26552	1	Ball	7.938 mm (5/16")
35	T44784	1	Spring	-
36	R44648	1	Fitting	6.350 mm (1/4")
37	15H558	1	Pipe Plug	1/8"
38	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
39	38H1173	1	Adapter Fitting	-
40	RE56323	3	Fitting Plug	-
41	T162531	1	Shim	-

Winch Control Valve Hydraulic Oil Lines and Hoses (Model 6000 Winch)
