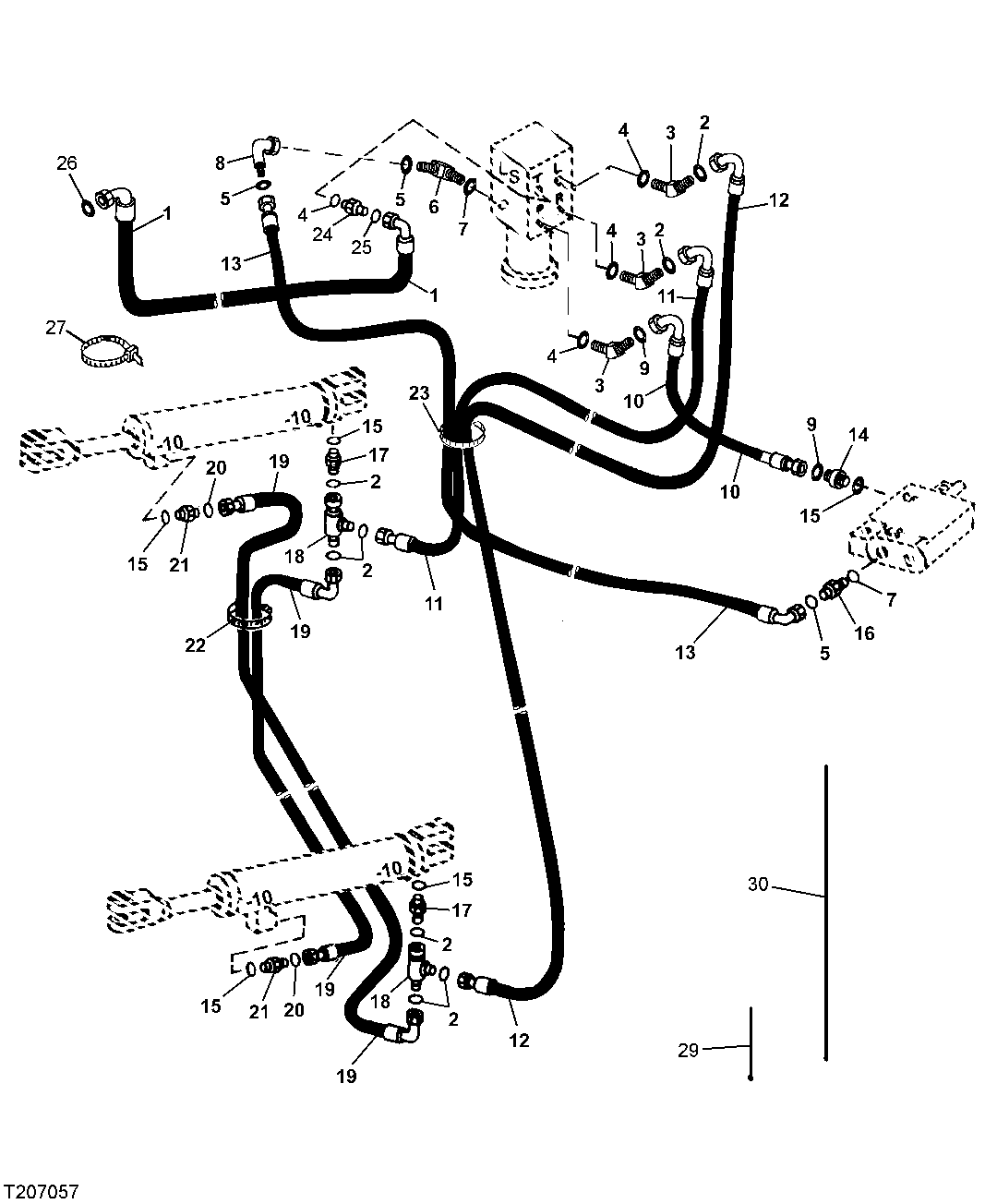

STEERING VALVE TO CYLINDER HYDRUALIC HOSES (DD)(SN 580171- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT320379	1	Hydraulic Hose	13/16" X 2882 mm (113-1/2") X 1"
1	AT307312	1	Hydraulic Hose	1" X 1879 mm (74") X 13/16", (SUB FOR AT306958 AND AT195361)
1	AT313989	1	Hydraulic Hose	1" X 2260 mm (89") X 30.1752", (TO BULKHEAD TEE)
1	AT195361	1	Hydraulic Hose	13/16" X 1879 mm (74") X 13/16", (SUB FOR AT306102)(TO HYDRAULIC FILTER)
1	AT306791	1	Hydraulic Hose	(TO BULKHEAD TEE), (SUB FOR AT306102)
2	T77857	1	O-Ring	-
3	38H1046	3	Elbow Fitting	-
4	R26375	4	O-Ring	-
5	T77814	3	O-Ring	-
6	38H1044	1	Elbow Fitting	-
7	R28782	2	O-Ring	-
8	38H1093	1	Elbow Fitting	-
9	T77857	1	O-Ring	-
9	T77932	1	O-Ring	-
10	AT195483	1	Hydraulic Hose	13/16" X 1104 mm (43-1/2") X 13/16"
10	AT195453	1	Hydraulic Hose	13/16" X 1104 mm (43-1/2") X 1"
11	AT195452	1	Hydraulic Hose	13/16" X 1536 mm (60-1/2") X 13/16"
12	AT180219	1	Hydraulic Hose	13/16" X 1397 mm (55") X 13/16"
13	AT195294	1	Hydraulic Hose	9/16" X 1155 mm (45-1/2") X 9/16"
14	38H1174	1	Adapter Fitting	-
14	38H1162	1	Adapter Fitting	-
15	R26906	5	O-Ring	-
16	38H1159	1	Adapter Fitting	-
17	38H1174	2	Adapter Fitting	-
18	38H1031	2	Tee Fitting	-
19	AT158165	2	Hydraulic Hose	17.4752" X 1673 mm (65-3/4") X 13/16"
20	T77613	2	O-Ring	-
21	38H1172	2	Adapter Fitting	-
22	R44302	1	Tie Band	-
23	N189220	1	Tie Band	-
24	38H1602	1	Elbow Fitting	-
24	38H1046	1	Elbow Fitting	-
24	38H1046	1	Elbow Fitting	-
25	T77857	1	O-Ring	-
25	T77857	1	O-Ring	-
25	T77932	1	O-Ring	-
26	T77857	1	O-Ring	-
26	T77857	1	O-Ring	-
26	R29936	1	O-Ring	-
27	R76477	1	Tie Band	-
28	-	1	Part 41	(NOT ILLUSTRATED)
29	H77698	1	Tie Band	-
30	R76477	1	Tie Band	-

STEERING VALVE TO CYLINDER HYDRUALIC HOSES (DD)(SN 580171- )
