Start Aid, Rotate And Hydraulic Filter Wiring Harness (596700 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT311475	1	Wiring Harness	Engine Start Aid Hydraulic Reservoir
2	19M7865	1	Screw	M8 X 16
3	T74412	1	Clamp	-
4	14M7298	1	Flange Nut	M8
5	19M7785	1	Screw	M10 X 25
6	T74410	1	Clamp	-
7	R44302	1	Tie Band	-
8	57M11081	1	Elec. Connector Housing	To Load Center
9	RE43737	1	Elec. Connector Accessory	To Load Center
10	RE43737	1	Elec. Connector Accessory	Rotate Solenoid Right
11	RE43737	1	Elec. Connector Accessory	Rotate Solenoid Left
12	AR94101	1	Diode	Rotate Solenoid Right Diode
13	-	1	Part 13	Rotate Solenoid Right Diode, ORDER MWC100010
14	AR94101	1	Diode	Rotate Solenoid Left Diode
15	-	1	Part 15	Rotate Solenoid Left Diode, ORDER MWC100010
16	R78053	1	Electrical Connector Assy	Hydraulic Dump Valve Solenoid
17	RE43737	1	Elec. Connector Accessory	Hydraulic Dump Valve Solenoid
18	R78053	1	Electrical Connector Assy	Ether Start Aid Solenoid
19	RE43737	1	Elec. Connector Accessory	Ether Start Aid Solenoid
20	AR94101	1	Diode	Hydraulic Dump Valve Solenoid Diode
21	-	1	Part 21	Hydraulic Dump Valve Solenoid Diode, ORDER MWC100010
22	R78052	1	Electrical Connector Assy	To Hydraulic Oil Filter Restriction Switch
23	AT103399	1	Diode	Hydraulic Dump Valve Blocking Diode
24	-	1	Part 24	Hydraulic Dump Valve Blocking Diode, ORDER MWC100009
25	57M7850	1	Elec. Connector Housing	To Hydraulic Oil Temperature Sender

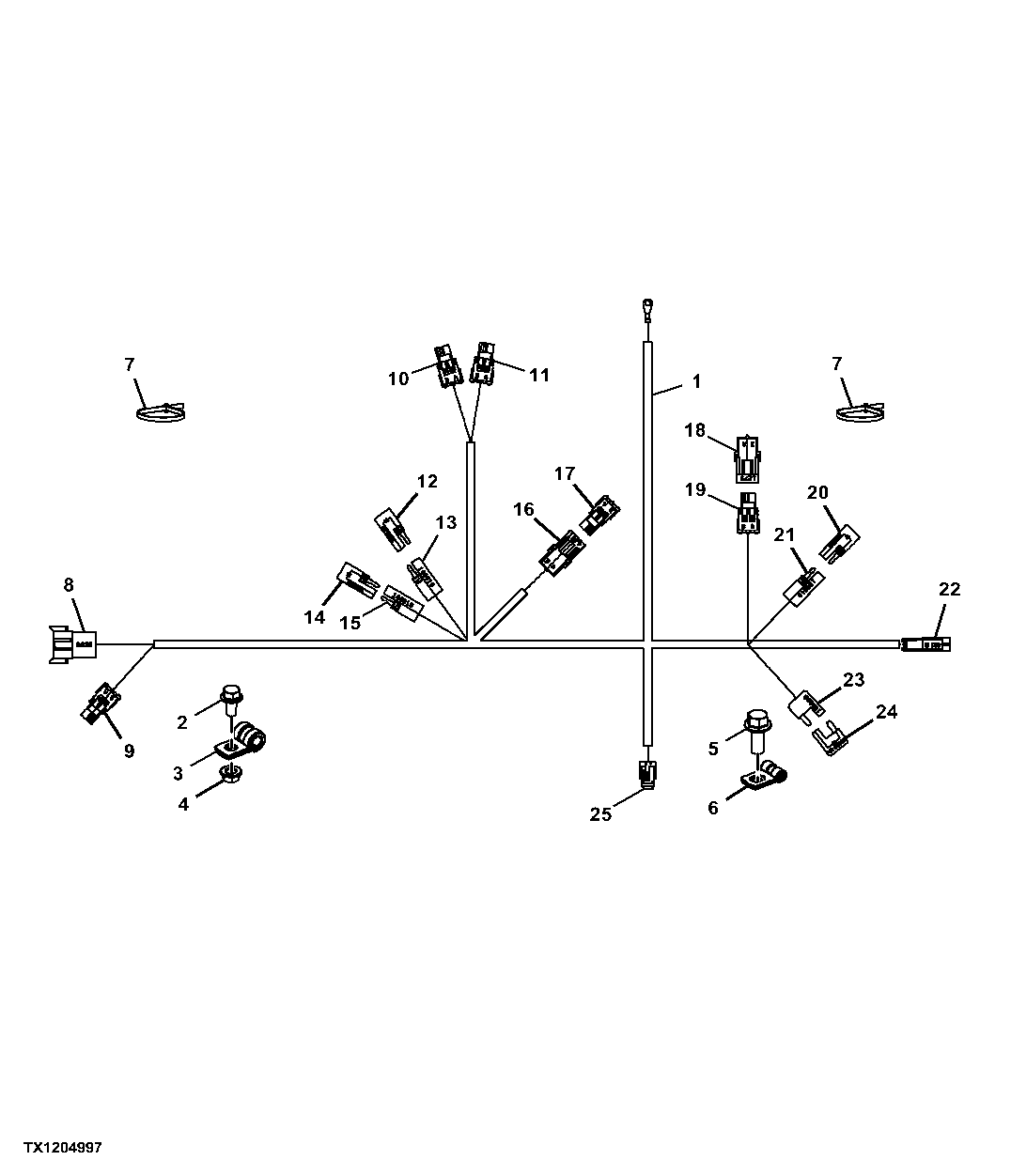

Start Aid, Rotate And Hydraulic Filter Wiring Harness (596700 - )
