Start Aid, Rotate And Hydraulic Filter Wiring Harness ( - 596699)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT197457	1	Wiring Harness	Engine Start Aid Hydraulic Reservoir
1	AT196448	1	Wiring Harness	Engine Start Aid Hydraulic Reservoir
2	19M7865	1	Screw	M8 X 16
3	T74412	1	Clamp	-
4	14M7298	1	Flange Nut	M8
5	19M7785	1	Screw	M10 X 25
6	T74410	1	Clamp	-
7	R44302	1	Tie Band	-
8	RE43737	1	Elec. Connector Accessory	Rotate Solenoid Right
9	RE43737	1	Elec. Connector Accessory	Rotate Solenoid Left
10	R78053	1	Electrical Connector Assy	Tong Open
11	R78053	1	Electrical Connector Assy	Tong Close
12	AR94101	1	Diode	Rotate Solenoid Right Diode
13	-	1	Part 14	Rotate Solenoid Right Diode, ORDER MWC100010
14	AR94101	1	Diode	Rotate Solenoid Left Diode
15	-	1	Part 16	Rotate Solenoid Left Diode, ORDER MWC100010
16	57M11081	1	Elec. Connector Housing	To Load Center
17	RE43737	1	Elec. Connector Accessory	To Load Center
18	R78053	1	Electrical Connector Assy	Tong Open/Close
19	-	1	Part 20	Tong Open Diode, ORDER MWC100010
20	AR94101	1	Diode	Tong Open Diode
21	AR94101	1	Diode	Tong Close Diode
22	-	1	Part 23	Tong Close Diode, ORDER MWC100010
23	R78053	1	Electrical Connector Assy	Hydraulic Pump Valve Solenoid
24	R78053	1	Electrical Connector Assy	Ether Start Aid Solenoid
25	-	1	Part 26	Hydraulic Dump Valve Solenoid Diode, ORDER MWC100010
26	AR94101	1	Diode	Hydraulic Dump Valve Solenoid Diode
27	57M7850	1	Elec. Connector Housing	To Hydraulic Oil Temperature Sender
28	AT103399	1	Diode	Hydraulic Dump Valve Blocking Diode
29	-	1	Part 30	Hydraulic Dump Valve Blocking Diode, ORDER MWC100009

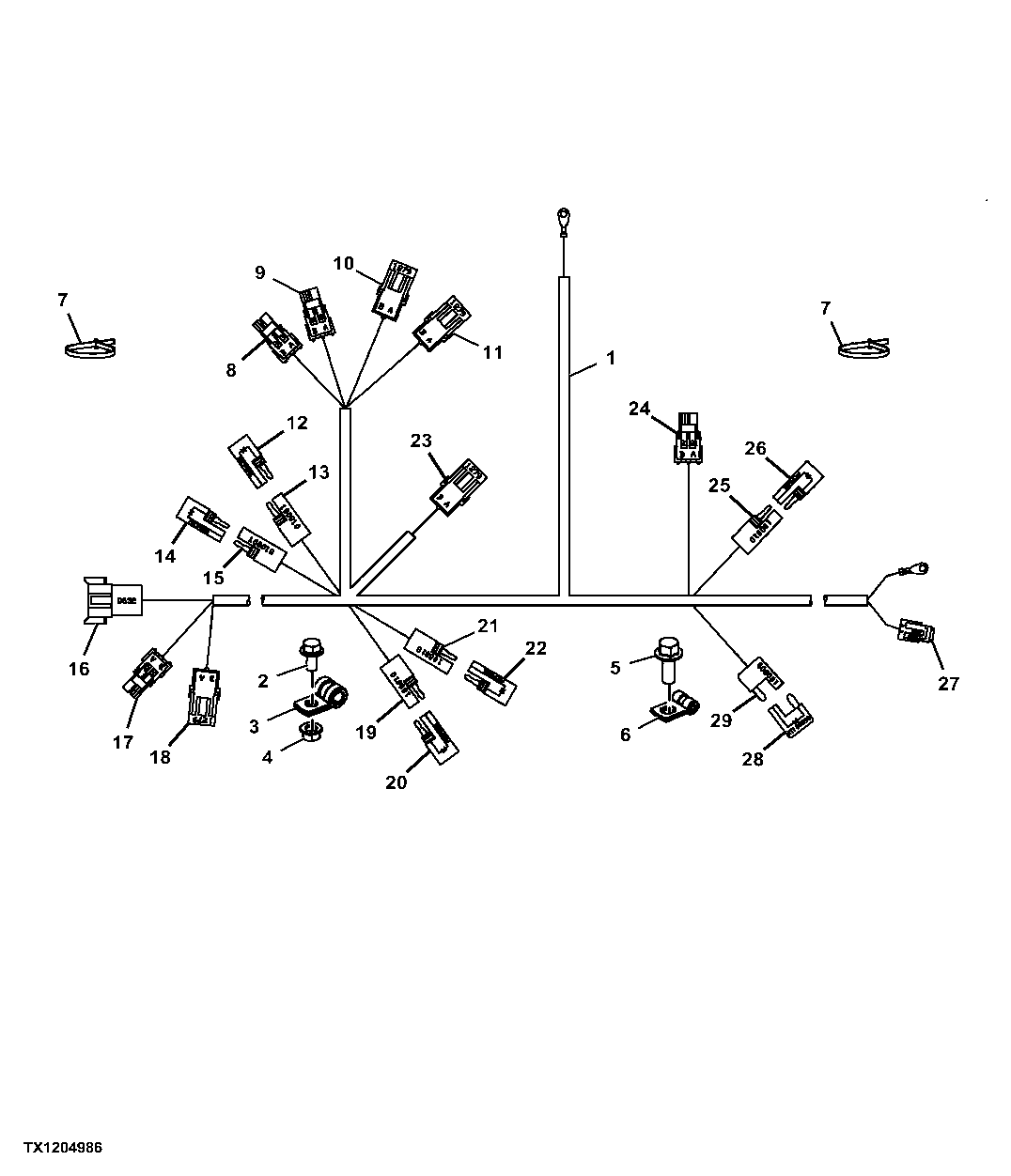

Start Aid, Rotate And Hydraulic Filter Wiring Harness ( - 596699)
