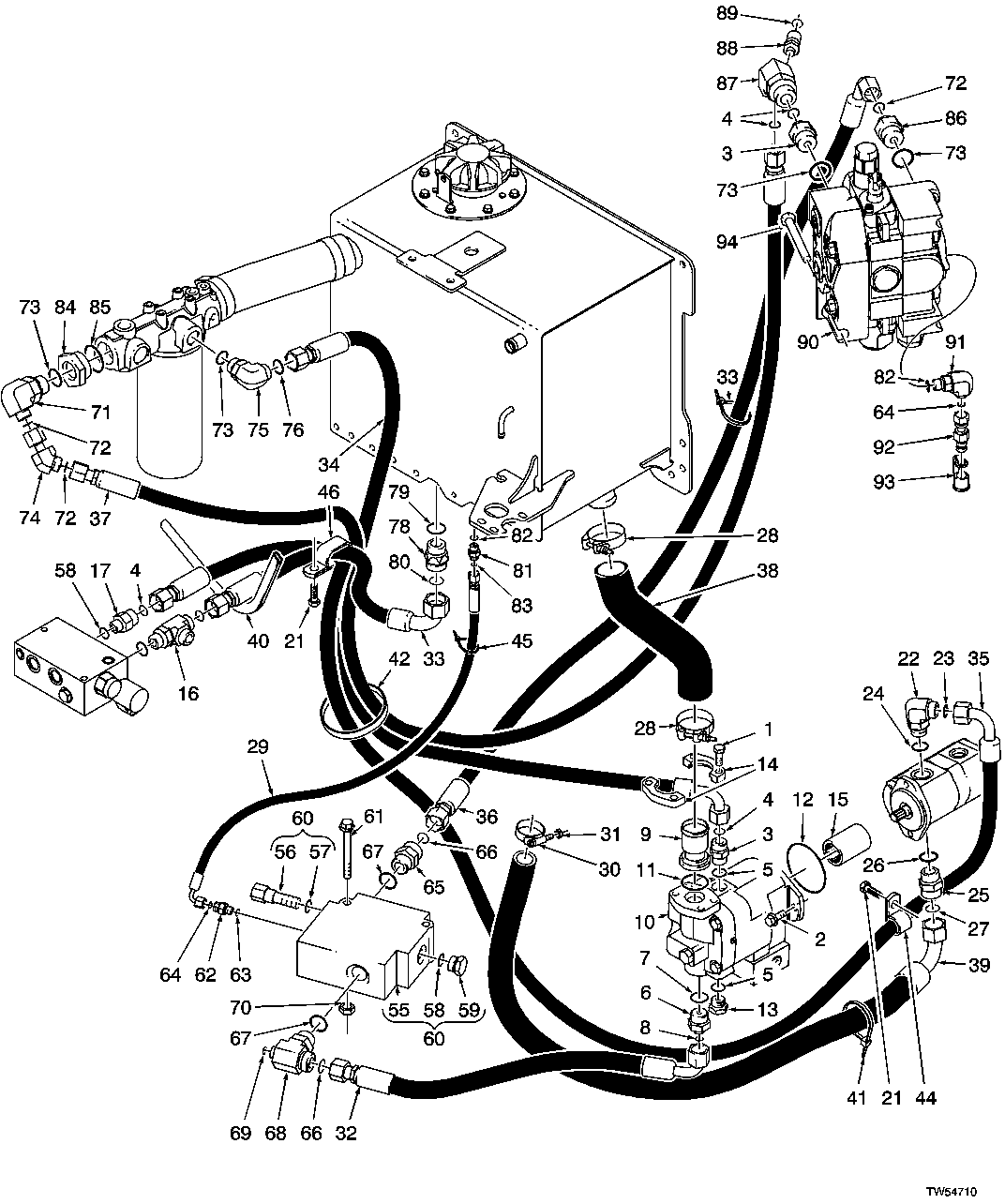

Main Hydraulic Lines, Steering Priority Valve and Pump (Direct Drive) (596700 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2898	4	Cap Screw	1/2" X 1-1/4", (SUB FOR 19H1815)
2	19M7789	2	Screw	M12 X 30
3	38H1163	2	Adapter Fitting	-
4	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
5	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
6	38H1176	1	Adapter Fitting	ON COLD START DUMP VALVE
7	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116"), ON COLD START DUMP VALVE
8	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), ON COLD START DUMP VALVE
9	AT133585	1	Adapter Fitting	-
10	-	1	Part 10	-
11	B3690R	1	O-Ring	47.219 X 3.531 mm (1-55/64" X 0.139")
12	F37030242	1	O-Ring	101.194 X 3.531 mm (3-63/64" X 0.139")
13	R27175	1	Drain Plug	-
14	X51H-24	2	Flange Fitting	(SUB FOR T47649)
15	YZ104199	1	Splined Coupling	-
16	-	1	Part 16	(SEE: COOLER HYDRAULIC LINES)
17	38H1193	1	Adapter Fitting	-
21	19M7783	2	Screw	M10 X 16
22	38H1007	1	Elbow Fitting	-
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
24	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
25	38H1164	1	Adapter Fitting	-
26	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
27	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
28	AT105289	2	Clamp	-
29	AT115942	1	Hydraulic Hose	9/16" X 914 mm (36") X 9/16", (SUB FOR AT140240)
30	AT152191	1	Hose Clamp	-
31	14H786	1	Nut	1/4"
32	AT183605	1	Hydraulic Hose	13/16" X 546 mm (21-1/2") X 13/16"
33	AT318213	1	Hydraulic Hose	30.1752" X 1540 mm (60-3/4") X 36.5252"
34	AT318651	1	Hydraulic Hose	30.1752" X 1758 mm (69-1/4") X 30.1752"
35	AT318653	1	Hydraulic Hose	30.1752" X 3232 mm (127-1/4") X 30.1752"
36	AT323167	1	Hydraulic Hose	13/16" X 1879 mm (74") X 13/16"
37	AT323240	1	Hydraulic Hose	13/16" X 3556 mm (140") X 30.1752"
38	AT323863	1	Hose	-
39	AT327480	1	Hydraulic Hose	-
40	T58056	1	Isolator	(SUB FOR DT5061)
41	H77698	1	Tie Band	-
42	N189220	2	Tie Band	-
43	R44302	1	Tie Band	-
44	R46667	1	Clamp	-
45	R76477	1	Tie Band	-
46	T149597	1	Clamp	-
55	-	1	Part 44	-
56	AT138198	1	Pressure Relief Valve	-
57	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
58	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
59	R27474	1	Drain Plug	-
60	AT348935	1	Flow Control Hyd. Valve	(SUB FOR AT160595)
61	19M7811	2	Screw	M10 X 90
62	38H1159	1	Adapter Fitting	-
63	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
64	T77814	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
65	38H1175	1	Adapter Fitting	-
66	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
67	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
68	38H1551	1	Tee Fitting	-
69	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
70	14M7400	1	Lock Nut	M10
71	38H1013	1	Elbow Fitting	-
72	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
73	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
74	38H1603	1	Elbow Fitting	-
75	38H1007	1	Elbow Fitting	-
76	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
78	AT318185	1	Check Valve	(OIL COOLER BYPASS VALVE)
79	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
80	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
81	38H1168	1	Adapter Fitting	-
82	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
83	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
84	T27517	1	Adapter Fitting	-
85	U13639	1	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
86	38H1175	1	Adapter Fitting	-
87	T215013	1	Tee Fitting	-
88	AT321211	1	Fitting	-
89	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
90	-	1	Part 78	BLADE VALVE
91	38H1009	1	Elbow Fitting	-
92	RE60700	1	Diagnostic Coupling	-
93	R77175	1	Cover	-
94	19M8183	3	Cap Screw	M10 X 90
