Load Center Harness, Torque Converter (596700 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT311744	1	Wiring Harness	Includes Fuse Box Load Center
2	19M7774	2	Screw	M6 X 12
3	AT141011	1	Relay	12 VOLT, START
4	12M7081	2	Lock Washer	6.400 mm
5	14M7194	2	Nut	M6
6	AN153773	1	Diode	Module
7	99M7069	1	Fuse	25 AMP
7	99M7065	3	Fuse	15 AMP
7	99M7064	2	Fuse	7.50 AMP
7	57M7237	1	Fuse	40 AMP
7	57M7125	4	Fuse	5 AMP
7	57M7121	6	Fuse	10 AMP
7	57M7120	2	Fuse	20 AMP
8	AT168878	9	Relay	12 VOLT WITH DIODE
8	57M7429	1	Elec. Connector Terminal	-
8	T190198	1	Relay Module	-
9	AT75769	2	Relay	-
10	19M7774	4	Screw	M6 X 12
11	19M7775	4	Screw	M6 X 16
12	T78787	5	Clamp	-
13	19M7864	5	Screw	M8 X 12
14	19M7784	6	Screw	M10 X 20
15	T162675	6	Clamp	-
16	R78052	1	Electrical Connector Assy	Differential Lock Sensor
17	57M7667	1	Electrical Connector Assy	To Transmission Harness
18	57M7262	1	Elec. Connector Housing	Display Monitor
19	57M8203	1	Electrical Connector Assy	Display Monitor
20	57M7864	1	Electrical Connector Assy	Secondary Steering Diode Module
21	RE12364	1	Electrical Connector Assy	Primary Throttle
22	L38138	1	Elec. Connector Housing	Key Switch
23	RE12363	1	Electrical Connector Assy	To Roof Harness
24	RE12363	1	Electrical Connector Assy	Service Brake Pressure Switch
25	57M7761	1	Elec. Connector Housing	To Roof Harness
26	57M9452	1	Elec. Connector Housing	Starter Relay
27	57M9452	1	Elec. Connector Housing	Starter Relay
28	57M9361	1	Elec. Connector Housing	Park Brake Rocker Switch
29	RE12364	1	Electrical Connector Assy	De-Clutch Pressure Switch
30	R78053	1	Electrical Connector Assy	Monitor Buzzer
31	AT103399	1	Diode	Starter Relay Diode
31	-	1	Part 39	Starter Relay Diode, ORDER MWC100009
33	AT103399	1	Diode	Alternator Excitation Diode
33	-	1	Part 41	Alternator Excitation Diode, ORDER MWC100009
34	T28585	1	Electrical Connector Assy	Horn
35	57M9458	1	Elec. Connector Housing	Secondary Steer Lights
36	RE12364	1	Electrical Connector Assy	To Secondary Steering Harness
37	R78053	1	Electrical Connector Assy	Grapple Rotate
38	57M8010	1	Electrical Connector Assy	Ether and Hydraulic Reservoir
39	57M7850	1	Elec. Connector Housing	To Transmission Temperature
40	57M7748	1	Elec. Connector Housing	To Engine Harness
41	57M8408	1	Elec. Connector Housing	To Engine Harness
42	T107135	1	Electrical Connector Assy	Front Washer Pump
43	T107135	1	Electrical Connector Assy	Rear Washer Pump
44	R78053	1	Electrical Connector Assy	Accessory Connector
45	RE12363	1	Electrical Connector Assy	To Roof Harness
46	57M8008	1	Electrical Connector Assy	To Roof Harness
47	RE12363	1	Electrical Connector Assy	Secondary Steering Controller
48	R78055	1	Electrical Connector Assy	Secondary Steering Controller
49	57M7275	1	Elec. Connector Housing	Transmission Controller
50	57M8018	1	Electrical Connector Assy	Can Terminator
51	57M7279	1	Elec. Connector Housing	Transmission Controller
52	-	1	Part 61	Service Expert
52	R165983	1	Nut	Service Expert
53	57M9362	1	Elec. Connector Housing	Neutral Start Relay
54	-	1	Part 64	Accessory Connector, ORDER MWC100030
55	57M9452	1	Elec. Connector Housing	Accessory Connector
56	57M9362	1	Elec. Connector Housing	Reverse Alarm Relay
57	57M8014	1	Elec. Connector Housing	Calibrate
58	RE12363	1	Electrical Connector Assy	Air Seat
58	R78053	1	Electrical Connector Assy	Air Seat
59	57M8010	1	Electrical Connector Assy	Bump Shifter
60	57M8018	1	Electrical Connector Assy	To Rotate Lever Switch
60	57M8019	1	Elec. Connector Terminal	To Rotate Lever Switch
61	0361307294	1	Elec. Connector Accessory	To Transmission Controller
62	57M9361	1	Elec. Connector Housing	Differential Lock Switch
63	57M10913	1	Elec. Connector Housing	De-Clutch Switch

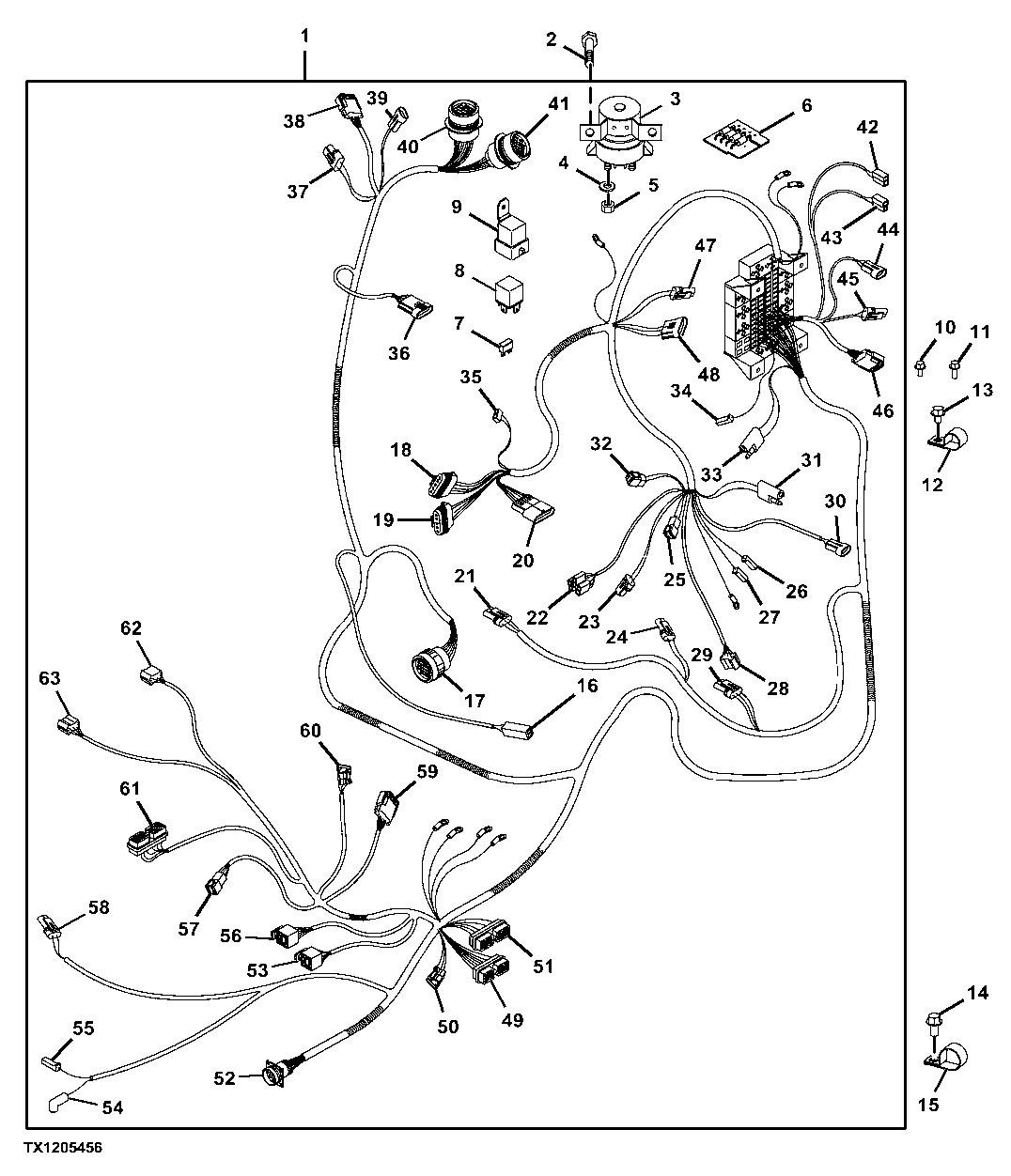

Load Center Harness, Torque Converter (596700 - )
