Открытый узел

Load Center Harness, Torque Converter (580171 - 596699)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT302185	1	Wiring Harness	Load Center Includes Fuse Box, SUB FOR AT197474
1	AT193376	1	Cab Wiring Harness	Load Center Includes Fuse Box
1	AT303340	1	Wiring Harness	Load Center Includes Fuse Box
2	19M7774	1	Screw	M6 X 12
3	R44302	1	Tie Band	-
4	H77698	1	Tie Band	-
5	19M7784	6	Screw	M10 X 20
6	19M7881	1	Screw	M8 X 20
7	19M7862	4	Screw	M6 X 20
8	T120536	4	Clamp	-
9	T120536	1	Clamp	-
10	19M7864	2	Screw	M8 X 12
11	T78787	1	Clamp	-
12	28H3389	1	Spacer	0.423" X 0.675" X 1"
13	19M7806	1	Screw	M10 X 50
14	T162675	2	Clamp	-
15	R41440	1	Grommet	-
16	H77698	1	Tie Band	-
17	R78054	1	Electrical Connector Assy	Diagnostic Connector
18	57M8015	2	Electrical Connector Assy	Service Expert
19	57M8010	1	Electrical Connector Assy	Ether and Hydraulic Reservoir
20	57M9452	1	Elec. Connector Housing	Accessory Connector
21	-	1	Part 23	Accessory Connector, ORDER MWC100030
22	RE12363	1	Electrical Connector Assy	Air Seat
23	57M8014	1	Elec. Connector Housing	Calibrate
24	RE12364	1	Electrical Connector Assy	Diagnostic Connector
25	RE12364	1	Electrical Connector Assy	To Secondary Steering Harness
26	57M7253	1	Elec. Connector Housing	Transmission Controller J3
26	R104701	1	Elec. Connector Terminal	-
27	57M10913	1	Elec. Connector Housing	De-Clutch Switch
28	57M9361	1	Elec. Connector Housing	Differential Lock Switch
29	57M8021	1	Electrical Connector Assy	Tong Open/Close
30	57M8018	1	Electrical Connector Assy	To Rotate Lever Switch
31	57M8010	2	Electrical Connector Assy	Bump Shifter
32	57M7253	1	Elec. Connector Housing	Transmission Controller J1
32	R104701	1	Elec. Connector Terminal	-
33	57M7667	1	Electrical Connector Assy	To Transmission Harness
34	57M8012	1	Electrical Connector Assy	De-Clutch Pressure Switch
35	RE12363	1	Electrical Connector Assy	Service Brake Pressure Switch
36	AR94101	1	Diode	Park Brake Reset Diode
37	R78053	1	Electrical Connector Assy	Grapple Rotate
38	57M8008	1	Electrical Connector Assy	To Roof Harness
39	RE12363	1	Electrical Connector Assy	To Roof Harness
40	R78053	1	Electrical Connector Assy	Accessory Connector
41	T107135	1	Electrical Connector Assy	Rear Washer Pump
42	T107135	1	Electrical Connector Assy	Front Washer Pump
43	AT103399	1	Diode	Alternator Excitation Diode
44	-	1	Part 48	Alternator Excitation Diode, ORDER MWC100009
45	T28585	1	Electrical Connector Assy	Horn
46	R78053	1	Electrical Connector Assy	Ether Aid Switch
47	R78053	1	Electrical Connector Assy	Monitor Buzzer
48	57M9452	1	Elec. Connector Housing	Starter Relay
49	RE12363	1	Electrical Connector Assy	Ground From Starter To Cab
50	RE12363	1	Electrical Connector Assy	To Roof Harness
51	L38138	1	Elec. Connector Housing	Key Switch
52	57M9361	1	Elec. Connector Housing	Park Brake Switch
53	57M7262	1	Elec. Connector Housing	Display Monitor MM1
53	R104846	1	Elec. Connector Terminal	-
53	57M8203	1	Electrical Connector Assy	Display Monitor MM2
53	R104846	1	Elec. Connector Terminal	-
54	57M7262	1	Elec. Connector Housing	Transmission Temperature Switch
55	57M7850	1	Elec. Connector Housing	DFR Speed Sensor
56	57M7748	1	Elec. Connector Housing	To Engine Harness
57	57M8422	1	Elec. Connector Terminal	Tong Open/Close
58	57M8012	1	Electrical Connector Assy	To Roof Harness
59	-	1	Part 66	Park Brake Reset Diode, ORDER MWC100010
60	R78053	1	Electrical Connector Assy	To Roof Harness
61	57M7761	1	Elec. Connector Housing	To Roof Harness
62	AT103399	1	Diode	Starter Relay Diode
63	57M7275	2	Elec. Connector Housing	Transmission Controller J2
63	R104701	1	Elec. Connector Terminal	-
64	M84972	4	Nut	-
65	-	1	Part 73	Starter Relay Diode, ORDER MWC100009
66	57M8131	1	Electronic Terminator	Can Resistor Not Illustrated

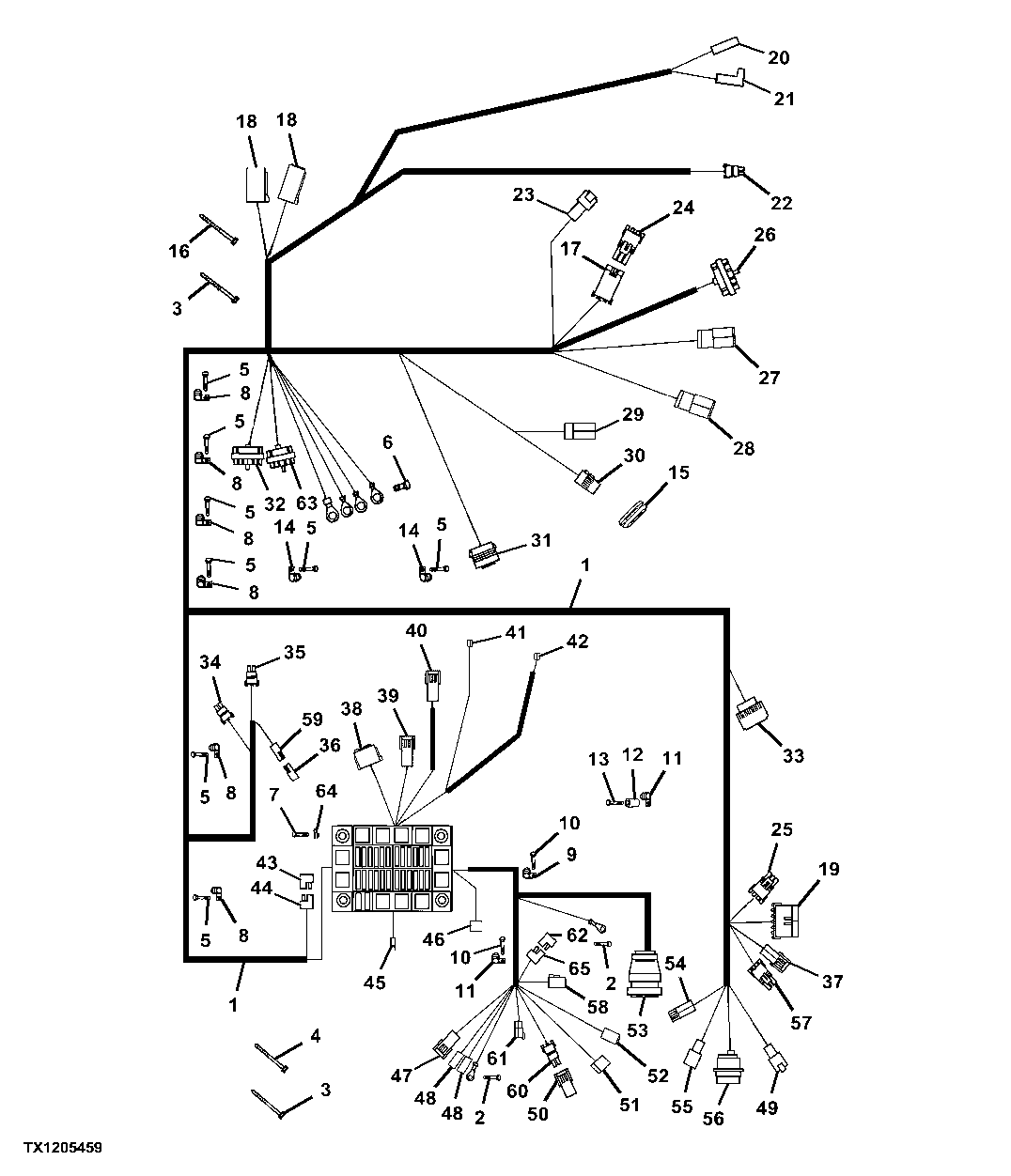

Load Center Harness, Torque Converter (580171 - 596699)
