Открытый узел

HYDRAULIC RESERVOIR, RETURN FILTER, BRACKETS & FITTINGS (TC) (CABLE) (581096-596699)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T191207	1	Filler Cap	(SUB FOR T121028)
2	T103461	1	Sealing Washer	-
3	AT161638	1	Strainer	-
4	T39155	1	Snap Ring	-
5	T164946	8	Screw	-
6	24H1136	8	Washer	11/32" X 11/16" X 0.065"
7	AT223275	1	Housing	-
8	19M7835	1	Screw	M10 X 35
9	24M7296	1	Washer	10.500 X 30 X 2.500 mm
10	28H3400	1	Spacer	0.546" X 0.840" X 9/16"
11	14H778	2	Nut	0.190"
12	AT60644	1	Sender	-
13	R26375	4	O-Ring	-
14	AT129419	1	Switch Kit	-
15	AT197341	1	Filter Head	-
15	AT144993	1	Filter Head	-
16	U12547	3	O-Ring	-
16	U12547	2	O-Ring	-
17	Y1912C	1	Adapter Fitting	-
18	T76938	1	O-Ring	-
19	38H1037	1	Elbow Fitting	(USED WITHOUT SECONDARY STEERING)
19	38H1437	1	Tee Fitting	(USED WITH SECONDARY STEERING)
20	R29936	2	O-Ring	-
21	38H1438	1	Tee Fitting	-
22	T77858	3	O-Ring	-
23	AT193966	1	Hydraulic Filter	(SUB FOR AT209204, THIS APPLICATION)
24	-	1	Part 27	(MAKE FROM M87571 BULK MATERIAL, CUT TO LENGTH)
25	AT101565	1	Air Filter	-
26	N115724	2	Elbow Fitting	-
27	T107253	1	Level Gauge	-
28	R27175	1	Drain Plug	-
29	F3171R	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
30	R27175	1	Drain Plug	-
31	AT195055	1	Check Valve	FITTING
32	T77857	2	O-Ring	-
33	R26906	1	O-Ring	-
34	R39112	1	Fitting	-
35	AT152180	1	Drain Valve	(INCLUDES R26906)
36	AR21837	2	Clamp	-
37	-	1	Part 40	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)
38	19H1833	1	Cap Screw	5/8" X 1-1/4"
39	R26448	2	O-Ring	-
40	38H1160	1	Adapter Fitting	-
41	38H1168	1	Adapter Fitting	-
42	T77814	1	O-Ring	-
43	14M7401	6	Lock Nut	M12
44	24M7240	6	Washer	13 X 25 X 3 mm
45	AT195225	1	Support	RIGHT
46	19M7496	6	Cap Screw	M12 X 45
47	03M7083	6	Bolt	M12 X 35
48	AT193941	1	Support	LEFT
49	T179363	1	Gasket	-
50	AT193531	1	Hydraulic Reservoir	(SUB FOR AT193259)(IN CASE BYPASS ELBOW)
51	38H1005	1	Elbow Fitting	-
52	AT210393	1	Check Valve	-

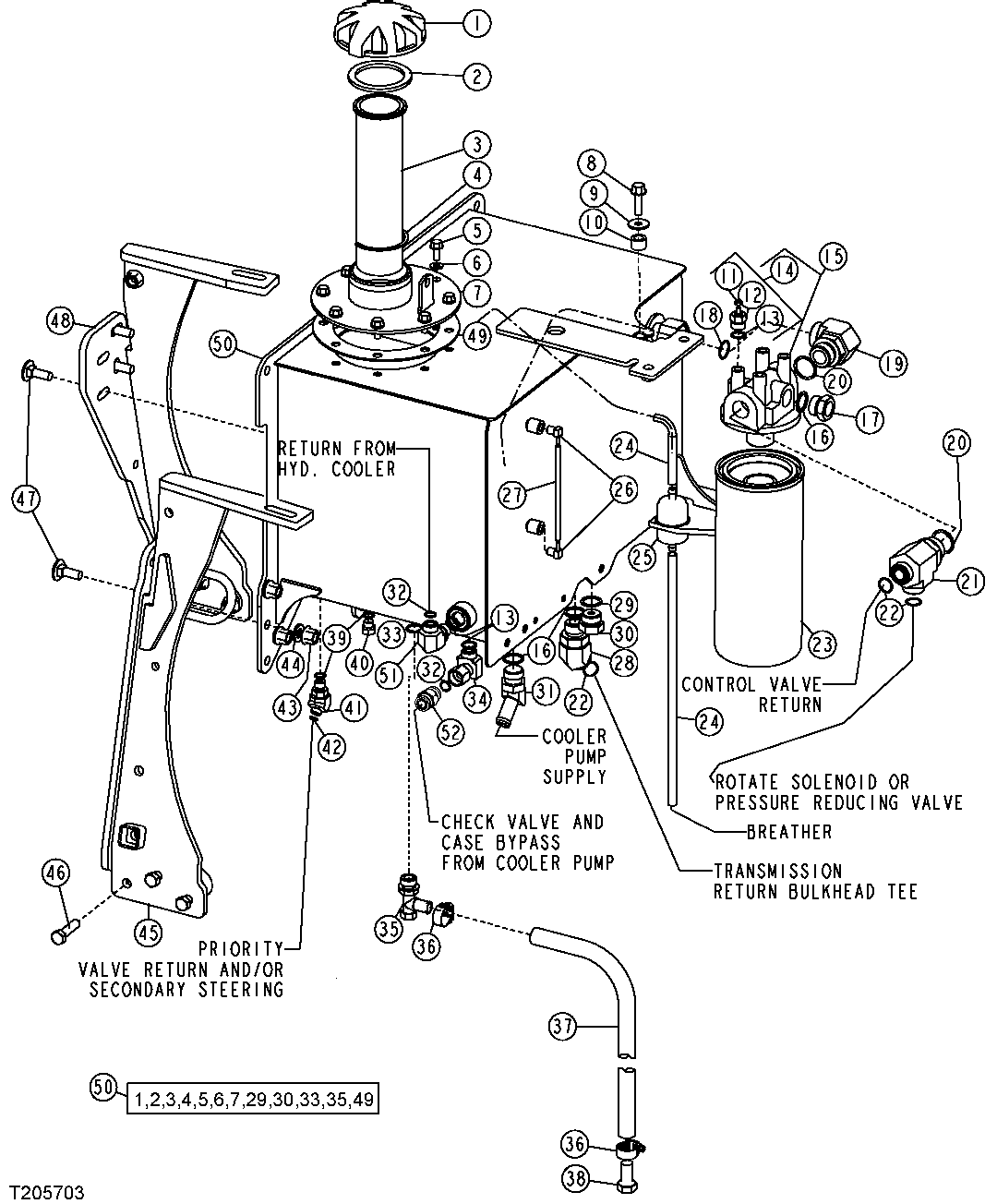

HYDRAULIC RESERVOIR, RETURN FILTER, BRACKETS & FITTINGS (TC) (CABLE) (581096-596699)

Нет текстового описания
