HYDRAULIC RESERVOIR ASSEMBLY (460DG) (TC) (SN 596700- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7083	6	Bolt	M12 X 35
2	14M7401	6	Lock Nut	M12
3	19H1833	1	Cap Screw	5/8" X 1-1/4"
4	19H3869	2	Cap Screw	1/4" X 3/4"
5	19M7166	4	Cap Screw	M10 X 20
6	19M7496	6	Cap Screw	M12 X 45
7	24M7028	4	Washer	10.500 X 20 X 2 mm
8	24M7139	2	Washer	6.400 X 18 X 1.600 mm
9	24M7240	6	Washer	13 X 25 X 3 mm
10	38H1168	1	Adapter Fitting	-
11	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
12	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
13	AH105968	2	Hose Clamp	-
14	AR21837	2	Clamp	-
15	AR68999	1	Elbow Fitting	-
16	AT101565	1	Air Filter	-
17	AT175744	2	Hose Clamp	-
18	AT193941	1	Support	-
19	AT195225	1	Support	-
22	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
23	-	2	Part 21	(MAKE FROM M87571)(CUT TO LENGTH)
24	-	1	Part 22	(MAKE FROM TY22328)(CUT TO LENGTH)
25	T107253	1	Level Gauge	-
26	N115724	2	Elbow Fitting	-
27	R27175	2	Drain Plug	-
28	T210031	1	Hydraulic Hose	-
29	T210566	1	Hydraulic Hose	-
30	U12547	3	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
31	38H1160	1	Adapter Fitting	-
32	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
33	38H1013	1	Elbow Fitting	-
34	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
35	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
36	38H1314	1	Elbow Fitting	-
37	38H1325	1	Elbow Fitting	-
38	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
39	U13639	2	O-Ring	37.465 X 2.997 mm (1.475" X 0.118")
40	38H1047	1	Elbow Fitting	-
41	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
42	T77832	1	Self-Locking Screw	-
43	38H1052	1	Elbow Fitting	-
44	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
45	38H1083	1	Elbow Fitting	-
46	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
47	T132838	1	Fitting Plug	-
48	T27517	1	Adapter Fitting	-
49	AH75159	1	Fitting	-
50	AT210393	1	Check Valve	-

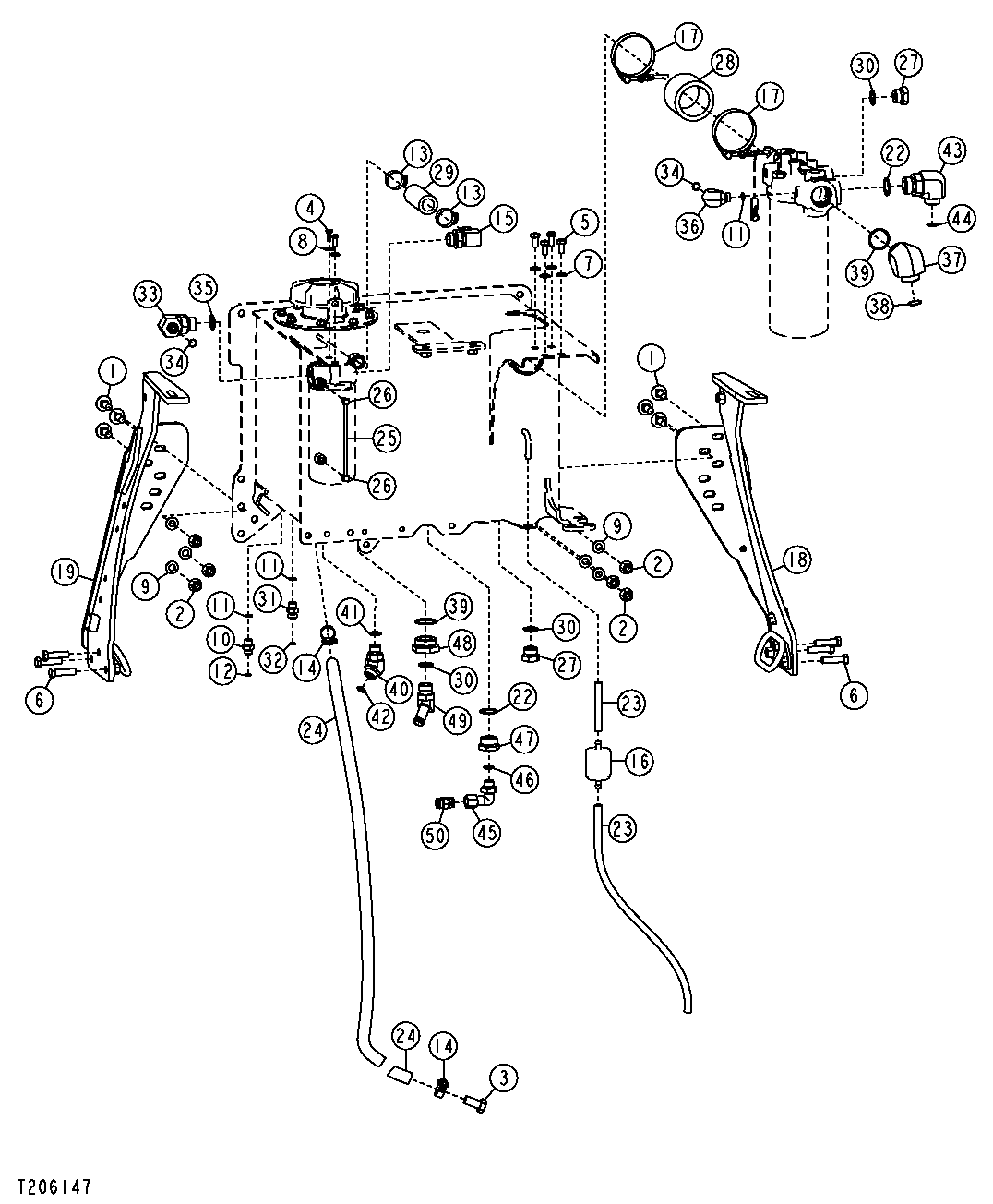

HYDRAULIC RESERVOIR ASSEMBLY (460DG) (TC) (SN 596700- )
