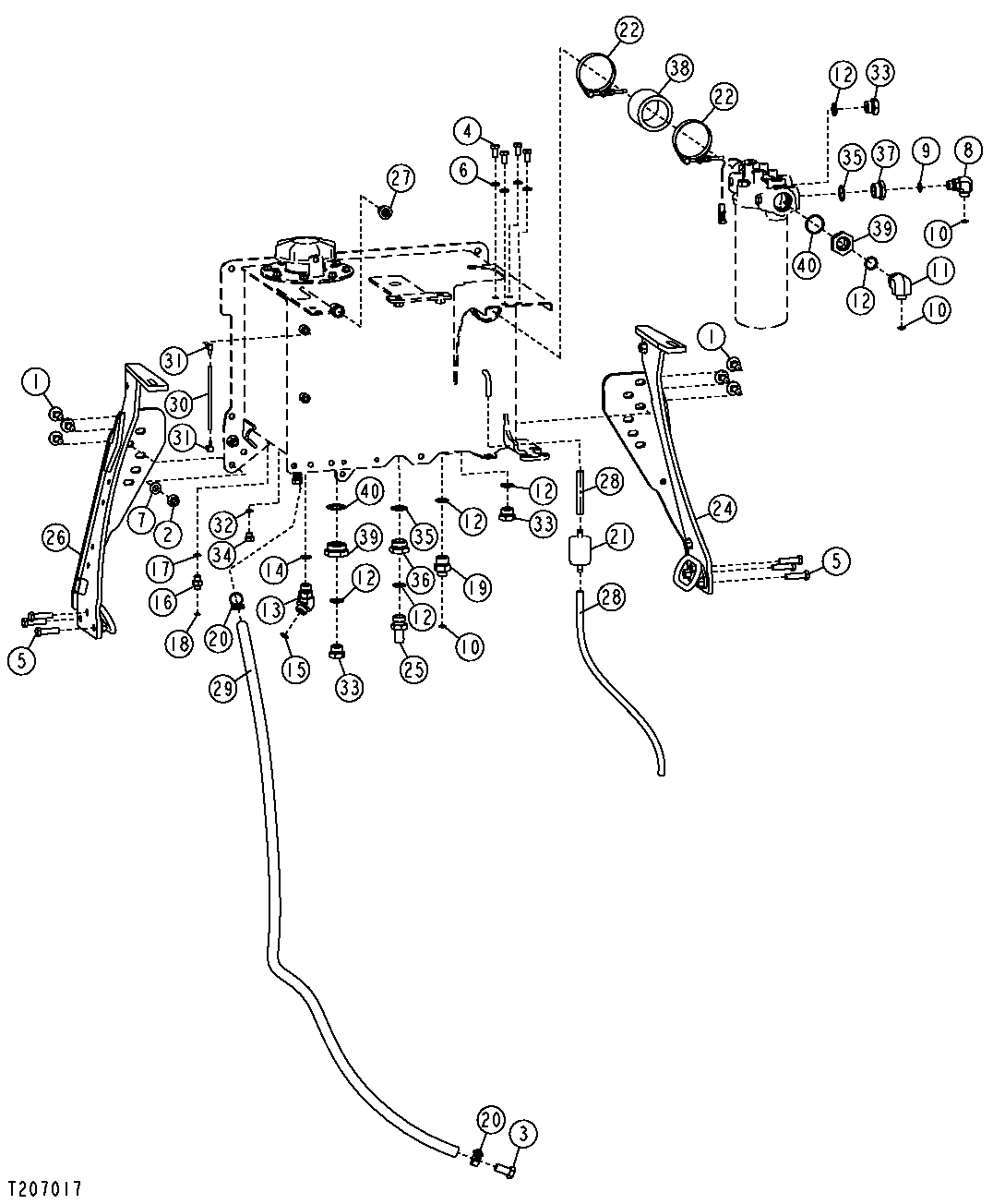

HYDRAULIC RESERVOIR ASSEMBLY (460DC) (SN 596700- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7083	6	Bolt	M12 X 35
2	14M7401	6	Lock Nut	M12
3	19H1833	1	Cap Screw	5/8" X 1-1/4"
4	19M7166	4	Cap Screw	M10 X 20
5	19M7496	6	Cap Screw	M12 X 45
6	24M7028	4	Washer	10.500 X 20 X 2 mm
7	24M7240	6	Washer	13 X 25 X 3 mm
8	38H1005	1	Elbow Fitting	-
9	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
10	T77857	3	O-Ring	-
11	38H1013	1	Elbow Fitting	-
12	U12547	6	O-Ring	-
13	38H1047	1	Elbow Fitting	(TORQUE CONVERTER)
13	38H1162	1	Adapter Fitting	(DIRECT DRIVE)
14	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
15	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	38H1168	1	Adapter Fitting	-
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
19	38H1175	1	Adapter Fitting	-
20	AR21837	2	Clamp	-
21	AT101565	1	Air Filter	-
22	AT175744	2	Hose Clamp	-
23	14M7443	10	Flange Nut	M12
24	AT193941	1	Support	-
25	AT195055	1	Check Valve	-
26	AT195225	1	Support	-
27	AT320518	1	Plug	-
28	M87571	1	Hose	(CUT TO LENGTH)
29	TY22328	1	Bulk Hose	(CUT TO LENGTH)
30	T107253	1	Level Gauge	-
31	N115724	2	Elbow Fitting	-
32	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
33	R27175	3	Drain Plug	-
34	R27218	1	Fitting Plug	-
35	R29936	2	O-Ring	-
36	R57381	1	Tee Fitting	-
37	T132838	1	Fitting Plug	-
38	T210031	1	Hydraulic Hose	-
39	T27517	2	Adapter Fitting	-
40	U13639	2	O-Ring	-

HYDRAULIC RESERVOIR ASSEMBLY (460DC) (SN 596700- )
