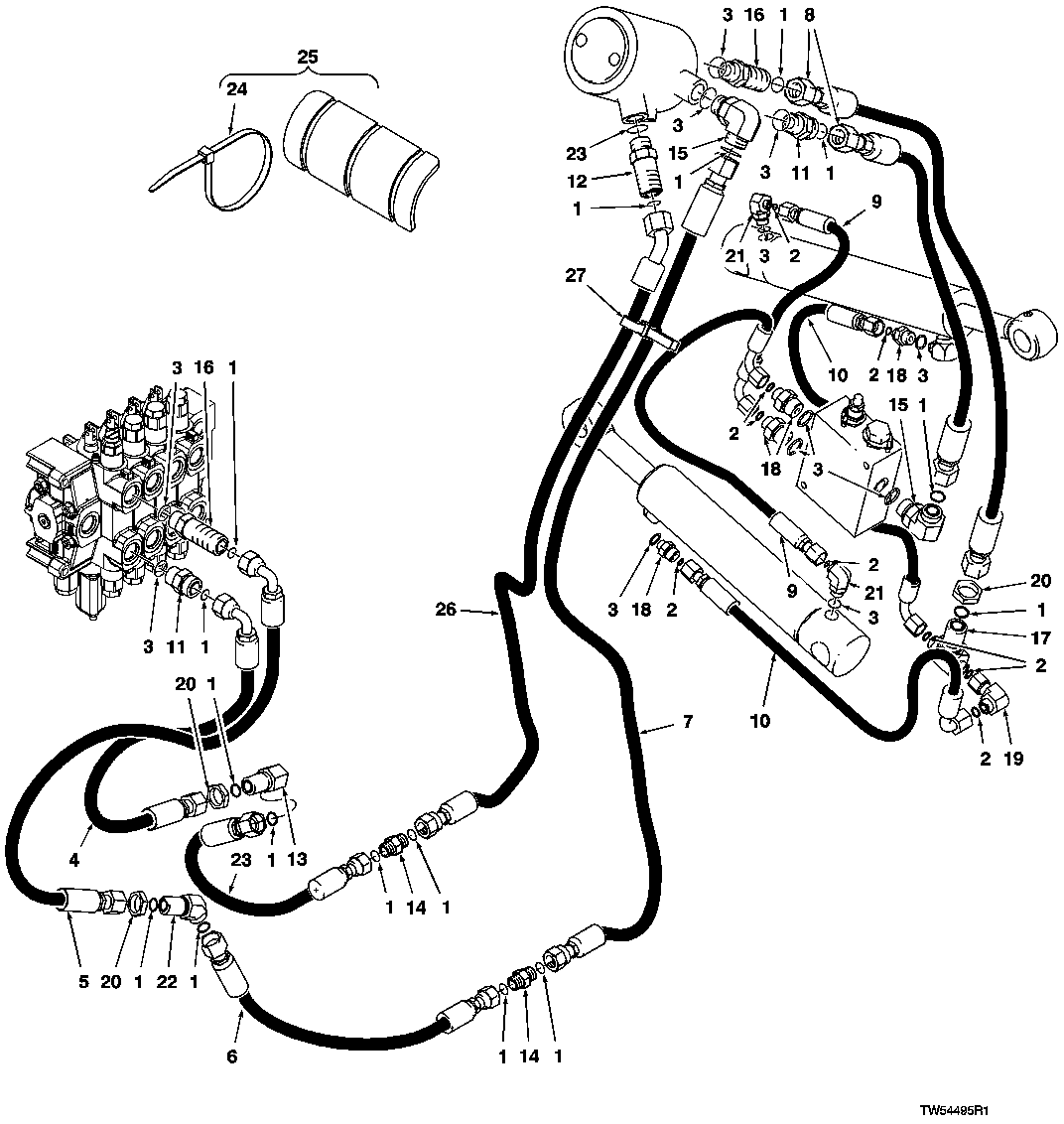

GRAPPLE CYLINDER LINES - SINGLE AND DUAL FUNCTION (SN 600035- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
2	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
3	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
4	AT199385	1	Hydraulic Hose	30.1752" X 1335 mm (52-1/2") X 30.1752", (SUB FOR AT190527)
5	AT199384	1	Hydraulic Hose	30.1752" X 1400 mm (55") X 30.1752", (SUB FOR AT190526)
6	AT199409	1	Hydraulic Hose	30.1752" X 1125 mm (44-1/4") X 30.1752", (SUB FOR AT210681, THIS APPLICATION)SINGLE FUNCTION
6	AT199383	1	Hydraulic Hose	30.1752" X 1375 mm (54-1/4") X 30.1752", (SUB FOR AT189618)DUAL FUNCTION
7	AT199405	1	Hydraulic Hose	30.1752" X 3098 mm (122") X 30.1752", SINGLE FUNCTION
7	AT326499	1	Hydraulic Hose	30.1752" X 4038 mm (159") X 30.1752", DUAL FUNCTION
8	AT313432	2	Hydraulic Hose	13/16" X 1079 mm (42-1/2") X 13/16"
9	AT199381	2	Hydraulic Hose	13/16" X 762 mm (30") X 13/16", (SUB FOR AT169466)
10	AT199379	2	Hydraulic Hose	13/16" X 965 mm (38") X 13/16"
11	38H1163	3	Adapter Fitting	-
12	-	1	Part 14	(ORDER AT359328 ) (SUB FOR T154939 ) (INCLUDES T77858 AND U12547)(45 DEGREE)
13	38H1324	1	Elbow Fitting	(90 DEGREE)
14	38H1272	2	Union Fitting	-
15	38H1007	2	Elbow Fitting	(90 DEGREE)
16	38H1215	2	Adapter Fitting	-
17	38H1543	1	Tee Fitting	-
18	38H1175	4	Adapter Fitting	-
19	38H1095	1	Elbow Fitting	(90 DEGREE)
20	T78707	3	Nut	30.175 mm (1-3/16")
21	38H1013	2	Elbow Fitting	USED WITH 10.4 FT (115") GRAPPLE
21	38H1005	2	Elbow Fitting	USED WITH 11.7 FT (123") GRAPPLE
22	38H1490	1	Elbow Fitting	(45 DEGREE BULKHEAD)
23	AT199407	1	Hydraulic Hose	(SUB FOR AT192254)SINGLE FUNCTION
23	AT199382	1	Hydraulic Hose	(SUB FOR AT189429)DUAL FUNCTION
24	R44302	3	Tie Band	-
25	AT313439	3	Hose Guard	-
26	AT326500	1	Hydraulic Hose	-
27	H77698	6	Tie Band	-

GRAPPLE CYLINDER LINES - SINGLE AND DUAL FUNCTION (SN 600035- )
