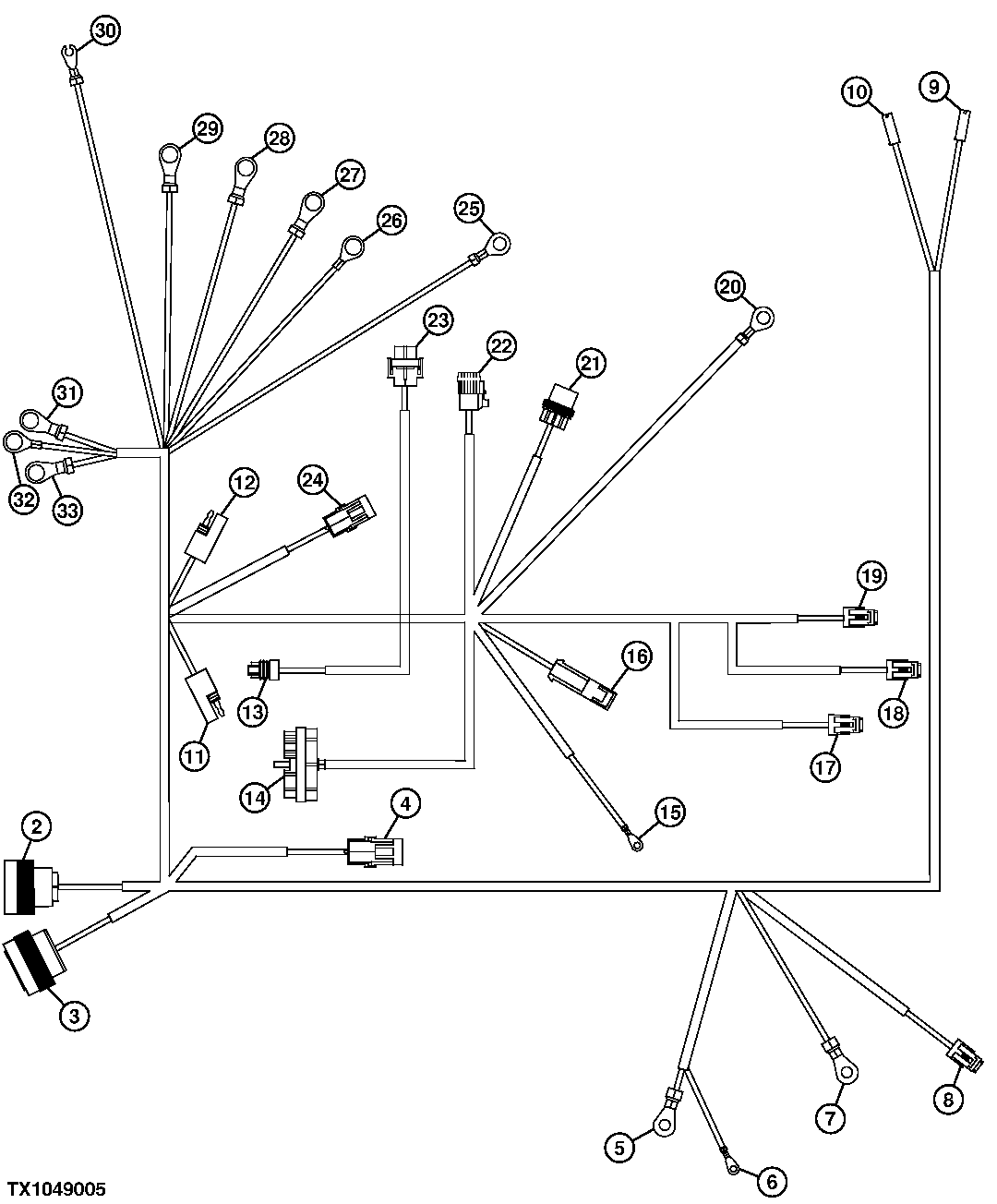

ENGINE WIRING HARNESS (TC) (SN 586337-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(AT197458 NLA) (ORDER AT302180)
2	57M8409	1	Elec. Connector Housing	(GROUND TO CAB)
2	57M7536	1	Elec. Connector Terminal	-
3	57M7747	1	Electrical Connector Assy	(TO LOAD CENTER HARNESS)
3	-	1	Part 5	-
3	R78067	15	Elec. Connector Terminal	-
3	R78069	4	Elec. Connector Cavity Plug	-
4	F120499	1	Electrical Connector Assy	(AIR FILTER RESTRICTION SWITCH)
5	-	1	Part 9	(ALTERNATOR B+)
5	T74405	1	BOOT	-
6	-	1	Part 11	(ALTERNATOR HARNESS)
7	-	1	Part 12	(ALTERNATOR GROUND)
8	57M7829	1	Elec. Connector Terminal	(AIR TEMP)
9	57M9452	1	Elec. Connector Housing	(HORN)
9	57M9454	1	Elec. Connector Terminal	-
10	57M9454	1	Elec. Connector Terminal	-
10	57M9452	1	Elec. Connector Housing	(HORN)
11	AR94101	1	Diode	(STARTER SOLENOID)
11	-	1	Part 19	-
11	-	1	Part 20	-
12	AR94101	1	Diode	(A/C COMPRESSOR DIODE)
12	-	1	Part 22	-
12	-	1	Part 23	-
13	57M7796	1	Elec. Connector Housing	(OIL PRESSURE)
13	R104701	3	Elec. Connector Terminal	-
14	57M7275	1	Elec. Connector Housing	(ECU)
14	R104701	14	Elec. Connector Terminal	-
15	-	1	Part 28	(A/C COMPRESSOR GROUND)
16	R78063	1	Elec. Connector Seal	-
16	57M7285	1	Elec. Connector Terminal	-
16	57M7293	1	Elec. Connector Housing	(A/C COMPRESSOR CLUTCH)
17	57M7850	1	Elec. Connector Housing	(CRANK SENSOR)
17	57M7829	2	Elec. Connector Terminal	-
18	57M7829	1	Elec. Connector Terminal	(FUEL TEMP)
18	-	2	Part 35	-
19	57M8601	1	Elec. Connector Housing	(COOLANT TEMP)
19	57M8602	2	Elec. Connector Terminal	-
19	57M8633	1	Elec. Connector Accessory	-
20	-	1	Part 39	(B+ BATTERY)
21	R104570	1	Electrical Connector Assy	(INLINE FUSE)
21	R104571	1	Elec. Connector Terminal	-
21	-	1	Part 42	-
22	57M8131	1	Electronic Terminator	(CAN TERMINATOR)
22	-	3	Part 44	-
23	57M7344	1	Elec. Connector Housing	(INJECTOR)
23	R78059	2	Elec. Connector Seal	-
23	57M8259	2	Elec. Connector Terminal	-
24	AT263424	1	Electrical Connector Assy	(DFR SPEED SENSOR)
24	57M7251	2	Elec. Connector Terminal	-
24	R78059	2	Elec. Connector Seal	-
25	-	1	Part 51	(GROUND TO BATTERY SWITCH DISCONNECT)
26	-	1	Part 52	(GROUND TO STARTER)
27	-	1	Part 53	(GROUND TO STARTER)
28	-	1	Part 54	(GROUND TO STARTER)
29	-	1	Part 55	(GROUND TO STARTER)
30	-	1	Part 56	(STARTER SOLENOID)
31	-	1	Part 57	(STARTER B+)
32	-	1	Part 58	(STARTER B+)
33	-	1	Part 59	(STARTER B+)

ENGINE WIRING HARNESS (TC) (SN 586337-)
