ENGINE WIRING HARNESS (DD) (SN 586337-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7536	2	Elec. Connector Terminal	-
1	57M8409	1	Elec. Connector Housing	(POWER AND GROUND TO CABLE)
2	-	14	Part 4	(ORDER 10-567310-016)
2	R78067	1	Elec. Connector Terminal	-
2	57M7747	1	Electrical Connector Assy	(TO LOAD CENTER HARNESS)
3	-	1	Part 6	(A/C COMPRESSOR GROUND) (M5 10 RING)
4	57M7293	1	Elec. Connector Housing	(A/C COMPRESSOR CLUTCH)
4	57M7285	1	Elec. Connector Terminal	-
4	R78063	1	Elec. Connector Seal	-
5	-	1	Part 10	(ORDER <service-part qty="1">MWC1000010</service-part>)(STARTER SOLENOID DIODE)
5	-	1	Part 11	(ORDER 541617A19)
5	-	1	Part 12	(ORDER 521618BB02)
6	-	1	Part 13	(ORDER <service-part qty="1">MWC1000010</service-part>)(A/C COMPRESSOR DIODE)
6	-	1	Part 14	(ORDER 541617A19)
6	-	1	Part 15	(ORDER 521618BB02)
7	R104701	2	Elec. Connector Terminal	-
7	57M7796	1	Elec. Connector Housing	(OIL PRESSURE)
8	57M8131	1	Electronic Terminator	(CAN TERMINATOR)
8	-	3	Part 19	(ORDER 10-56731-016)
8	-	1	Part 20	(ORDER 110151)
9	57M7344	1	Elec. Connector Housing	(INJECTOR)
9	57M8259	2	Elec. Connector Terminal	-
9	R78059	2	Elec. Connector Seal	-
10	57M7275	1	Elec. Connector Housing	(ECU)
10	R104701	11	Elec. Connector Terminal	-
11	AT256732	1	Connector	(CRANK SENSOR)
11	57M7829	2	Elec. Connector Terminal	-
12	AT256732	1	Connector	(COOLANT TEMP)
12	57M7829	2	Elec. Connector Terminal	-
13	AT256732	1	Connector	(FUEL TEMP)
13	57M7829	2	Elec. Connector Terminal	-
14	-	1	Part 32	(STARTER SOLENOID) (10 SPLIT RING)
15	-	1	Part 33	(STARTER B+) (1/2" RING)
16	-	1	Part 34	(STARTER B+) (1/2" RING)
17	-	1	Part 35	(STARTER B+) (1/2" RING)
18	-	1	Part 36	(GROUND TO STARTER) (1/2" RING)
19	-	1	Part 37	(GROUND TO STARTER) (1/2" RING)
20	-	1	Part 38	(GROUND TO STARTER) (1/2" RING)
21	-	1	Part 39	(GROUND TO STARTER) (1/2" RING)
22	-	1	Part 40	(ALTERNATOR B+ TERMINAL) (7/16" RING)
22	T74405	1	BOOT	-
23	-	1	Part 42	(TO ALTERNATOR HARNESS) (M5 10 RING)
24	-	1	Part 43	(ALTERNATOR GROUND TERMINAL) (M8 5/16" RING)
25	57M9454	1	Elec. Connector Terminal	-
25	57M9452	1	Elec. Connector Housing	(HORN)
26	57M9452	1	Elec. Connector Housing	(HORN)
26	57M9454	1	Elec. Connector Terminal	-
27	-	1	Part 48	(GROUND TO BATTERY SWITCH DISCONNECT) (3/8" RING)
28	-	1	Part 49	(B+ BATTERY) (3/8" RING)
29	R104570	1	Electrical Connector Assy	(INLINE FUSE)
29	R104571	1	Elec. Connector Terminal	-
29	R104933	1	Elec. Connector Terminal	-
30	AT256732	1	Connector	(M.A.T.)
30	57M7829	2	Elec. Connector Terminal	-
31	AT263424	1	Electrical Connector Assy	(AIR FILTER RESTRICTION SWITCH)
31	F431953	2	Elec. Connector Terminal	-
31	R78063	2	Elec. Connector Seal	-
35	AT197466	1	Wiring Harness	NLA; ORDER AT302181

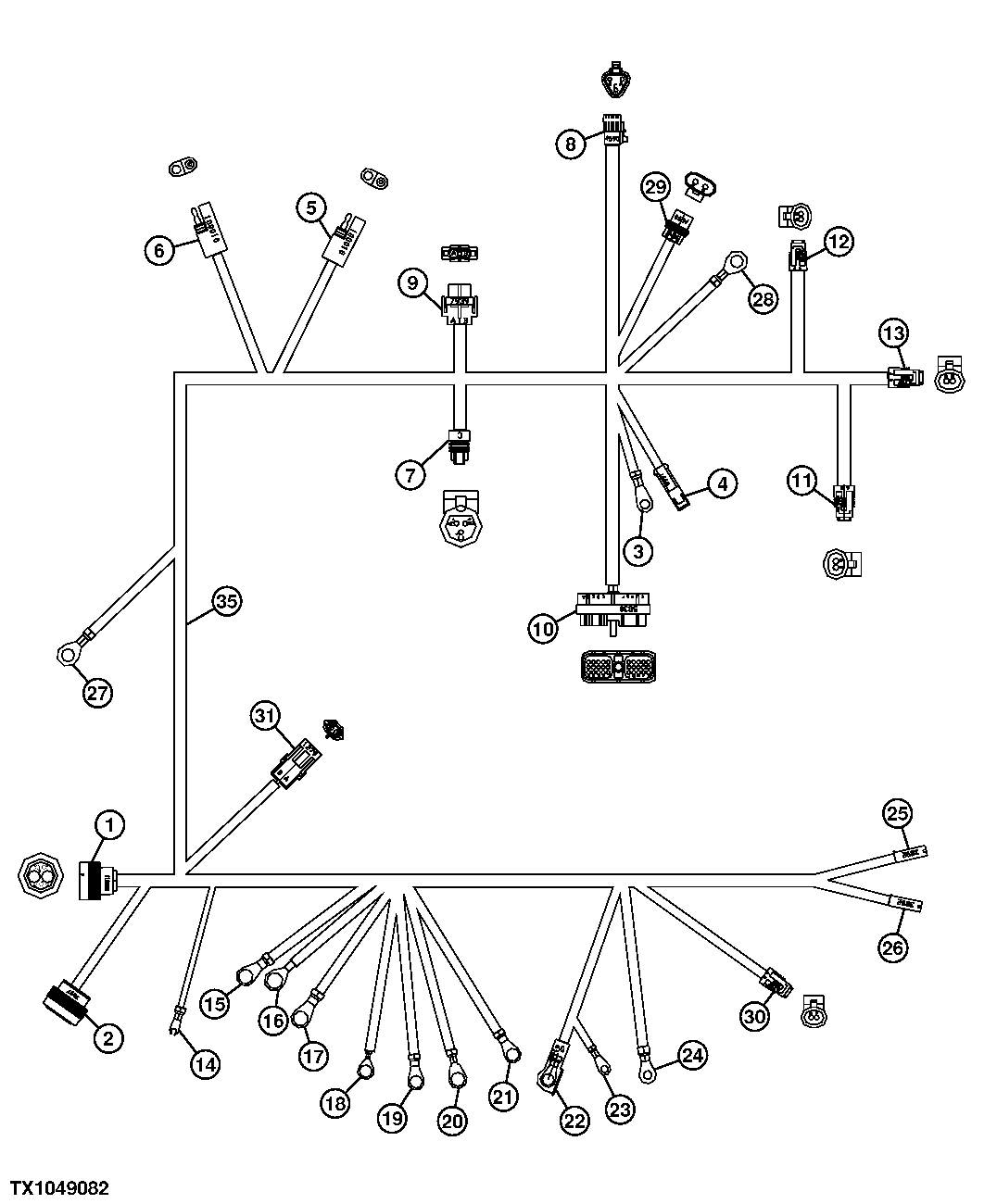

ENGINE WIRING HARNESS (DD) (SN 586337-)
