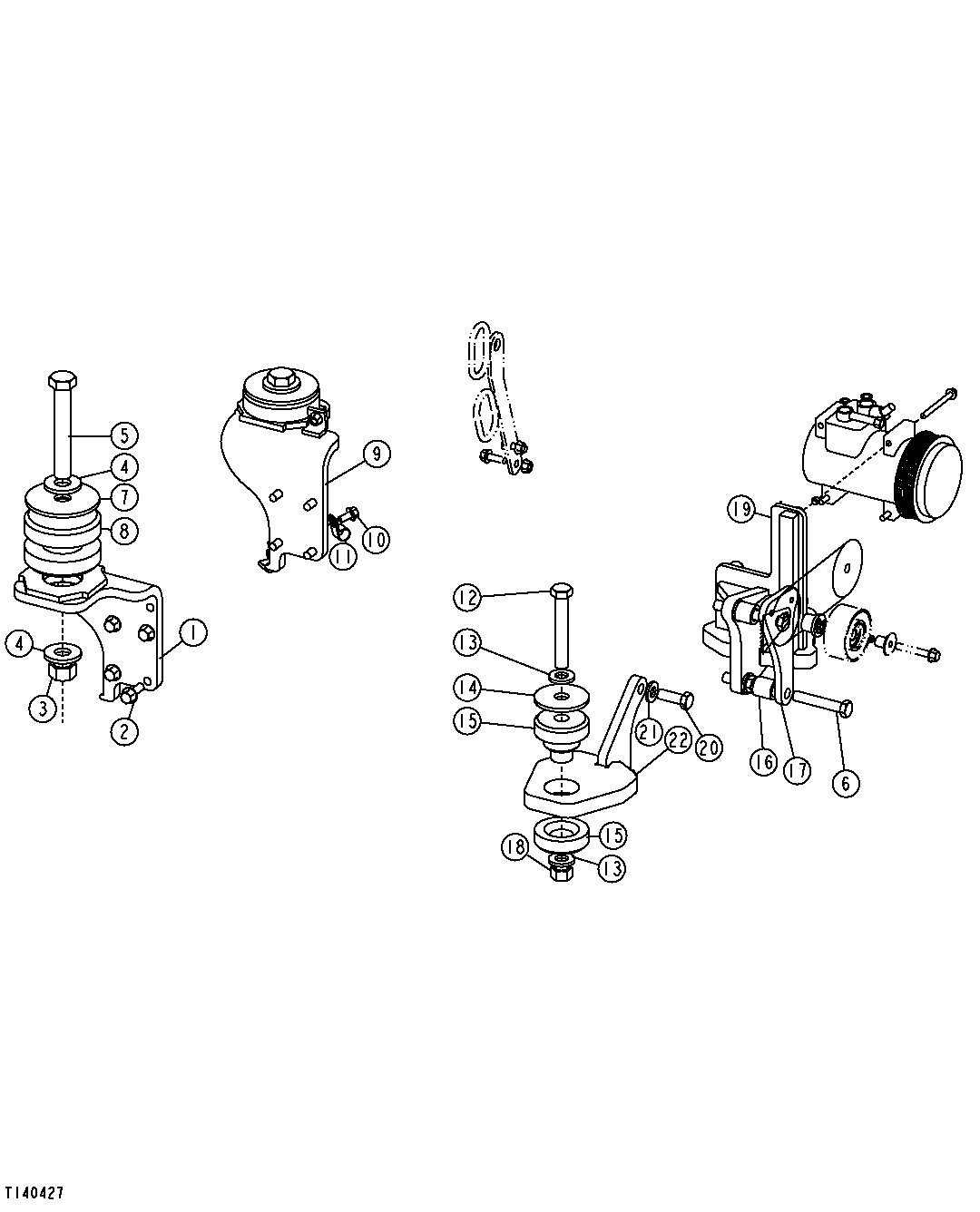

ENGINE MOUNTS (WITH A/C)(TC)(SN 580171- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT223944	1	Bracket	(RIGHT REAR)
2	19M7790	8	Screw	M12 X 35
3	14H1048	2	Nut	1"
4	T47806	4	Washer	-
5	08H4840	2	Bolt	1" X 6-1/4", (SUB FOR 08H4722, THIS APPLICATION)
6	19M8485	2	Cap Screw	M16 X 90
7	T186856	2	Washer	-
8	AT193571	2	Isolator	-
9	AT223943	1	Bracket	(LEFT REAR)
10	19M7784	1	Screw	M10 X 20
11	T74416	1	Clamp	-
12	19M7968	2	Cap Screw	M20 X 130
13	24M7242	4	Washer	21.400 X 42 X 5 mm
14	T42977	2	Washer	-
15	AT169022	2	Isolator	-
16	T187943	2	Bushing	-
17	T187350	1	Plate	-
18	14M7277	2	Nut	M20
19	-	1	Part 19	(LEFT FRONT OF ENGINE) (FOR USE WITH A/C), ( AT194828 NO LONGER AVAILABLE), (SUB AT196767 ) (ALSO ORDER 19M7790, 19M7913, (2) T187943)
19	AT196767	1	Support	(LEFT FRONT), (SUB FOR AT194828)
20	19M7489	4	Cap Screw	M16 X 45
21	24M7241	4	Washer	17 X 34 X 4 mm
22	AT179817	1	Support	RIGHT FRONT (WITHOUT SECONDARY STEERING)
22	AT182260	1	Support	RIGHT FRONT (WITH SECONDARY STEERING)
22	AT182260	1	Support	RIGHT FRONT

ENGINE MOUNTS (WITH A/C)(TC)(SN 580171- )
