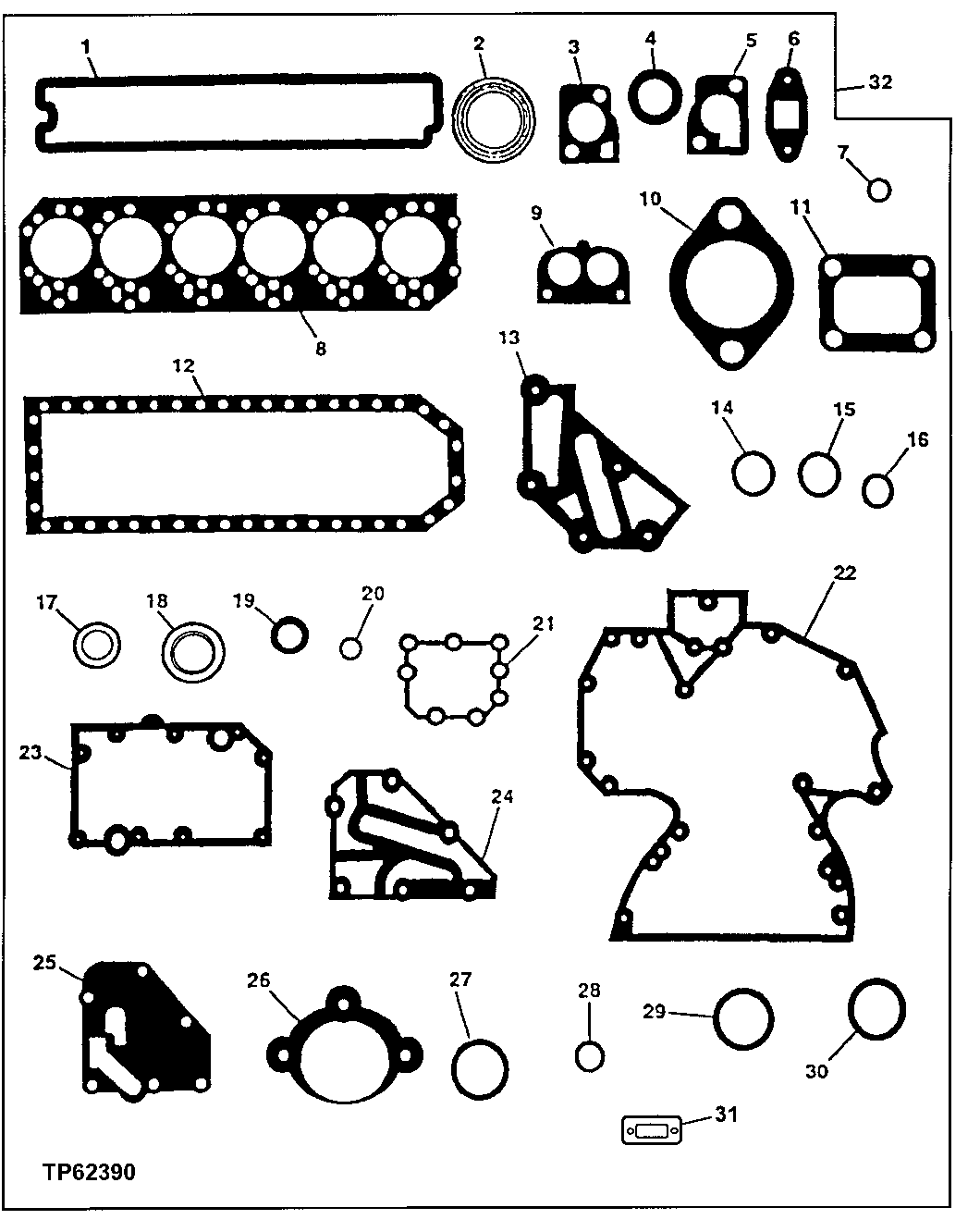

Engine Major Overhaul Gasket Set and Engine Overhaul Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE520540	1	Gasket Kit	(HIGH TEMPERATURE)
1	R123543	1	Gasket	ROCKER ARM COVER
2	R521439	6	Gasket	(SUB FOR R90658)EXHAUST MANIFOLD
3	R502814	1	Gasket	(SUB FOR R135896)THERMOSTAT COVER
4	R123226	2	Seal	WATER BY-PASS TUBE
5	R123345	1	Gasket	THERMOSTAT HOUSING
6	R123570	1	Gasket	TURBOCHARGER OIL OUTLET TUBE
7	R123575	6	O-Ring	ROCKER ARM COVER HOLD DOWN STUD
8	R116516	1	Engine Cylinder Head Gasket	CYLINDER HEAD
9	R501373	1	Gasket	THERMOSTAT COVER
10	R81275	1	Gasket	AIR INLET
11	R123572	1	Gasket	TURBOCHARGER TO EXHAUST MANIFOLD
12	R123354	1	Gasket	ENGINE OIL PAN
13	R501428	1	Gasket	COOLANT PASSAGE ADAPTER
14	R75892	1	O-Ring	OIL PUMP TUBE CONNECTOR
15	R97185	1	O-Ring	OIL PUMP OUTLET TUBE TO COVER
16	R61871	1	O-Ring	OIL PUMP INTAKE TUBE
17	A4827R	1	Washer	OIL PRESSURE REGULATOR PLUG
18	RE44574	1	Seal	REAR OIL SEAL
19	RE505515	1	Seal	FRONT OIL SEAL, (SUB FOR RE59810 AND RE516340)
20	R123273	1	O-Ring	FUEL TRANSFER PUMP
21	R123417	1	Gasket	WATER PUMP
22	R136516	1	Gasket	TIMING GEAR COVER
23	R123501	1	Gasket	OIL COOLER HOUSING
24	R502864	1	Gasket	REMOTE OIL FILTER ADAPTER
25	R500374	1	Gasket	OIL FILTER HEADER
26	R53108	1	Gasket	STARTING MOTOR
27	R72328	4	O-Ring	REMOTE OIL FILTER TUBES
28	R89944	1	O-Ring	WATER PUMP INLET
29	R61105	2	O-Ring	CONNECTOR TUBE TO TIMING GEAR COVER
30	T122075	2	O-Ring	OIL COOLER TO HOUSING
31	R136495	2	Gasket	OIL FILL COVER
32	RE526965	1	Gasket Kit	(SUB FOR RE501456)ENGINE MAJOR OVERHAUL
32	RE526966	1	Engine Overhaul Kit	(SUB FOR RE66097 AND RE515749)(INCLUDES MAJOR OVERHAUL GASKET KIT, CONNECTING ROD BEARINGS, MAIN BEARINGS, AND PISTON/LINER KITS)

Engine Major Overhaul Gasket Set and Engine Overhaul Kit

Нет текстового описания
