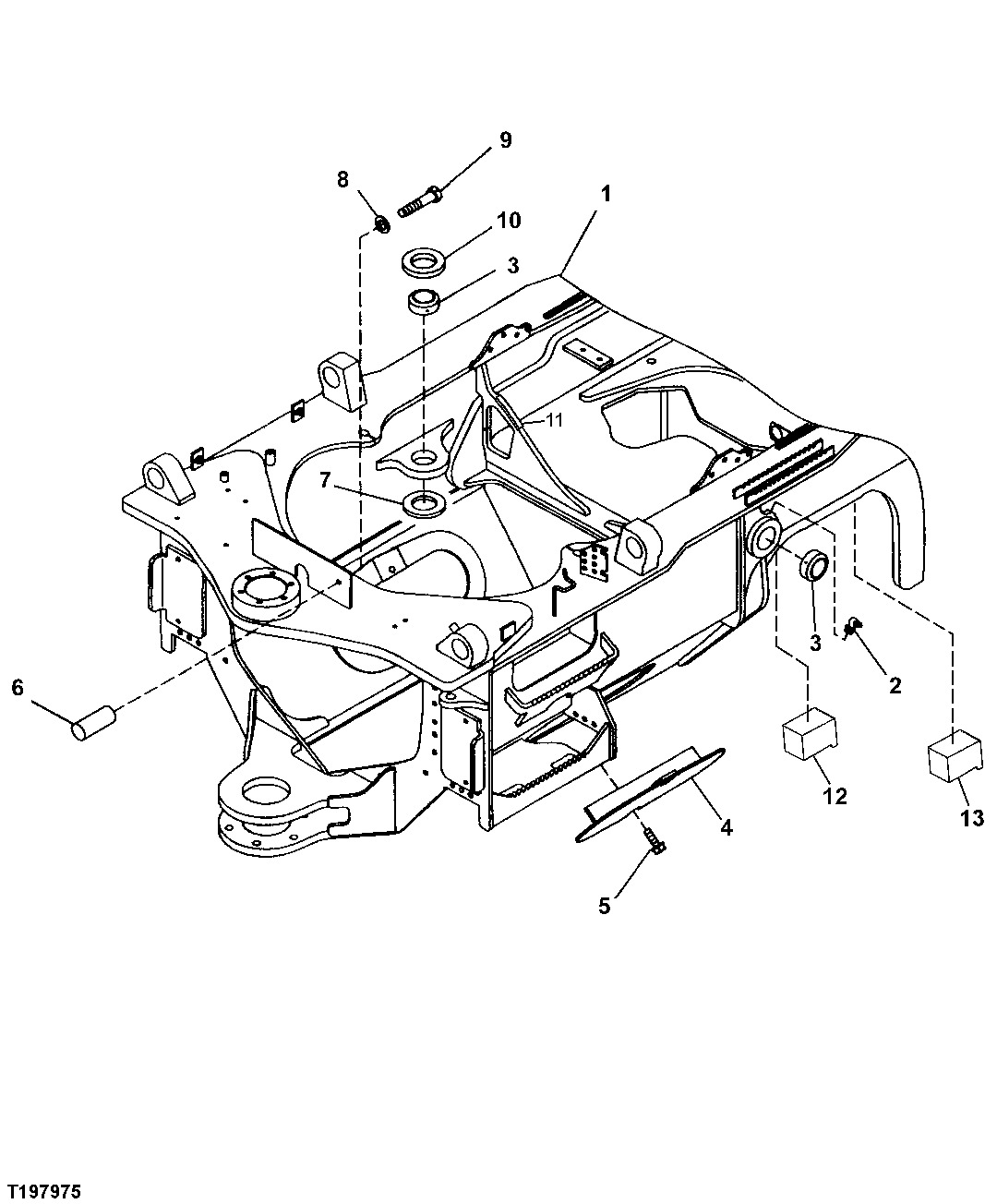

ENGINE FRAME (SN -580170)

ENGINE FRAME (SN -580170)

ENGINE FRAME (SN -580170)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

ENGINE FRAME (SN -580170)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(1400 EXTREME FRONT AND REAR) (CONVENIENCE ASSEMBLY) (TC) ( AT190694 NO LONGER AVAILABLE) (SUB AT193962)
1	AT198716	1	Frame	(1400 FRONT AND REAR) (CONVENIENCE ASSEMBLY) (DD), NLA
1	-	1	Part 1	(1200 NARROW FRONT AND 1200 OR 1400 REAR) (CONVENIENCE ASSEMBLY) (TC) ( AT190690 NO LONGER AVAILABLE) (SUB AT193963)
2	JD7799	1	Lubrication Fitting	-
3	AT133366	4	Self-Aligning Bushing	-
4	AT140352	2	Door	-
5	19M7790	4	Screw	M12 X 35, .020" (0, 51 MM)
6	T163292	1	Pin	.010" (0, 25 MM)
7	T163899	2	Spacer	.005" (0, 13 MM)
8	24M7047	1	Washer	13 X 24 X 2.500 mm
9	19M8011	1	Cap Screw	M12 X 30
10	T163898	2	Spacer	1200 NARROW FRONT AND 1200 OR 1400 REAR (CONVENIENCE ASSEMBLY)
11	-	1	Part 13	(MAKE FROM T164263 BULK MATERIAL, CUT TO LENGTH, APPROX. 8.40 INCHES)
12	-	1	Part 14	(BLOCK, AXLE MOUNT) (RIGHT HAND REAR) (FOR FIELD REPAIR) (REQUIRES WELDING), (ALSO ORDER (6) 19M7892, (6) 24M7242, (4) 30251 (USE HARDWARE FOR ATTACHING OSCILLATION BLOCK TO WELD BLOCK))
12	-	1	Part 15	(BLOCK, AXLE MOUNT) (RIGHT HAND FRONT) (FOR FIELD REPAIR) (REQUIRES WELDING), (ALSO ORDER (6) 19M7892, (6) 24M7242, (4) 30251 (USE HARDWARE FOR ATTACHING OSCILLATION BLOCK TO WELD BLOCK))
13	-	1	Part 16	(BLOCK, AXLE MOUNT) (LEFT HAND REAR) (FOR FIELD REPAIR) (REQUIRES WELDING), (ALSO ORDER (6) 19M7892, (6) 24M7242, (4) 30251 (USE HARDWARE FOR ATTACHING OSCILLATION BLOCK TO WELD BLOCK))
13	-	1	Part 17	(BLOCK, AXLE MOUNT) (LEFT HAND FRONT) (FOR FIELD REPAIR) REQUIRES WELDING), (ALSO ORDER (6) 19M7892, (6) 24M7242, (4) 30251 (USE HARDWARE FOR ATTACHING OSCILLATION BLOCK TO WELD BLOCK))
