ENGINE AND TRANSMISSION COOLING SYSTEM (DD) (SN 586337-596699)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH83985	1	Clamp	-
2	AT306666	1	Oil Cooler	(HYDRAULIC OIL COOLER), (460DC SN 586337-588217, ALSO ORDER 2 U12547 1 R70921 1 R26375 1 38H1213 2 T77857 1 38H1013 1 AT306667)
3	AT306667	1	Oil Cooler	(TRANSMISSION OIL COOLER), (460DC SN 586337-588217, ALSO ORDER 2 U12547 1 R70921 1 R26375 1 38H1213 2 T77857 1 38H1013 1 AT306666)
4	AR40418	2	Hose Clamp	-
5	TY22462	1	Clamp	(SUB FOR AR48236)
6	AT13740	1	Drain Valve	-
7	AT139776	3	Isolator	-
8	AT166459	1	Tank	-
9	AT106413	1	Cap	-
10	-	1	Part 10	(SUB AT166459)
11	AT173610	1	Filler Cap	(RADIATOR CAP)
12	AT197169	1	Aftercooler	(CAC - CHARGE AIR COOLER), NLA
14	AT197172	1	Radiator	-
17	-	2	Part 15	(NOT ILLUSTRATED) (MOUNTED TO INNER SIDE OF HEAT EXCHANGER FLANGE) ( AT197216 NO LONGER AVAILABLE)
17	AT197217	1	Plate	-
18	AT197888	1	Deflector	-
19	AT56660	4	Rivet	-
20	-	1	Part 18	(MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH) (OVERFLOW TANK TO RADIATOR FILLER NECK)
21	-	1	Part 19	(MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH) (OVERFLOW TUBE, ROUTED DOWN)
22	RE52702	4	Clamp	-
23	RE67208	4	Clamp	-
24	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
25	R90974	3	Isolator	-
26	T103040	1	Plate	-
27	T13254	3	Clamp	-
28	T140240	3	Stud	-
29	T162877	1	Hose	-
30	T201453	2	Hose	-

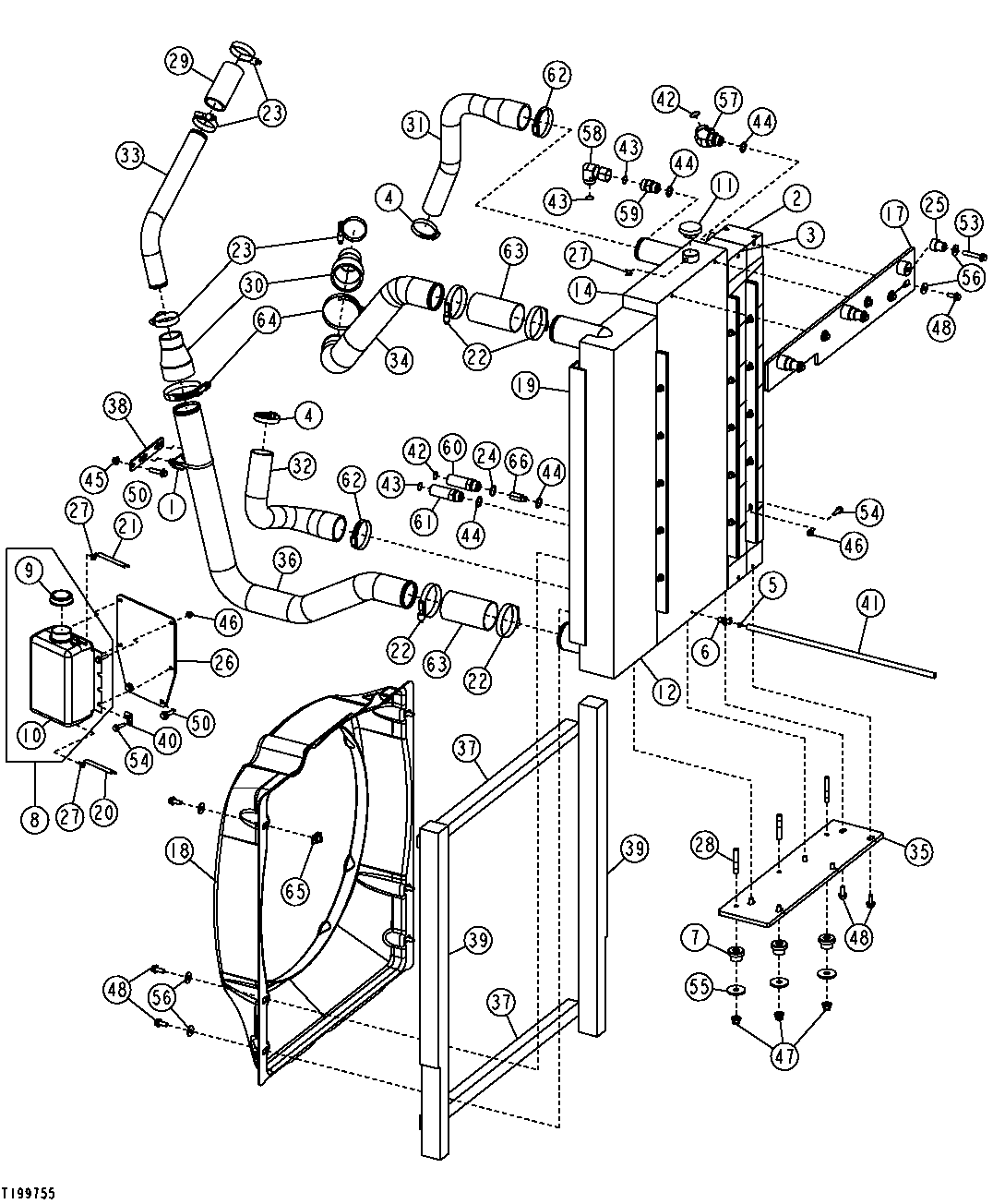

ENGINE AND TRANSMISSION COOLING SYSTEM (DD) (SN 586337-596699)
