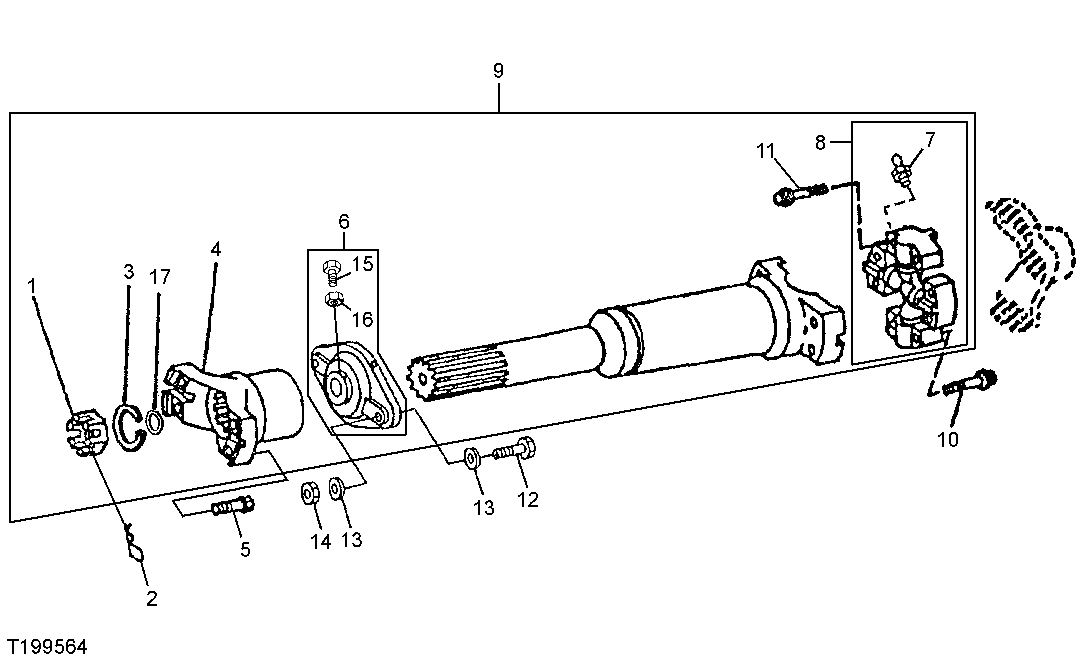

COUPLING SHAFT (DANA) (SERIAL NO. 586629- )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T191033	1	Lock Nut	(USE WITH AT199106)
2	11M7083	1	Cotter Pin	3.200 X 50 mm
3	T137960	1	Snap Ring	-
4	T191294	1	Universal Joint Yoke	(SUB FOR T132318)38 SPLINES
5	19H3752	4	Cap Screw	1/2" X 2-1/8"
6	AT199694	1	Bearing With Housing	(2.471 TK) (USE WITH AT199106); NLA; ORDER AT496433
6	AT496433	1	Bearing With Housing	-
7	AT280339	1	Lubrication Fitting	(USE WITH AT199106)
8	AT115918	1	Cross And Bearing Assembly	-
8	AT199701	1	Cross And Bearing Assembly	(USE WITH SINGLE FUNCTION GRAPPLE)
8	AT199702	1	Cross And Bearing Assembly	-
9	AT199106	1	Universal Joint With Shaft	(USE WITH DUAL FUNCTION GRAPPLE) (DANA), NLA; ORDER AT498210
9	AT498210	1	Universal Joint With Shaft	-
9	AT498213	1	Universal Joint With Shaft	-
9	AT498211	1	Universal Joint With Shaft	-
9	AT199100	1	Universal Driveshaft	(DANA), NLA; ORDER AT498211
9	AT199086	1	Universal Joint With Shaft	(USE WITH SINGLE FUNCTION GRAPPLE) (USE WITH 1400 SERIES REAR AXLE OPTION) (DANA), NLA; ORDER AT498213
10	19H2960	4	Cap Screw	3/8" X 1-3/4"
10	19H3752	4	Cap Screw	1/2" X 2-1/8", (USE WITH SINGLE FUNCTION GRAPPLE)
10	19H3183	4	CAP SCREW	1/2" X 2-1/8", (USE WITH DUAL FUNCTION GRAPPLE)
11	19H2960	4	Cap Screw	3/8" X 1-3/4"
11	19H3752	4	Cap Screw	1/2" X 2-1/8"
12	19M8295	2	Cap Screw	M16 X 55
12	03M7389	2	Bolt	M16 X 60
13	24M7241	4	Washer	17 X 34 X 4 mm
13	24M7241	2	Washer	17 X 34 X 4 mm
14	14M7276	1	Nut	M16
15	T137959	1	Set Screw	9.525 X 19.050 mm (3/8" X 3/4")
16	14H774	1	Nut	3/8"
17	T191034	1	Washer	34 X 60 X 5 mm (1.339" X 2.362" X 0.197"), (USE WITH AT199086, AT199106)
17	T191032	1	Washer	28 X 50 X 5 mm (1.102" X 1-31/32" X 0.197"), (USE WITH AT199100)

COUPLING SHAFT (DANA) (SERIAL NO. 586629- )
