Arch Cylinder (Dual Function 581887-592998) (Single Function 581887-595081) (90 X 45)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3632	1	Cap Screw	1" X 3"
2	-	1	Part 2	-
3	-	1	Part 3	-
4	AH136453	1	Piston	-
5	-	1	Part 5	-
6	-	1	Part 6	-
7	H157642	1	Hydr. Cylinder Rod Guide	-
8	-	1	Part 8	-
9	-	1	Part 9	-
10	R81788	1	Ring	-
11	-	1	Part 11	-
13	-	1	Part 12	-
14	R81794	1	Nut	-
17	AH150241	1	Hydraulic Cylinder Rod	-
18	AH148307	1	Hydraulic Cylinder Barrel	(LEFT)
18	AH148308	1	Hydraulic Cylinder Barrel	(RIGHT)
19	H145176	1	Washer	-
20	AH170270	1	Hydraulic Cylinder	(LEFT ARCH), (SINGLE FUNCTION) (NLA; ORDER AHC12208)
20	AHC12208	1	Hydraulic Cylinder	(LEFT ARCH), (SINGLE FUNCTION)
20	AH170270	1	Hydraulic Cylinder	(LEFT ARCH), (DUAL FUNCTION) (90 X 45) (NLA; ORDER AHC12208)
20	AHC12208	1	Hydraulic Cylinder	(LEFT ARCH), (DUAL FUNCTION) (90 X 45)
20	AH170271	1	Hydraulic Cylinder	(RIGHT ARCH), (SUB FOR AH176100 (SINGLE FUNCTION))
20	AH170271	1	Hydraulic Cylinder	(RIGHT ARCH), (SUB FOR AH176100 (DUAL FUNCTION) (90 X 45))
21	AH149813	1	Hydraulic Cylinder Kit	ROD REPAIR KIT
22	AH212097	1	Hydraulic Cylinder Kit	(SUB FOR AH202290)BORE REPAIR KIT

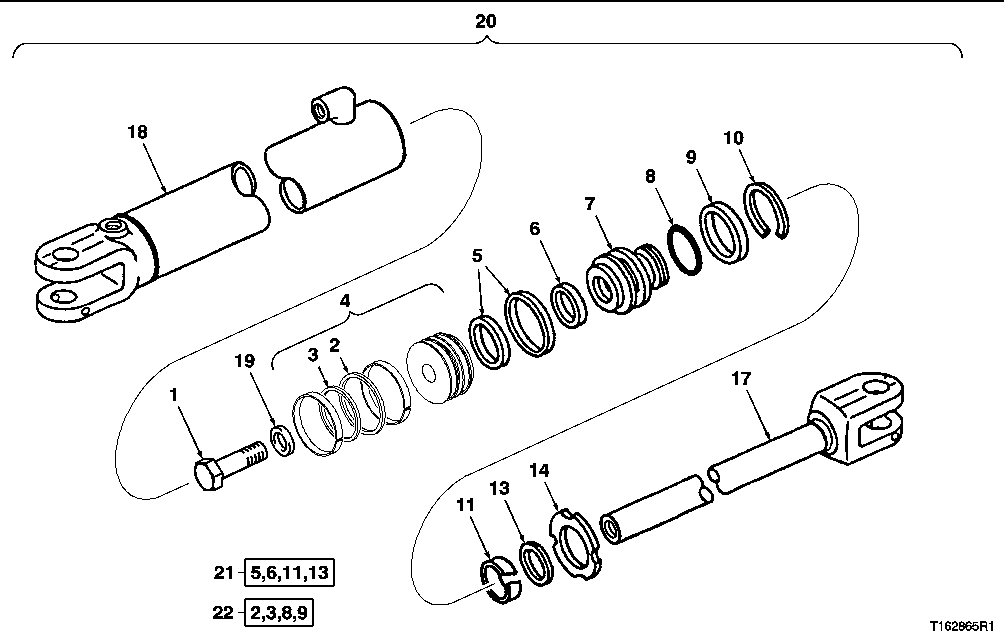

Arch Cylinder (Dual Function 581887-592998) (Single Function 581887-595081) (90 X 45)
