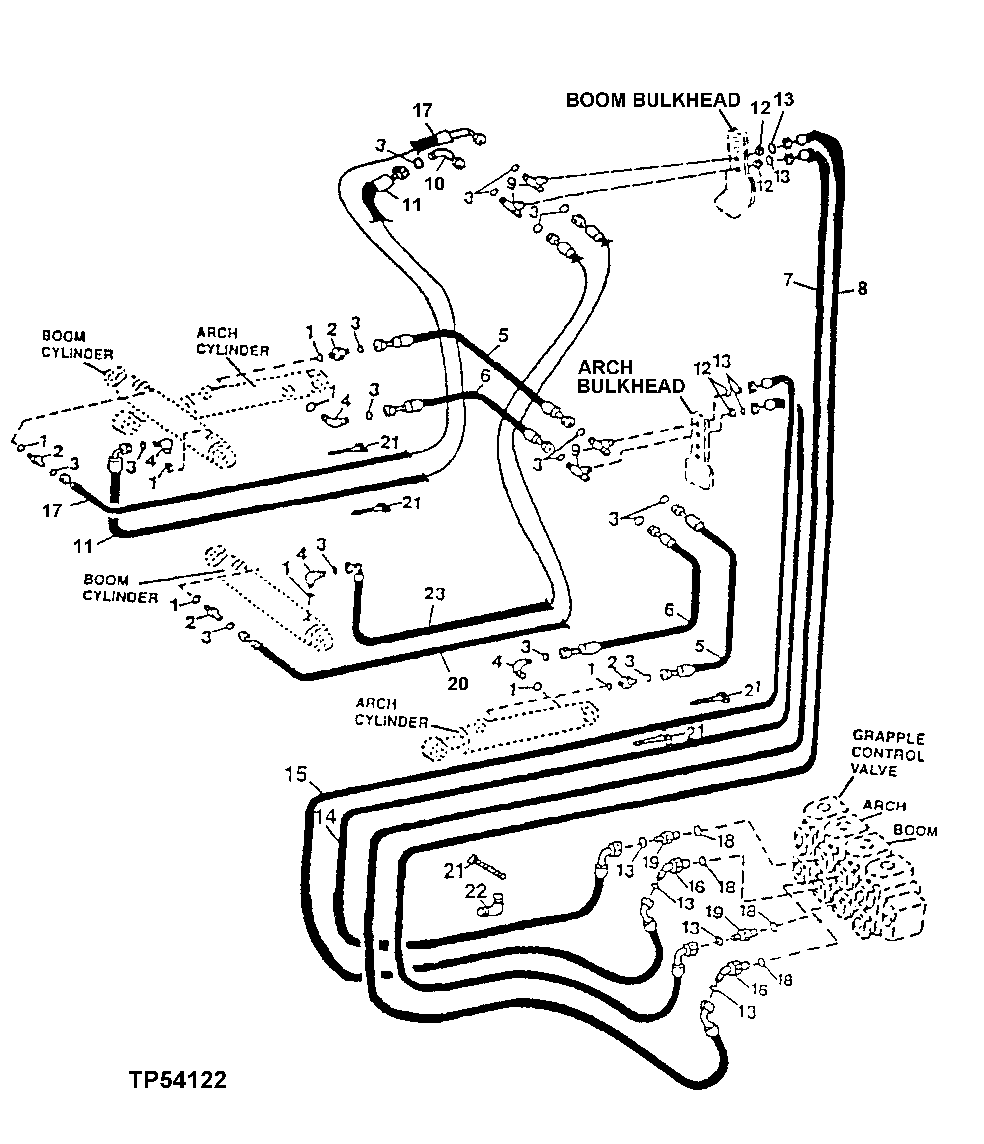

ARCH AND BOOM VALVE HYDRAULICS (DUAL FUNCTION)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	8	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
2	38H1175	4	Adapter Fitting	-
3	T77857	17	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
4	38H1013	4	Elbow Fitting	-
5	AT199393	1	Hydraulic Hose	13/16" X 1857 mm (73-1/4") X 13/16", (RIGHT SIDE), Fabricate, (SUB FOR AT189319)
5	AT199394	1	Hydraulic Hose	13/16" X 1647 mm (64-3/4") X 13/16", (LEFT SIDE), Fabricate, (SUB FOR AT189320)
6	AT199391	1	Hydraulic Hose	13/16" X 1019 mm (40-1/4") X 13/16", (RIGHT SIDE), Fabricate, (SUB FOR AT189317)
6	AT199392	1	Hydraulic Hose	13/16" X 809 mm (31-3/4") X 13/16", (LEFT SIDE), Fabricate, (SUB FOR AT189318)
7	AT199398	1	Hydraulic Hose	(SUB FOR AT191291)
8	AT199397	1	Hydraulic Hose	(SUB FOR AT191290)
9	38H1543	4	Tee Fitting	-
10	38H1095	1	Elbow Fitting	-
11	AT169008	1	Hydraulic Hose	13/16" X 1780 mm (70") X 13/16", (SUB AT199390)
11	AT199390	1	Hydraulic Hose	-
12	T78707	4	Nut	30.175 mm (1-3/16")
13	T77858	8	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
14	AT199396	1	Hydraulic Hose	(SUB FOR AT191282)
15	AT199395	1	Hydraulic Hose	(SUB FOR AT190568)
16	38H1163	2	Adapter Fitting	-
17	AT169007	1	Hydraulic Hose	13/16" X 2439 mm (96") X 13/16"
17	AT199389	1	Hydraulic Hose	13/16" X 2440 mm (96") X 13/16"
18	U12547	4	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
19	-	1	Part 23	(UPPER ARCH VALVE PORT), (ORDER AT359328 ) (SUB FOR T154939 ) (INCLUDES T77858 AND U12547)
19	38H1163	1	Adapter Fitting	(LOWER BOOM VALVE PORT)
20	AT169002	1	Hydraulic Hose	13/16" X 2899 mm (114-1/4") X 13/16"
20	AT199386	1	Hydraulic Hose	13/16" X 2900 mm (114-1/4") X 13/16"
21	R44302	1	Tie Band	NOT USED, THIS APPLICATION
22	T134295	1	Sleeve	NOT USED, THIS APPLICATION
23	AT169003	1	Hydraulic Hose	13/16" X 2264 mm (89-1/4") X 13/16", (SUB AT199387)
23	AT199387	1	Hydraulic Hose	-

ARCH AND BOOM VALVE HYDRAULICS (DUAL FUNCTION)
