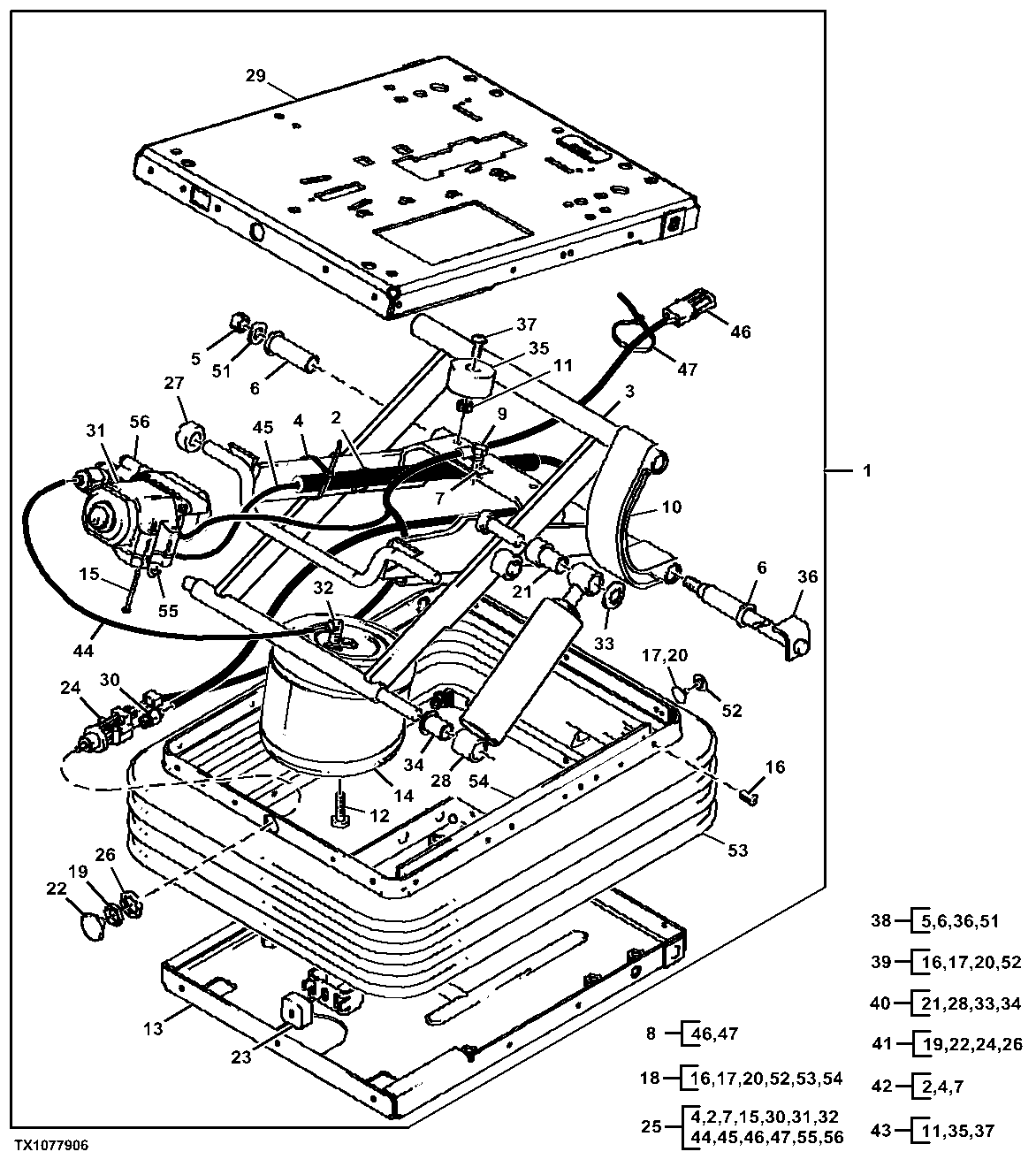

Air Suspension Seat Base ( - 646523)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT366812	1	Seat Suspension	INCLUDES AT208491, SUB AT406864
2	-	1	Part 2	CTL 0.875 m
3	AT376001	1	Seat Suspension	-
4	-	1	Part 4	-
5	-	2	Part 5	-
6	-	4	Part 6	-
7	-	1	Part 7	-
8	AT208488	1	Wiring Harness	INCLUDES 46 AND 47
9	-	1	Part 9	-
10	AT173315	1	Belt Kit	-
11	-	1	Part 11	-
12	-	1	Part 12	-
13	AT208483	1	Housing	-
14	AT208486	1	Absorber	-
15	-	2	Part 15	-
16	-	23	Part 16	-
17	-	3	Part 17	-
18	AT208491	1	Boot Kit	INCLUDES 16, 17, 20, 52, 53 AND 54
19	-	1	Part 19	-
20	-	3	Part 20	-
21	-	1	Part 21	-
22	-	1	Part 22	-
23	T55224	1	Bumper	-
24	-	1	Part 24	-
25	-	1	Part 25	-
26	-	1	Part 26	-
27	AT321131	1	Seat Bearing Roller Kit	-
28	-	1	Part 28	-
29	F434586	1	Housing	-
30	-	2	Part 30	-
31	-	1	Part 31	-
32	-	1	Part 32	-
33	-	1	Part 33	-
34	-	1	Part 34	-
35	-	1	Part 35	-
36	-	2	Part 36	-
37	-	1	Part 37	-
38	AT173313	1	Shaft Kit	INCLUDES 5, 6, 36 AND 51
39	AT173321	1	Clip Kit	INCLUDES 16, 17, 20, AND 52
40	AT182954	1	Seat Shock Absorber Kit	INCLUDES 21, 28, 33, AND 34
41	AT208490	1	Selective Control Valve	INCLUDES 19, 22, 24, AND 26
42	-	1	Part 45	Seat Air Compressor, (Female 5/32 in)
42	-	1	Part 48	Nylon, 5/32in OD, (6ft)
42	-	1	Part 47	90 Deg, 1/8in NPT Male x 5/32in OD
42	-	1	Part 46	Connector, Male 5/32in OD Tube
42	-	5	Part 44	-
42	-	1	Part 43	For Plastic Tubing
42	AT407903	1	Fitting Kit	INCLUDES 2, 4, AND 7
43	AT209469	1	Bumper	INCLUDES 11, 35 AND 37
44	-	1	Part 50	-
45	-	1	Part 51	-
46	-	1	Part 52	-
47	-	4	Part 53	-
51	-	2	Part 54	-
52	-	6	Part 55	-
53	-	1	Part 56	-
54	-	2	Part 57	-
55	-	2	Part 58	-
56	AT410247	1	Compressor Kit	SUB FOR AT400360 OR AT198869

Air Suspension Seat Base ( - 646523)

Нет текстового описания
