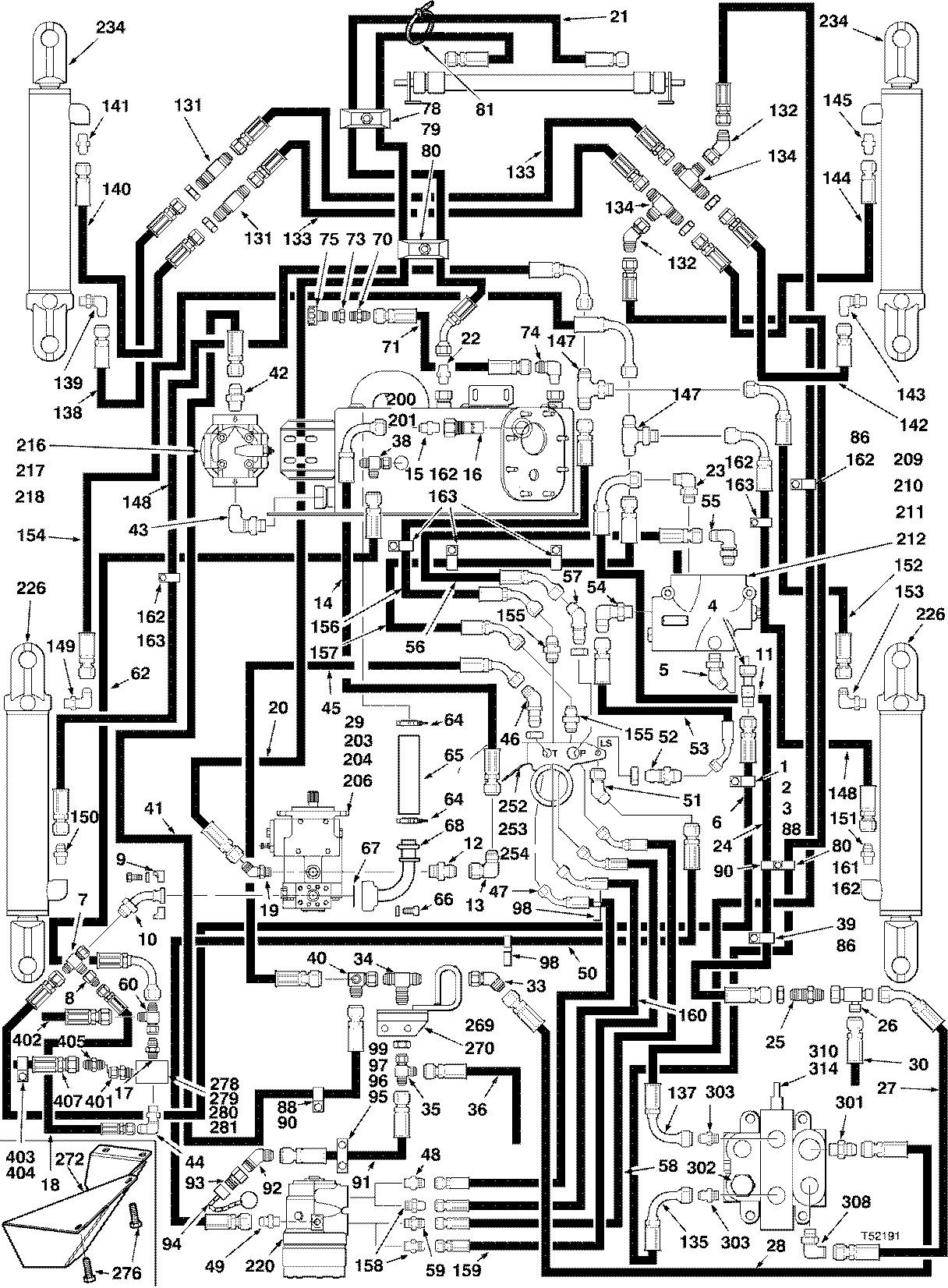

HYDRAULIC SYSTEM POWER FRAME GRAPPLE D/A ( 10EB1402 - ) 2000-514/10 [2000-514/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F286248	1	BRACKET -	-
2	811699300	1	SCREW*M10X1.50-20 -	-
3	811708800	1	CLAMP -	-
4	F121133	1	FITTING, SPECIAL -	-
5	810368600	1	ELBOW-45 DEG. -	-
6	F122654	1	HOSE-HYD* .75 X 55 -	-
7	810399600	1	TEE	-
8	811898400	1	Adapter Fitting	-
9	811168000	1	FLANGE KIT -	-
10	811945900	1	ELBOW-45 DEG. -	-
11	811889200	1	PLUG -	-
12	810115800	1	FITTING 3/4 MJIC 3/4	-
13	810447100	1	ELBOW-90 DEG. -	-
14	811982200	1	HOSE-HYD*.75 X 18 -	-
15	810074600	1	CONNECTOR	-
16	F120241	1	VALVE - CHECK	-
17	810862800	1	ADAPTER -	-
18	811409300	1	HOSE-HYD*0.25X19 -	-
19	810368600	1	ELBOW-45 DEG. -	-
20	F122760	1	HOSE	-
21	F122761	1	HOSE	-
22	810298900	1	FITT MALE.1.063/1063 -	-
23	811437600	1	ELBOW-90 -	-
24	F122560	1	HOSE-SPECIAL -	-
25	811634100	1	ADAPTER -	-
26	811697300	1	TEE -	-
27	F122286	1	Hydraulic Hose	-
28	F122806	1	HOSE-HYD* .75 X 36 -	-
29	F296106	1	BRACKET -	-
30	F122377	1	HOSE-HYD*.75X38 -	-
33	810397000	1	ELBOW - 45 DEG	-
34	810799200	1	Tee Fitting	-
35	810399500	1	TEE -	-
36	F122285	1	HOSE-HYD*.75X31 -	-
39	700579500	1	Clamp	-
40	F122437	1	TEE -	-
41	F122293	1	HOSE-HYD*.75X112 -	-
42	811195500	1	ADAPTER -	-
43	810236000	1	ELBOW-90 DEG. -	-
44	810917500	1	Elbow Fitting	-
45	F121216	1	HOSE-HYD*.50 X 43 -	-
46	810466500	1	ELBOW-45 DEG.	-
47	F122253	1	HOSE-HYD*.50X44 -	-
48	810070000	1	FITTING 1/2 MJIC 1/2	-
49	810057600	1	ELBOW-90 DEG. -	-
50	F122790	1	HOSE-HYD* .25 X 46 -	-
51	810609500	1	ELBOW 45 DEG. -	-
52	810685800	1	ADAPTER -	-
53	F121235	1	HOSE-HYD*.25 X 23 -	-
54	810057600	1	ELBOW-90 DEG. -	-
55	810554400	1	ELBOW-90 DEG. -	-
56	F122118	1	HOSE-HYD* .75X39 -	-
57	810566100	1	ELBOW-45 DEG. - BULKHEAD	-
58	F121242	1	HOSE-HYD*.75 X 43 -	-
59	810432200	1	FITTING -	-
60	810915700	1	TEE -	-
62	F122530	1	HOSE-HYD* .25 X 56 -	-
63	810273500	1	Elbow Fitting	-
64	700580500	2	CLAMP -	-
65	826999100	1	HOSE -	-
66	810082200	4	BOLT*1/2-13UNCX1-1/4	-
67	810694900	1	O-RING -	-
68	811871700	1	ELBOW-90 DEG. -	-
70	810578200	1	FITTING*.25/.438-20	-
71	811684900	1	HOSE-HYD*0.25X26 -	-
73	810850100	1	Adapter Fitting	-
74	810273500	1	Elbow Fitting	-
75	F120560	1	CAP -	-
78	F122111	2	CLAMP -	-
79	F122110	2	PLATE -	-
80	810102500	2	BOLT*5/16-18CX2-1/4	-
81	810654700	1	TIE STRAP -	-
86	811707100	2	LOCKNUT*M12X1.75 -	-
88	811707000	2	LOCKNUT*M10X1.50 -	-
89	811699400	2	SCREW*M10X1.50-25mm -	-
90	810771900	3	Clamp	-
91	F122374	1	HOSE-HYD*.75X22 -	-
92	810347700	1	ELBOW 45 DEG	-
93	F122791	1	Coupling	-
94	F122793	1	Cap	-
95	F120713	1	CLAMP -	-
96	810080800	2	BOLT*3/8-16UNCX2-3/4	-
97	811989400	1	Plate	-
98	810402100	2	TIE WRAP -	-
99	810309800	4	FLAT WASHER 3/8 - HARDENED	-
131	810328400	2	ADAPTER -	-
132	810466600	2	FITTING-45 DEG.	-
133	F122271	2	HOSE-HYD*.50X29 -	-
134	811993200	2	TEE - BULKHEAD	-
135	F122246	1	HOSE-HYD*.50X99 -	-
137	F122247	1	HOSE-HYD*.50X95 -	-
138	812000300	1	HOSE-HYD*.50 X 57 -	-
139	810292900	1	ELBOW-90 DEG. -	-
140	811806600	1	HOSE-HYD*0.5X77 -	-
141	810490900	1	FITTING 1/2 MJIC 3/4 -	-
142	811922300	1	HOSE-HYD*.500X61 -	-
143	810292900	1	ELBOW-90 DEG. -	-
144	812000400	1	HOSE-HYD*.50 X 81 -	-
145	810490900	1	FITTING 1/2 MJIC 3/4 -	-
147	811993200	2	TEE - BULKHEAD	-
148	F121233	2	HOSE-HYD*.50 X 59 -	-
149	810292900	1	ELBOW-90 DEG. -	-
150	810490900	1	FITTING 1/2 MJIC 3/4 -	-
151	810490900	1	FITTING 1/2 MJIC 3/4 -	-
152	F121248	1	HOSE-HYD*.50 X 28 -	-
153	810292900	1	ELBOW-90 DEG. -	-
154	F122116	1	HOSE-HYD* .50X28 -	-
155	810348700	2	FITTING -	-
156	F121236	1	HOSE-HYD*.50 X 40 -	-
157	F122117	1	HOSE-HYD* .50X81 -	-
158	810070000	2	FITTING 1/2 MJIC 1/2	-
159	F122254	1	HOSE-HYD*.50X45 -	-
160	F122255	1	HOSE-HYD*X50X48 -	-
161	811707100	2	LOCKNUT*M12X1.75 -	-
162	F004423	8	Hose Clamp	-
163	811699200	5	SCREW*M10X1.50-16 -	-
200	-------	1	O-RING	-
201	-------	1	O-RING	-
203	840779100	1	SEALANT-SILICONE	-
204	-------	1	O-RING	-
206	811703700	2	SCREW*M16X2.00-40mm -	-
209	811937100	1	VALVE - PRIORITY	-
210	810956900	2	BOLT*M8X1.25-90 -	-
211	811706900	2	LOCKNUT*M8X1.25 -	-
212	810309800	2	FLAT WASHER 3/8 - HARDENED	-
216	F123155	1	FILTER -	-
217	840035800	4	BOLT*3/8-16UNCX7/8 -	-
218	810309800	4	FLAT WASHER 3/8 - HARDENED	-
220	-------	1	O-RING	-
226	-------	2	O-RING	-
234	-------	2	O-RING	-
252	F289667	1	BRACKET -	-
253	811314500	4	BOLT*M12X1.75-45 -	-
254	810011600	4	WASHER*1/2	-
269	F289411	1	BRACKET -	-
270	811699300	2	SCREW*M10X1.50-20 -	-
272	F289740	1	PLATE -	-
276	811699400	4	SCREW*M10X1.50-25mm -	-
278	F122554	1	VALVE -	-
279	F295968	1	BRACKET -	-
280	811934900	2	BOLT*M6X1.00-45 -	-
281	810878100	2	WASHER*1/4	-
301	810270000	1	FITTING*METRIC -	-
302	810381800	1	PLUG	-
303	810490900	2	FITTING 1/2 MJIC 3/4 -	-
308	811437600	1	ELBOW-90 -	-
310	811701600	3	SCREW*M12X1.75-40 -	-
314	-------	1	O-RING	-
401	811166500	1	FITTING -	-
402	F122339	1	HOSE-HYD*.25X94 -	-
403	811707000	1	LOCKNUT*M10X1.50 -	-
404	F121081	1	Clamp	-
405	F122289	1	Check Valve	-
407	F122373	1	HOSE-HYD*.25X88 -	-
-	F435201	1	ELEMENT -	-
-	842816700	1	SENDER -	-
-	841732700	1	INDICATOR KIT -	-
