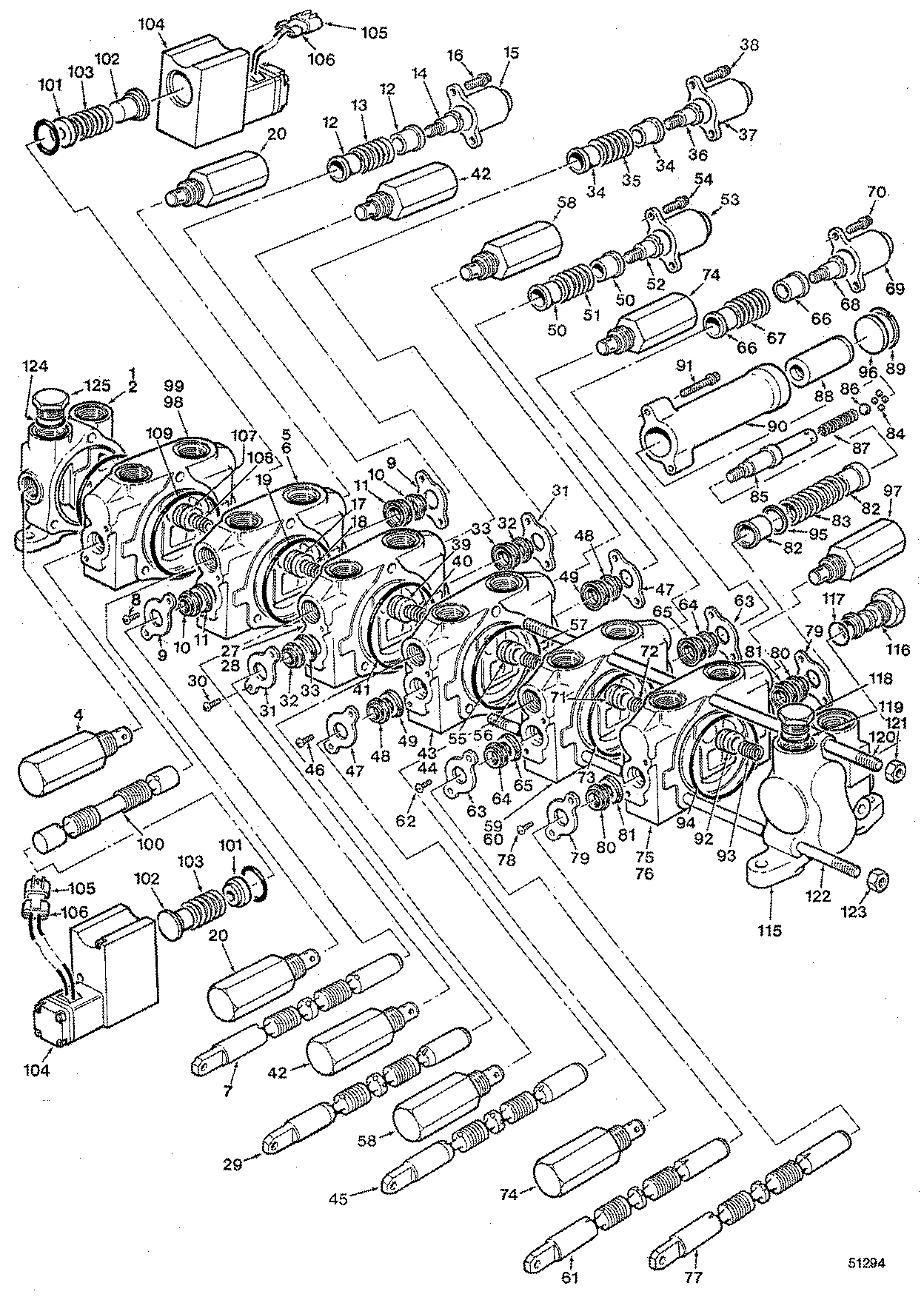

VALVE ASSEMBLY 6 SPOOL CONTROL MAIN SWING BOOM ( 974669 - 10EB1276) 2481-044/10 [2481-044/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F433405	1	SECTION - INLET	-
2	-------	1	O-RING	-
3	-------	1	O-RING	-
4	843103500	1	VALVE-RELIEF - (3375 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
5	842934600	1	SECTION - DOZER	-
6	-------	1	O-RING	-
7	-------	1	O-RING	-
8	840083800	2	SCREW -	-
9	840081600	2	PLATE -	-
10	-------	2	O-RING	-
11	-------	2	O-RING	-
12	840081700	2	SEAT - SPRING	-
13	842934900	1	SPRING -	-
14	840081800	1	BOLT - SPECIAL	-
15	840081500	1	CAP -	-
16	790107200	2	SCREW -	-
17	842657600	1	POPPET - C.V	-
18	842656200	1	SPRING -	-
19	-------	1	O-RING	-
20	843103400	2	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
27	842934600	1	SECTION - DOZER	-
28	-------	1	O-RING	-
29	-------	1	O-RING	-
30	840083800	2	SCREW -	-
31	840081600	2	PLATE -	-
32	-------	2	O-RING	-
33	-------	2	O-RING	-
34	840081700	2	SEAT - SPRING	-
35	842934900	1	SPRING -	-
36	840081800	1	BOLT - SPECIAL	-
37	840081500	1	CAP -	-
38	790107200	2	SCREW -	-
39	842657600	1	POPPET - C.V	-
40	842656200	1	SPRING -	-
41	-------	1	O-RING	-
42	843103400	2	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
43	842934600	1	SECTION - DOZER	-
44	-------	1	O-RING	-
45	-------	1	O-RING	-
46	840083800	2	SCREW -	-
47	840081600	2	PLATE -	-
48	-------	2	O-RING	-
49	-------	2	O-RING	-
50	840081700	2	SEAT - SPRING	-
51	842934900	1	SPRING -	-
52	840081800	1	BOLT - SPECIAL	-
53	840081500	1	CAP -	-
54	790107200	2	SCREW -	-
55	842657600	1	POPPET - C.V	-
56	842656200	1	SPRING -	-
57	-------	1	O-RING	-
58	F433591	2	VALVE-RELIEF - (2000 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
59	842934600	1	SECTION - DOZER	-
60	-------	1	O-RING	-
61	-------	1	O-RING	-
62	840083800	2	SCREW -	-
63	840081600	2	PLATE -	-
64	-------	2	O-RING	-
65	-------	2	O-RING	-
66	840081700	2	SEAT - SPRING	-
67	842934900	1	SPRING -	-
68	840081800	1	BOLT - SPECIAL	-
69	840081500	1	CAP -	-
70	790107200	2	SCREW -	-
71	842657600	1	POPPET - C.V	-
72	842656200	1	SPRING -	-
73	-------	1	O-RING	-
74	843103400	2	VALVE-RELIEF - (3225 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
75	843107400	1	SECTION - TONGS	-
76	-------	1	O-RING	-
77	-------	1	O-RING	-
78	840083800	2	SCREW -	-
79	840081600	2	PLATE -	-
80	-------	2	O-RING	-
81	-------	2	O-RING	-
82	843107500	2	SEAT -	-
83	843107600	1	SPRING -	-
84	842858600	4	BALL	-
85	843107700	1	DETENT PIN -	-
86	842935200	1	BALL - SPRING	-
87	842935600	1	SPRING -	-
88	843107800	1	SLEEVE - SPRING -	-
89	843107900	1	RETAINING RING -	-
90	843108600	1	CAP - SPOOL -	-
91	790107200	2	SCREW -	-
92	842657600	1	POPPET - C.V	-
93	842656200	1	SPRING -	-
94	-------	1	O-RING	-
95	843108400	1	SHIM -	-
96	843108500	1	SPACER -	-
97	843108000	1	VALVE-RELIEF - (3600 PSI)	Refer to Page: SKIDDER, LOG\560C SKIDDER, LOG\560C - 60-SERIES (Timberjack < 2000)\GRAPPLE\GRAPPLE ASSY ESCO 104`` ( 10EC1079 - ) 4321-029/10
98	F433407	1	VALVE SECTION - ROTATE	-
99	-------	1	O-RING	-
100	-------	1	O-RING	-
101	F433408	2	SEAT - SPRING -	-
102	F433409	2	SEAT - SPRING -	-
103	F433410	2	SPRING -	-
104	F433411	2	EHP ASSY	-
105	F433412	2	CONNECTOR - MALE -	-
106	F433413	2	PLUG - LOCKING -	-
107	842657600	1	POPPET - C.V	-
108	842656200	1	SPRING -	-
109	---------	1	FELLING HEAD	-
115	842852000	1	SECTION - OUTLET	-
116	842851500	1	PLUG -	-
117	842851600	1	O-RING -	-
118	840083500	1	PLUG*1-1/16-12 -	-
119	-------	1	O-RING	-
120	843134700	1	ROD -	-
121	810087800	2	NUT*1/2-20UNF	-
122	843134800	2	ROD -	-
123	810114200	4	NUT*7/16-20UNF	-
124	-------	1	O-RING	-
125	F432158	1	Plug	-
-	F121317	1	VALVE - CONTROL (6 SPOOL)	-
-	F433600	1	KIT*SEAL - K	-

VALVE ASSEMBLY 6 SPOOL CONTROL MAIN SWING BOOM ( 974669 - 10EB1276) 2481-044/10 [2481-044/10]
