Открытый узел

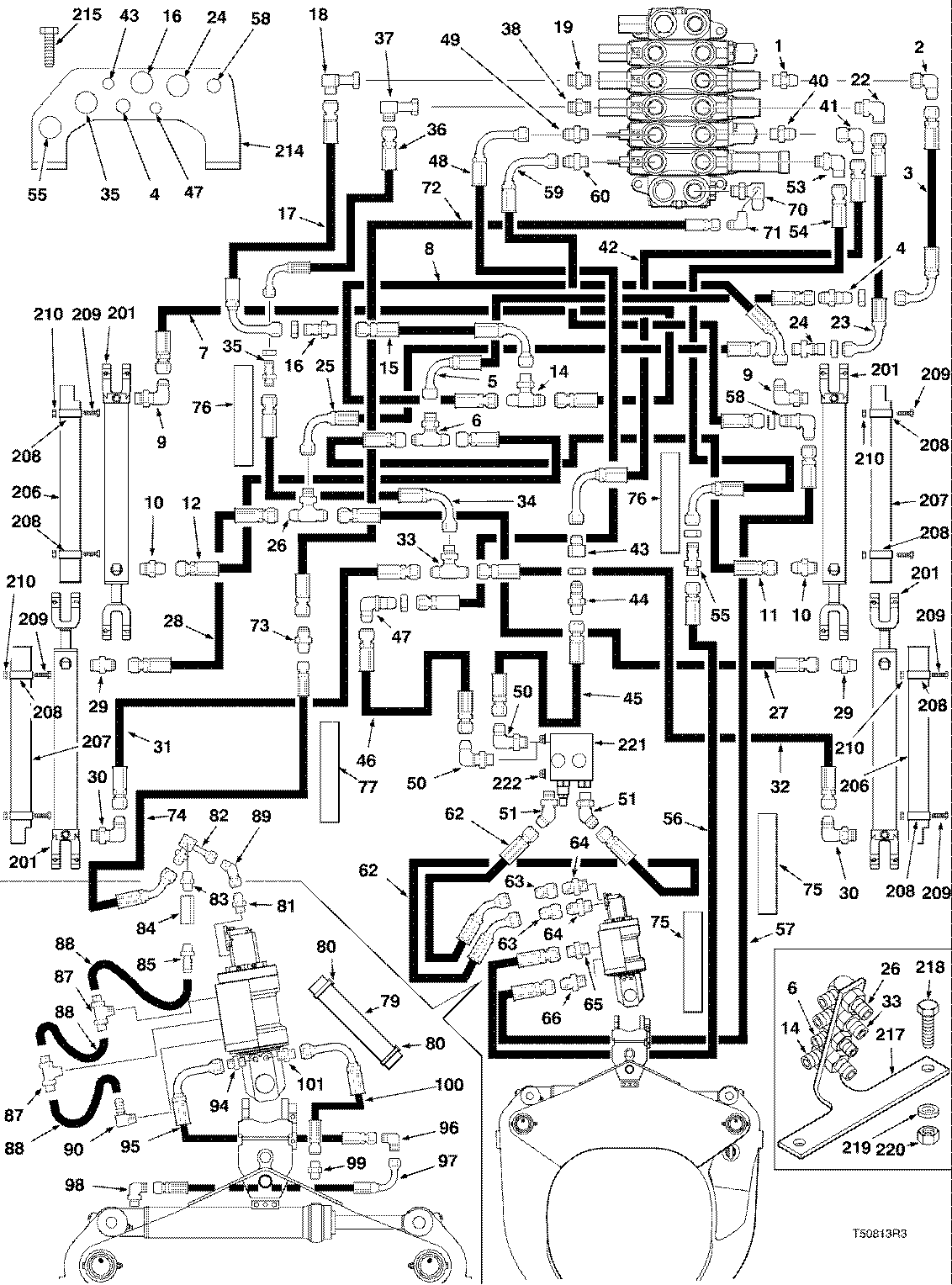

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ105`` ( CE2001 - 962771) 2000-305/10 [2000-305/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	810490900	1	FITTING 1/2 MJIC 3/4 -	-
2	810433800	1	ELBOW-90 DEG.	-
3	811779600	1	HOSE-HYD*0.5X36 -	-
4	810328400	1	ADAPTER -	-
5	811782000	1	HOSE-HYD*0.5X72	-
6	810787500	1	TEE	-
7	811247300	1	HOSE-HYD*0.5X68 -	-
8	F120279	1	HOSE-HYD*.50 X 68 - (660)	-
9	810292900	2	ELBOW-90 DEG. -	-
10	810490900	2	FITTING 1/2 MJIC 3/4 -	-
11	811249400	1	HOSE-HYD*0.5X97 -	-
12	811249400	1	HOSE-HYD*0.5X97 -	-
14	827318000	1	TEE-SPECIAL -	-
15	F120227	1	HOSE-HYD*.75X72 -	-
16	811634100	1	ADAPTER -	-
17	811957800	1	HOSE-HYD*.75 X 40 -	-
18	811730800	1	ELBOW-90 DEG. -	-
19	811439600	1	ADAPTER -	-
22	811437600	1	ELBOW-90 -	-
23	811844700	1	HOSE-HYD* .75 X 34 -	-
24	811634100	1	ADAPTER -	-
25	811992100	1	HOSE-HYD*.75 X 70	-
26	827318000	1	TEE-SPECIAL -	-
27	810935000	1	HOSE-HYD*0.50X52	-
28	810935000	1	HOSE-HYD*0.50X52	-
29	810490900	2	FITTING 1/2 MJIC 3/4 -	-
30	810292900	2	ELBOW-90 DEG. -	-
31	810932500	1	HOSE-HYD*0.50X26	-
32	810932500	1	HOSE-HYD*0.50X26	-
33	827318000	1	TEE-SPECIAL -	-
34	811992100	1	HOSE-HYD*.75 X 70	-
35	811634100	1	ADAPTER -	-
36	811957900	1	HOSE-HYD*.75 X 45	-
37	811730800	1	ELBOW-90 DEG. -	-
38	811439600	1	ADAPTER -	-
40	810425400	1	FITTING 3/8 MJIC 3/4	-
41	810335500	1	ELBOW-90 DEG. -	-
42	811844500	1	HOSE-HYD* .38 X 40	-
43	811842000	1	FITTING MJIC/FJIC	-
44	810269500	1	ADAPTER	-
45	811245000	1	HOSE-HYD*0.38X175 -	-
46	811245000	1	HOSE-HYD*0.38X175 -	-
47	810285600	1	ELBOW-90 DEG. -	-
48	811844500	1	HOSE-HYD* .38 X 40	-
49	810425400	1	FITTING 3/8 MJIC 3/4	-
50	810280500	2	ELBOW-90 DEG. -	-
51	810564700	2	ELBOW-45 DEG. -	-
53	811437600	1	ELBOW-90 -	-
54	811976900	1	HOSE-HYD*.75X44 -	-
55	811634100	1	ADAPTER -	-
56	811274400	1	HOSE-HYD* .75 X 190``	-
57	811251000	1	HOSE-HYD*0.5X190 - B2-MAIN LIFT	-
58	810372600	1	ELBOW-90 DEG.	-
59	811923700	1	Hydraulic Hose	-
60	810490900	1	FITTING 1/2 MJIC 3/4 -	-
62	F120237	2	HOSE-HYD* .38 X 22 -	-
63	810749600	2	FITTING MJIC/FJIC	-
64	810270000	2	FITTING*METRIC -	-
65	811439600	1	ADAPTER -	-
66	810490900	1	FITTING 1/2 MJIC 3/4 -	-
70	F280312	1	ELBOW REWORK -	-
71	810189400	1	ELBOW-90 DEG.	-
72	811983700	1	HOSE-HYD*.38 X 90 -	-
73	810630200	1	FITTING -	-
74	F120232	1	HOSE-HYD*.38 X 170 -	-
75	F277978	2	SLEEVE -	-
76	F277977	2	SLEEVE - 30``	-
77	F277976	2	SLEEVE - 40``	-
79	826791300	1	SLEEVE -	-
80	810402100	2	TIE WRAP -	-
81	810887400	1	FITTING -	-
82	826312100	1	ELBOW	-
83	811131500	1	NIPPLE	-
84	811160400	1	VALVE-CHECK	-
85	811172000	1	FITTING -	-
87	811204500	2	FITTING-TEE -	-
88	826311900	3	HOSE -	-
89	811675600	1	ELBOW-45 DEG.	-
90	811172100	1	ELBOW -	-
94	811439600	1	ADAPTER -	-
95	811957800	1	HOSE-HYD*.75 X 40 -	-
96	811732700	1	ELBOW-90 DEG. -	-
97	F120922	1	HOSE-HYD*.75 X 30 -	-
98	811437600	1	ELBOW-90 -	-
99	811439600	1	ADAPTER -	-
100	F120274	1	HOSE-HYD*.75 X 37 -	-
101	811439600	1	ADAPTER -	-
201	-------	4	O-RING	-
206	827072400	2	COVER -	-
207	827061900	2	COVER -	-
208	826906300	8	BAND -	-
209	811700900	8	SCREW*M10X1.50-110 -	-
210	811268300	8	LOCKNUT*M10X1.5 -	-
214	F277682	1	BRACKET -	-
215	811703600	2	SCREW*M16X2.00-35	-
217	F277683	1	BRACKET -	-
218	811181400	2	BOLT*M20X2.50-50 -	-
219	810183200	2	Washer	-
220	811337100	2	NUT*M20X2.50 -	-
221	F122355	1	VALVE -	-
222	811706900	2	LOCKNUT*M8X1.25 -	-
-	F435504	1	SEAL KIT -	-

HYDRAULIC SYSTEM CARR. FRAME GRAPPLE D/A TJ105`` ( CE2001 - 962771) 2000-305/10 [2000-305/10]

Нет текстового описания
